If the following error codes appear on the screen, check the corresponding items in the table.

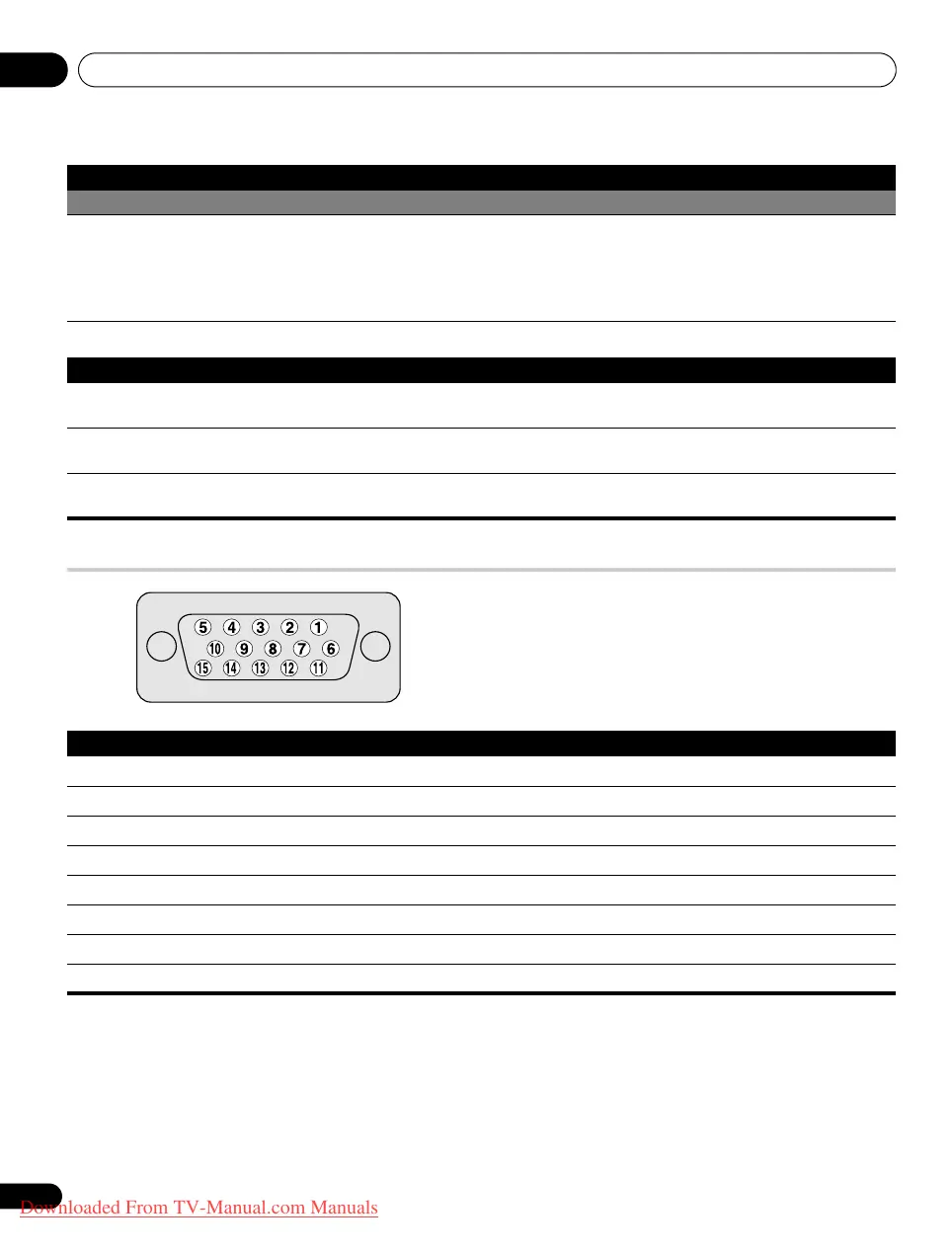

Signal names for 15-pin mini D-sub connecter
OTHER
• POWER ON indicator or
STANDBY indicator is quickly
flashing.
• Internal protective circuits may have been activated. First turn a off on the flat screen TV, wait one
minute or more, then switch the power on again by turning a on. If the indicator is still flashing,
unplug the flat screen TV’s power cord from the power outlet. Wait one to two minutes then plug
in the flat screen TV again. If this does not solve the problem, contact a Pioneer Service Center.
These are listed on your warranty card for each country. Alternatively, check the Pioneer Web site
(see back cover) for contact details.
Code Message Check
SD04 Powering off. Internal temperature is too high.
Check temperature around the display.
Check if the ambient temperature of the flat screen TV is high.
SD05 Internal protection circuits turning power OFF.
Possible short in the speaker cable.
Check the speaker cable connections between the flat screen
TV and the speakers.
SD11 Powering off. Internal temperature is too high.
Check temperature around TV.
Check if the ambient temperature of the flat screen TV is high.
Problem Possible solution
Pin No. Signal name Pin No. Signal name
1R 9+5 V
2G 10GND (ground)
3 B 11 Not connected
4Not connected 12SDA
5Not connected 13HD
6GND (ground) 14VD
7GND (ground) 15SCL
8GND (ground)
PDP-LX609H.book Page 104 Wednesday, August 6, 2008 4:00 PM
Downloaded From TV-Manual.com Manuals

Pioneer PDP-LX6090H Specifications

General

Depth	93 mm
Width	1465 mm
Height	876 mm
Weight	51200 g
Tuner type	Analog & digital
Pixel pitch	- mm
Aspect ratio	-
Product color	Black
Noise reduction	Yes
RMS rated power	36 W
Display diagonal	60 \
Display brightness	- cd/m²
Display technology	Plasma
Number of speakers	2
Teletext standards	Top-text
HDMI ports quantity	3
Supported video modes	1080p
USB 2.0 ports quantity	1
Audio formats supported	AC3, HE-AAC
Number of OSD languages	18
S-Video inputs quantity	0
Video formats supported	MPEG2, MPEG4
Annual energy consumption	- kWh
Analog signal format system	PAL BG, PAL DK, PAL I, SECAM B/G, SECAM D/K, SECAM L
Power consumption (standby)	0.4 W
Power consumption (typical)	524 W
Digital signal format system	DVB-S, DVB-S2, DVB-T
Sound enhancement technology	SRS WOW HD, SRS, FOCUS, TruBass, SRS Definition
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
On Screen Display (OSD) languages	CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, GRE, HUN, ITA, NOR, POR, RUS, SWE, TUR, UKR
Consumer Electronics Control (CEC)	Kuro Link
