Part names04
14
En

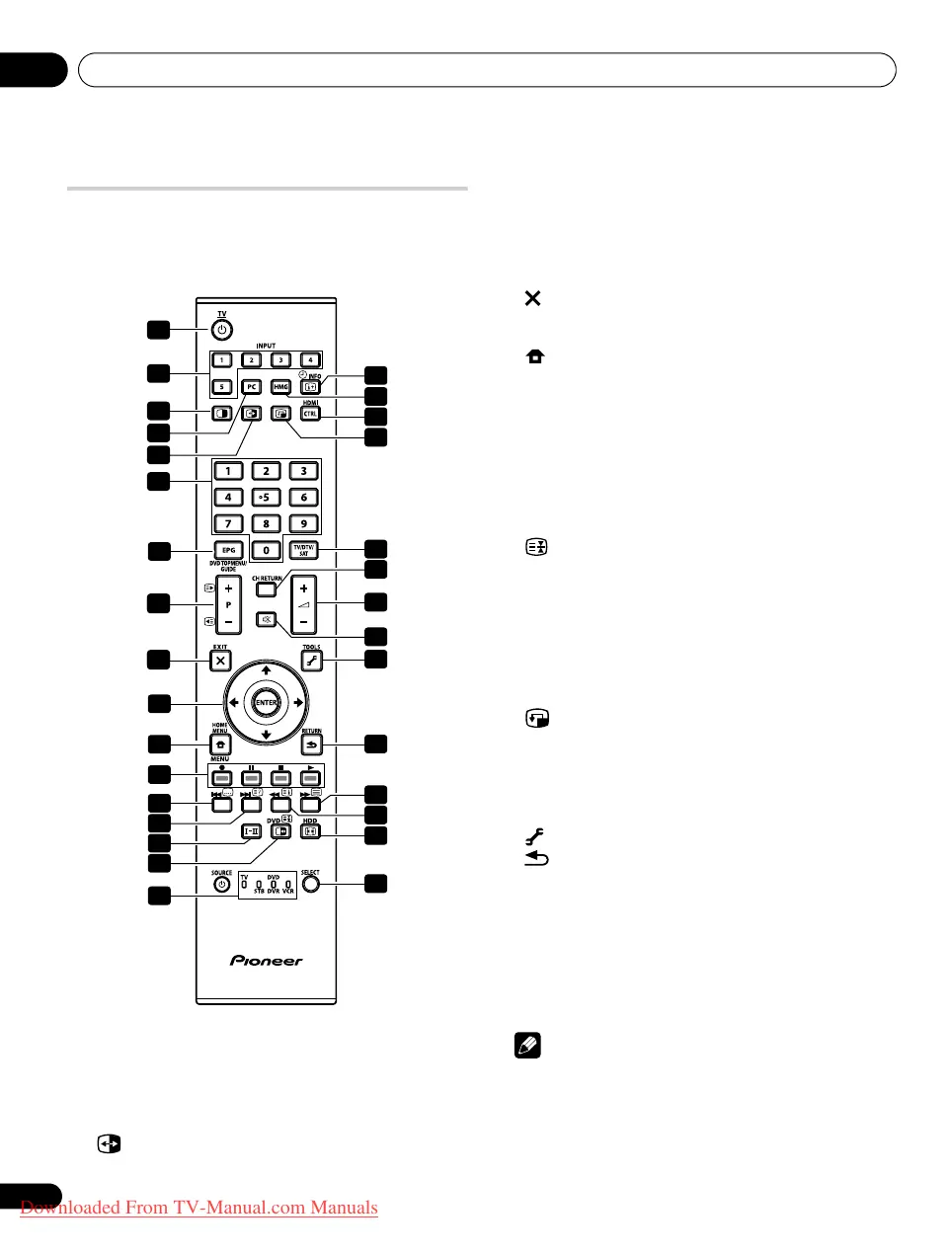

Remote control unit
This section describes the functions of the buttons available when
the TV mode has been selected by using the SELECT button. For the
buttons controlling other equipment, see Controlling other
equipment using the supplied remote control unit starting from
page 86.
1 TV : Turns on the power to the flat screen TV or places it
into the standby mode.
2 INPUT: Selects an input source of the flat screen TV. (“INPUT
1”, “INPUT 2”, “INPUT 3”, “INPUT 4”, “INPUT 5”)
3 c: Switches the screen mode among 2-screen, picture-in-
picture, and single-screen.
4PC: Selects the PC terminal as an input source.
5: Switches between the two screens when in the 2-screen
or picture-in-picture mode.
60 to 9: TV/External input mode: Selects a channel.
Teletext mode: Selects a page.
Turns the power on when the STANDBY indicator lights red.
7 EPG: Displays the Electronic Programme Guide in DTV/SAT
(Satellite) input mode.
8P+/P–: TV/External input mode: Selects a channel.
w/x: Teletext mode: Selects a page.
9EXIT: Returns to the normal screen in one step.
10 ///: Selects a desired item on the setting screen.
ENTER: Executes a command.
11 HOME MENU: Displays the HOME MENU screen.
12 Colour (RED/GREEN/YELLOW/BLUE):
Controls a BD player for HDMI Control functions only.
13 [: Jumps to Teletext subtitle page.
Turns subtitle on and off in DTV input mode depending on the
broadcast.
14 k: Displays hidden characters.
15 g: Sets the sound multiplex mode.
16 d: TV/External input mode: Freezes a frame from a moving
image. Press again to cancel the function.
: Teletext mode: Stops updating Teletext pages. Press
again to release the hold mode.
17 TV, STB, DVD/DVR, VCR: These indicators show the
current selection and status when you control other connected
equipment, using the supplied remote control unit.
18 p y INFO: Displays the channel information.
Displays the banner information.
19 HMG (Home Media Gallery): Displays the Home
Media Gallery screen.
20 HDMI CTRL: Displays the HDMI Control menu.
21 : Moves the location of the small screen when in the
picture-in-picture mode.
22 TV/DTV/SAT: Switches the mode among TV, DTV and SAT.
23 CH RETURN: Returns to the previous channel.
24 i +/i –: Sets the volume.
25 e: Mutes the sound.
26 TOOLS: Displays the TOOLS Menu.
27 RETURN: Restores the previous menu screen.
28 m: Selects the Teletext mode (all TV image, all TEXT image,
TV/TEXT image).
29 l: Displays an Index page for the CEEFAX/FLOF format.
Displays a TOP Over View page for the TOP format.
30 f: Selects the screen size.
31 SELECT: Switches the selection among TV, STB, DVD/DVR,
and VCR, so that you can control other connected equipment,
using the supplied remote control unit.
Note
• When using the remote control unit, point it at the flat screen
TV.
