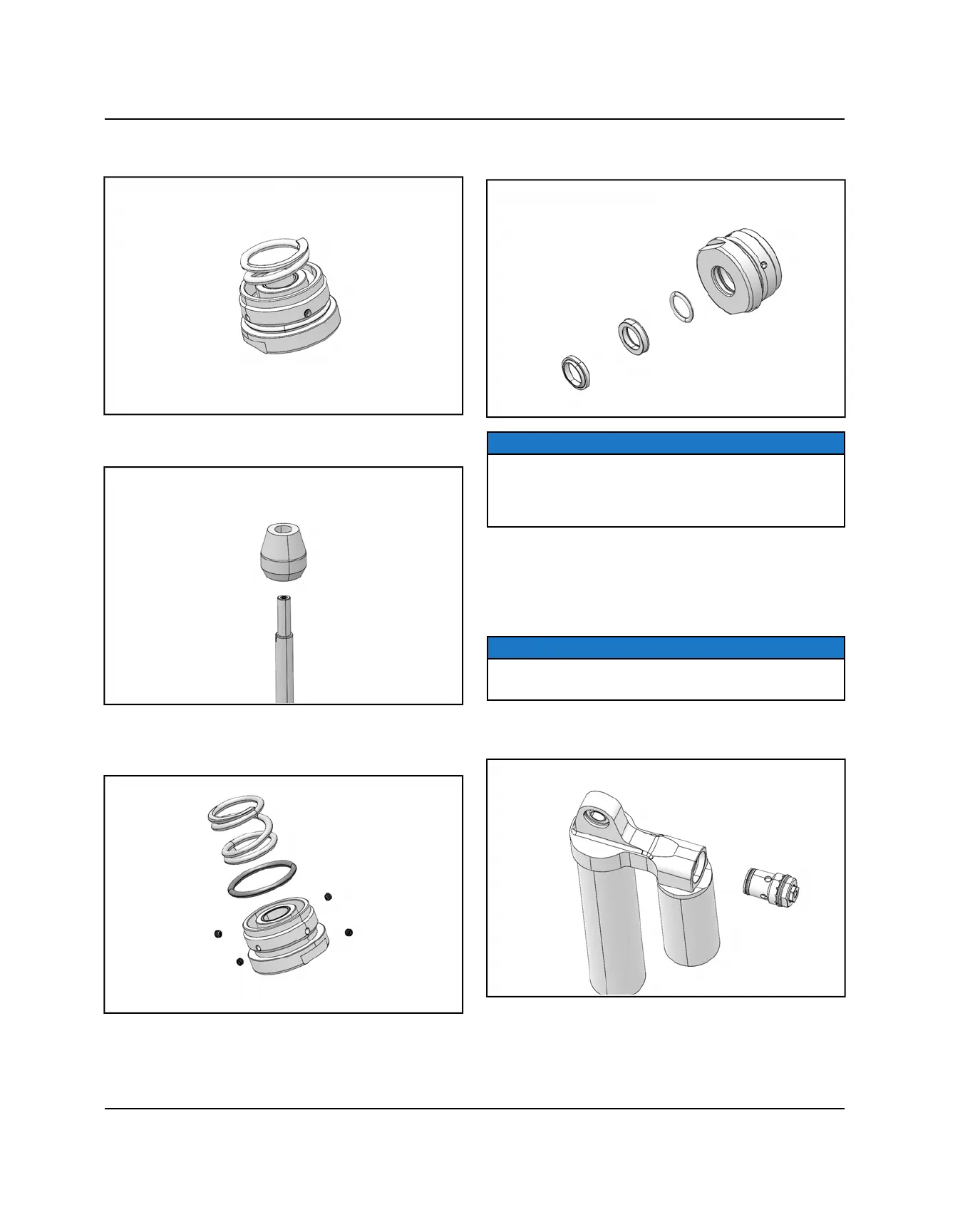

15.Remove the bearing cap assembly from the shock
rod.
16.Remove the jounce bumper. Replace if worn or
cracked.
17.Remove the bearing cap O-ring and discard. The
spring is held in place with set screws. Remove the
set screws to remove the spring.
18.Use a pick to remove the bearing cap wiper seal, U-
cup seal, and inner O-ring. Discard these parts.
NOTICE
Do not scratch the seal surfaces with the pick. The
bearing cap bushing is serviceable, but if it is damaged,
it is recommended that the bearing cap be replaced as
an assembly.
19.Inspect all components for wear and replace as
required. Clean parts with parts cleaner and blow dry
using compressed air or lint free towel.
High / Low Speed Compression Adjuster Service
NOTICE
High / Low Speed Compression Adjuster is non-
serviceable and must be serviced as an assembly.
1. Remove the compression adjuster from the shock
body / reservoir cap.
