8.16
CVT TRANSMISSION

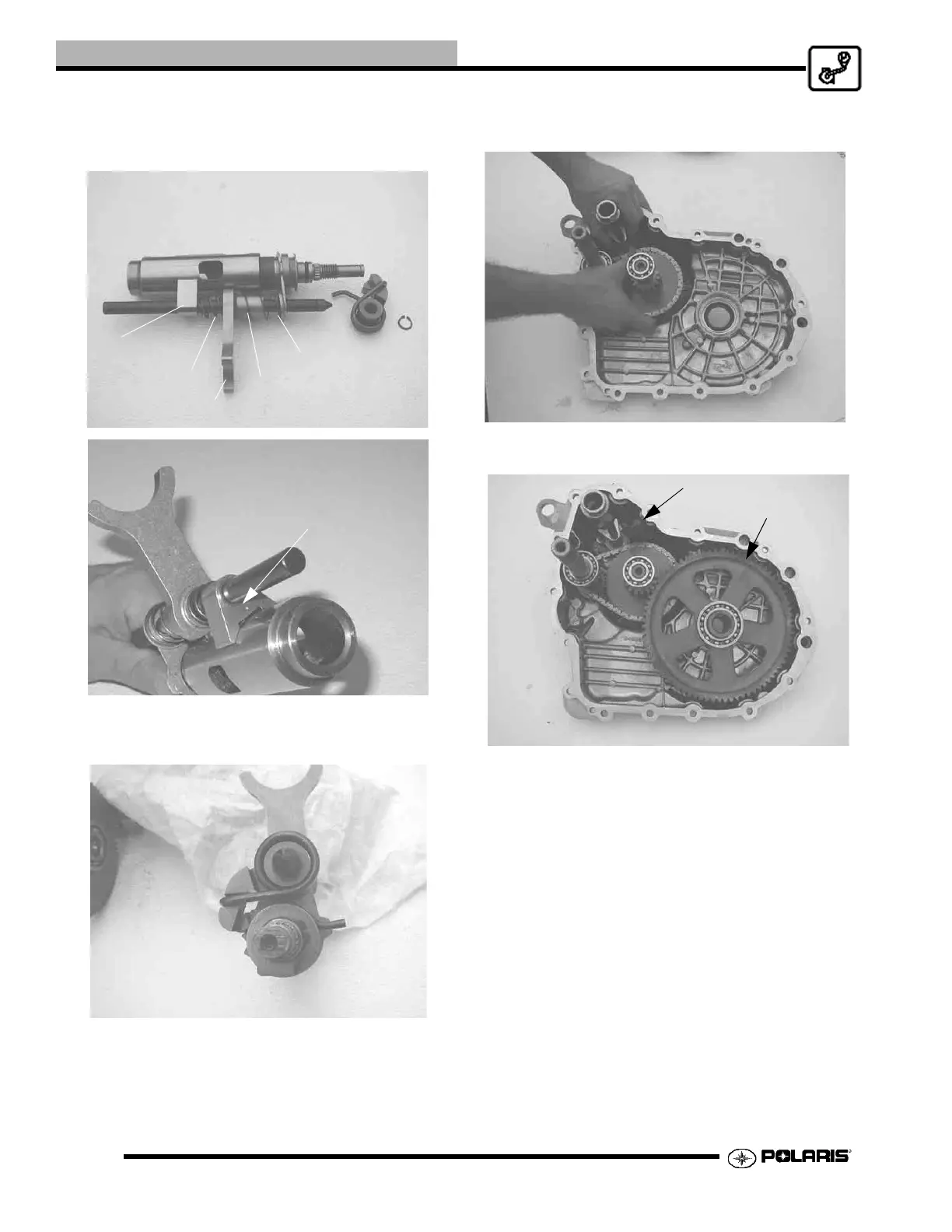

15. Slide the spring collar, large diameter spring, shift
fork, small spring, and shaft support onto the shaft.
The dot on the shaft support faces away from the fork.
16. Install the detent ratchet with spring. Install the snap
ring.
17. Assemble the shafts with chain and shift drum and
install the assembly into the case.
18. Install the output gear and oil deflector. Lubricate all
components.
Spring Collar
Large Spring
Fork
Small Spring
Shaft SupportShaft Support
DOT
Oil Deflector
Output Gear
To Next Page
