SUSPENSION LUBRICATION
Refer to Grease Lubrication Points page for
suspension lubrication.
NOTICE
There are no grease fittings on the front control arm
pivot points or the rear trailing arms.
SHOCK ADJUSTMENT
The front and rear shocks have a ride height adjustment. Suspension springs may be adjusted to suit different riding
conditions or vehicle payloads.
WARNING
Uneven adjustment may cause poor handling of the vehicle, which could result in serious injury or death. Always
adjust both the left and right spring equally.
The factory setting is appropriate for nearly all riding conditions. If desired, the spring setting may be adjusted to
maintain vehicle clearance height when carrying loads.

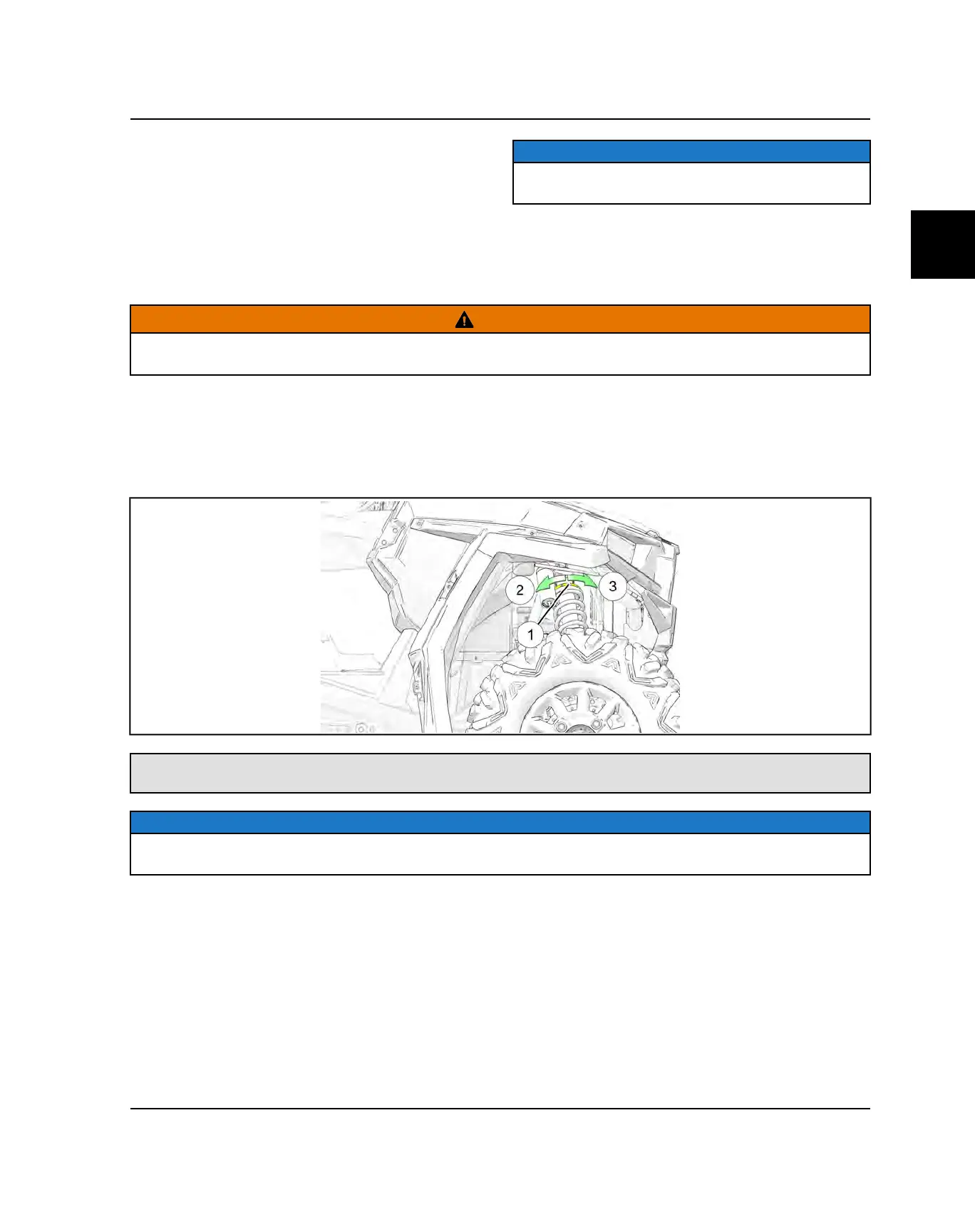

1. Raise and safely support front or rear of the vehicle off the ground to allow the suspension to fully extend.
2. Using the shock spanner/spreader tool included in the vehicle’s tool kit, turn the adjustment collar
q
to increase
w
or decrease
e
ride height.
Shock Spanner / Clutch Spreader Tool:
2878925
NOTICE
Polaris does not recommend increasing the spring adjustment beyond the guidelines in the preload adjustment chart
as it may negatively impact vehicle stability.
MAINTENANCE
