SWITCHES / CONTROLS
HEADLAMP SWITCH
1. Disconnect the headlamp switch harness by
depressing the connector locks and pulling on the
connector. Do not pull on the wiring.

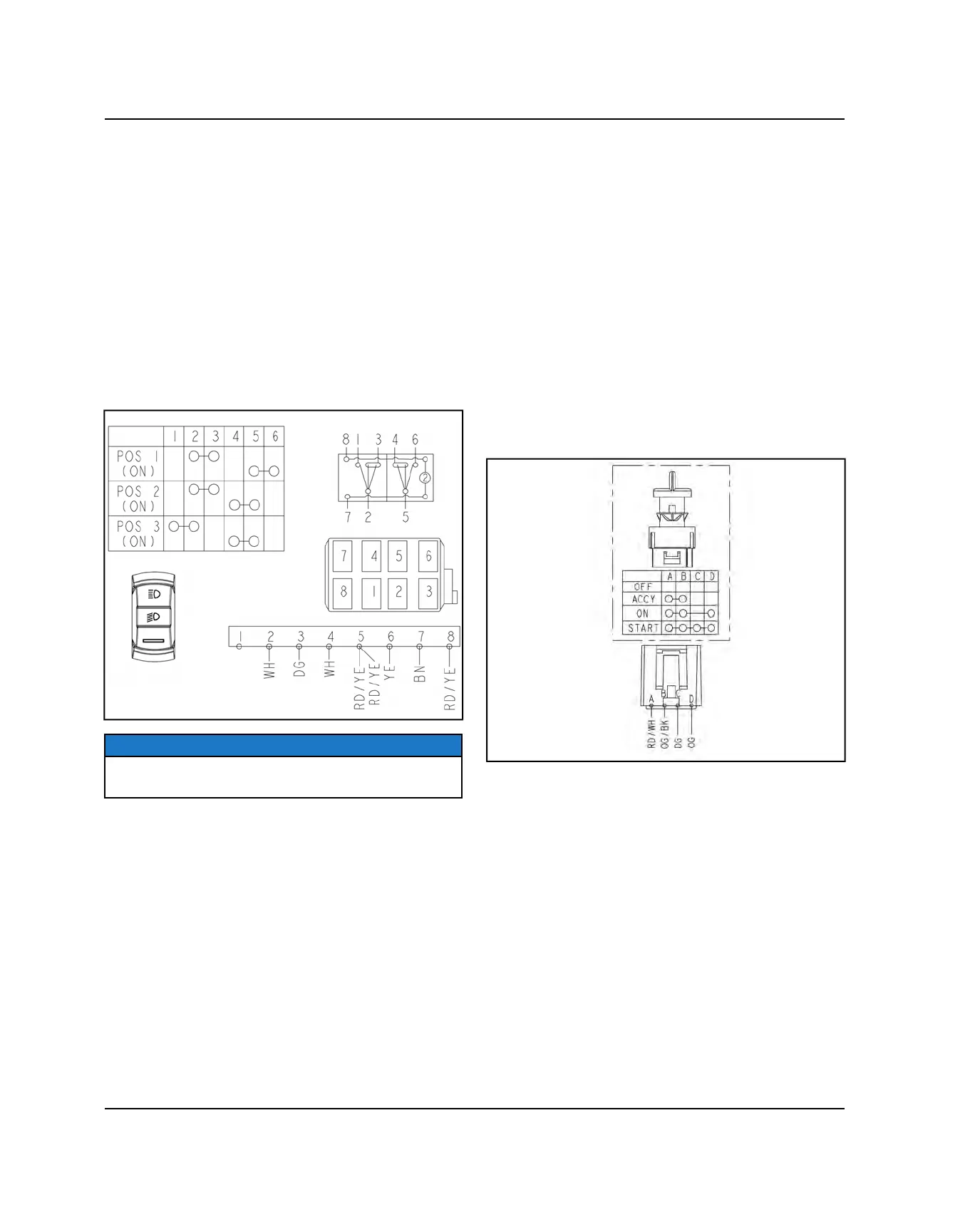

2. Test between the 3 sets of outputs (OFF / LOW /
HIGH). If any of the tests fail, replace headlamp
switch assembly.
• Move the switch to HIGH. There should be continuity
between switch pins 2 and 3; 5 and 6; 7 and 8.
• Move the switch to LOW. There should be continuity
between switch pins 2 and 3; 4 and 5; 7 and 8..
• Move the switch to OFF. There should be continuity
between switch pins 1 and 2; 4 and 5; 7 and 8.
NOTICE
Pins 7 and 8 provide power and ground to light the
switch lamp.
IGNITION / KEY SWITCH
1. Disconnect the key switch harness by depressing the
connector lock and pulling on the connector. Do not
pull on the wiring.
2. Test between the 4 sets of outputs (OFF / ACCY / ON
/ START). If any of the tests fail, replace ignition
switch assembly.
• In the OFF position, there should be no continuity
between any of the pins.
• Turn the key to ACCY position. There should be
contunity between switch pins A and B.
• Turn the key to ON position. There should be
continuity between switch pins A, B and D.
• Turn the key to START position. There should be
continuity between all the pins on the switch.
