2021 DRIVE CLUTCH SERVICE

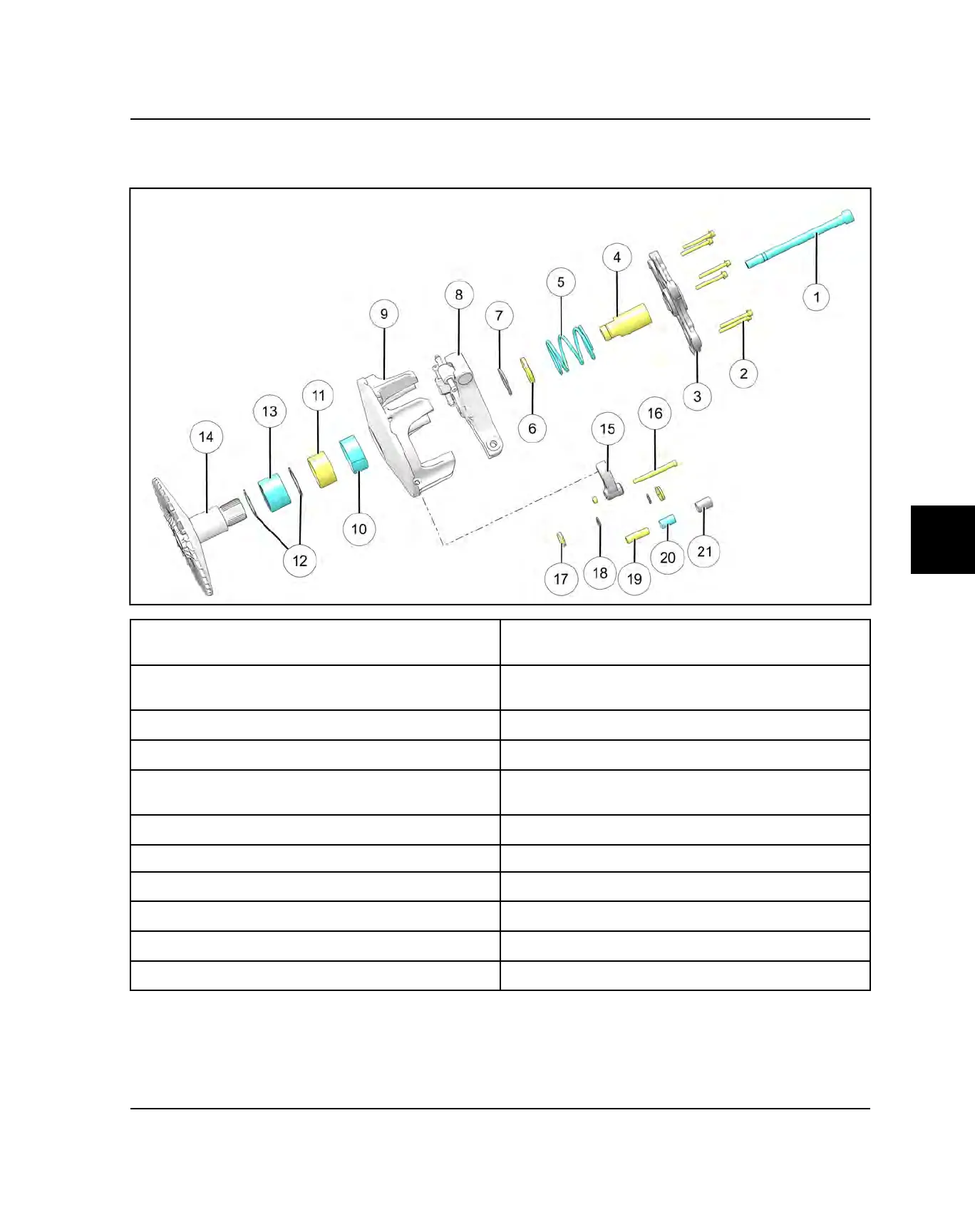

DRIVE CLUTCH ASSEMBLY VIEW (2021)
q
Clutch Bolt
140 ft-lbs (190 Nm)
d
Washer
w
Drive Clutch Cover Bolts
15 ft-lb (21 Nm)
f
Needle Bearing
e
Drive Clutch Cover g
Stationary Sheave
r
Outer Clutch Post h
Shift Weight
t
Spring
j
Shift Weight Fastener
20 in-lb (2 Nm)
y
Belleville Washer (Dome side facing outer post)
k
Clutch Button
u
Washer
l
Washer
i
Spider
1(
Spider Pin
o
Sheave Assembly
2)
Bushing
a
Bushing
2!
Roller
s
Clutch Spacer
