9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual

6.11

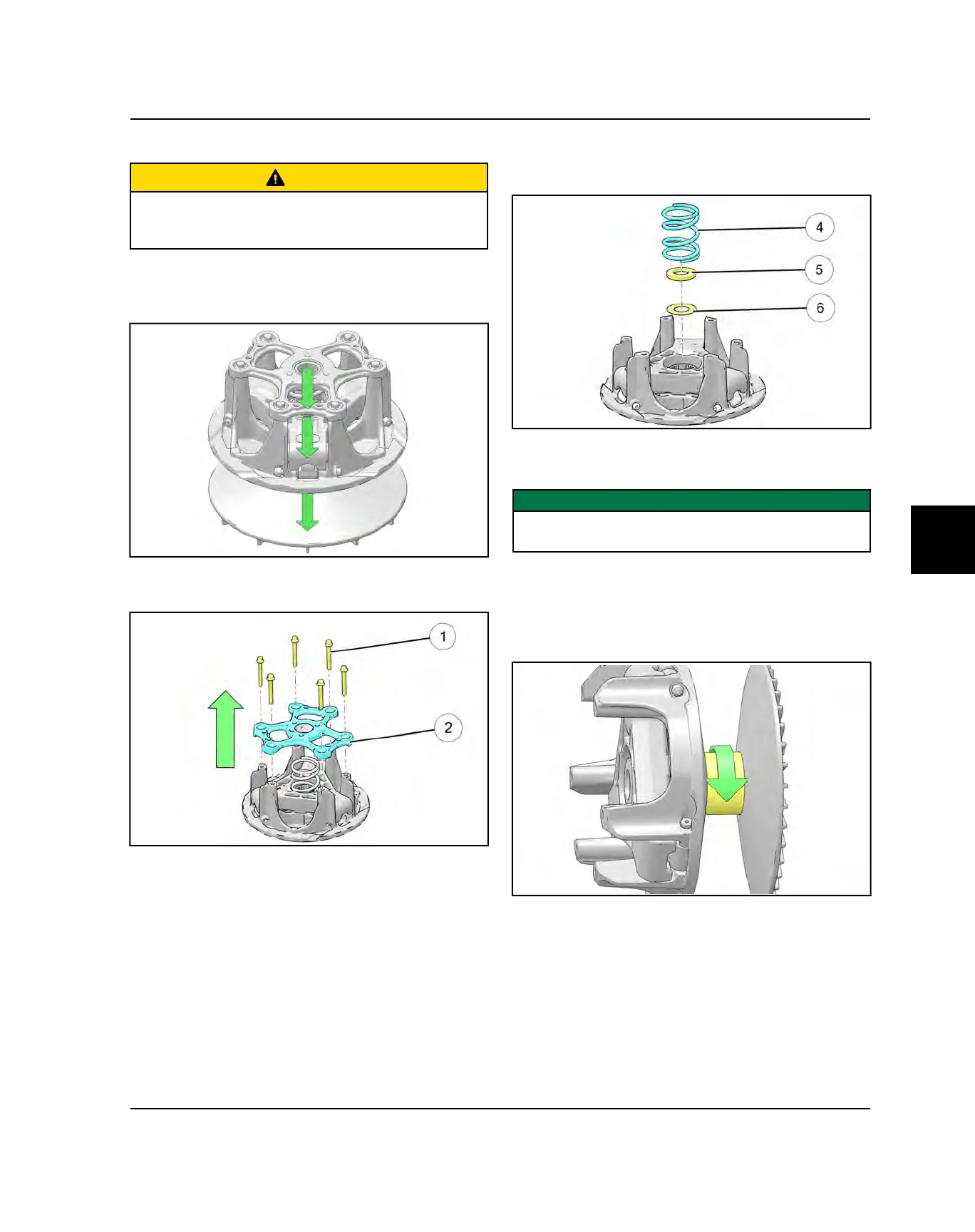

CLUTCH DISASSEMBLY

CAUTION

The clutch assembly is a precisely balanced unit. Never

replace parts with used parts from another clutch

assembly!

1. Using a permanent marker, mark the cover, spider,

and moveable sheave for reference, as the cast in X's

may not have been in alignment before disassembly.

2. Remove cover bolts

evenly in a cross pattern and

remove cover plate

3. Inspect area on shaft where bushing rides for wear,

galling, nicks, or scratches. Replace clutch assembly

if worn or damaged.

4. Remove and inspect the clutch spring

. Refer to

Drive Clutch Spring Inspection page 6.15

procedure.

5. Remove and inspect belleville washer

and washer

. Replace if necessary.

IMPORTANT

Belleville washer must be installed with dome facing the

outer post.

BEARING INSPECTION

• Verify there is no binding or rough spots. If problems

are noted continue with disassembly.

PVT SYSTEM
