2. Insert new A-arm bushings and pivot tube into new A-
arm.
3. Install new upper A-arm assembly onto vehicle frame.
Torque new bolt to specification.
TORQUE
Front Upper A-arm Bolts:
74 ft-lbs (100 Nm)
4. Insert upper A-arm ball joint end into the bearing
carrier. Install upper ball joint pinch bolt into the
bearing carrier and torque bolt to specification.
TORQUE
Front Ball Joint Pinch Bolts:
44 ft-lbs (60 Nm)
5. Install the nut retaining the front stabilizer bar link to
the upper control arm.. Torque fasteners to
specification.
TORQUE
Stabilizer Bar Link Fasteners:
74 ft-lbs (100 Nm)
6. Attach shock to A-arm with fastener. Torque lower
shock bolt to specification.
TORQUE
Front Shock Mounting Bolts:
44 ft-lbs (60 Nm)

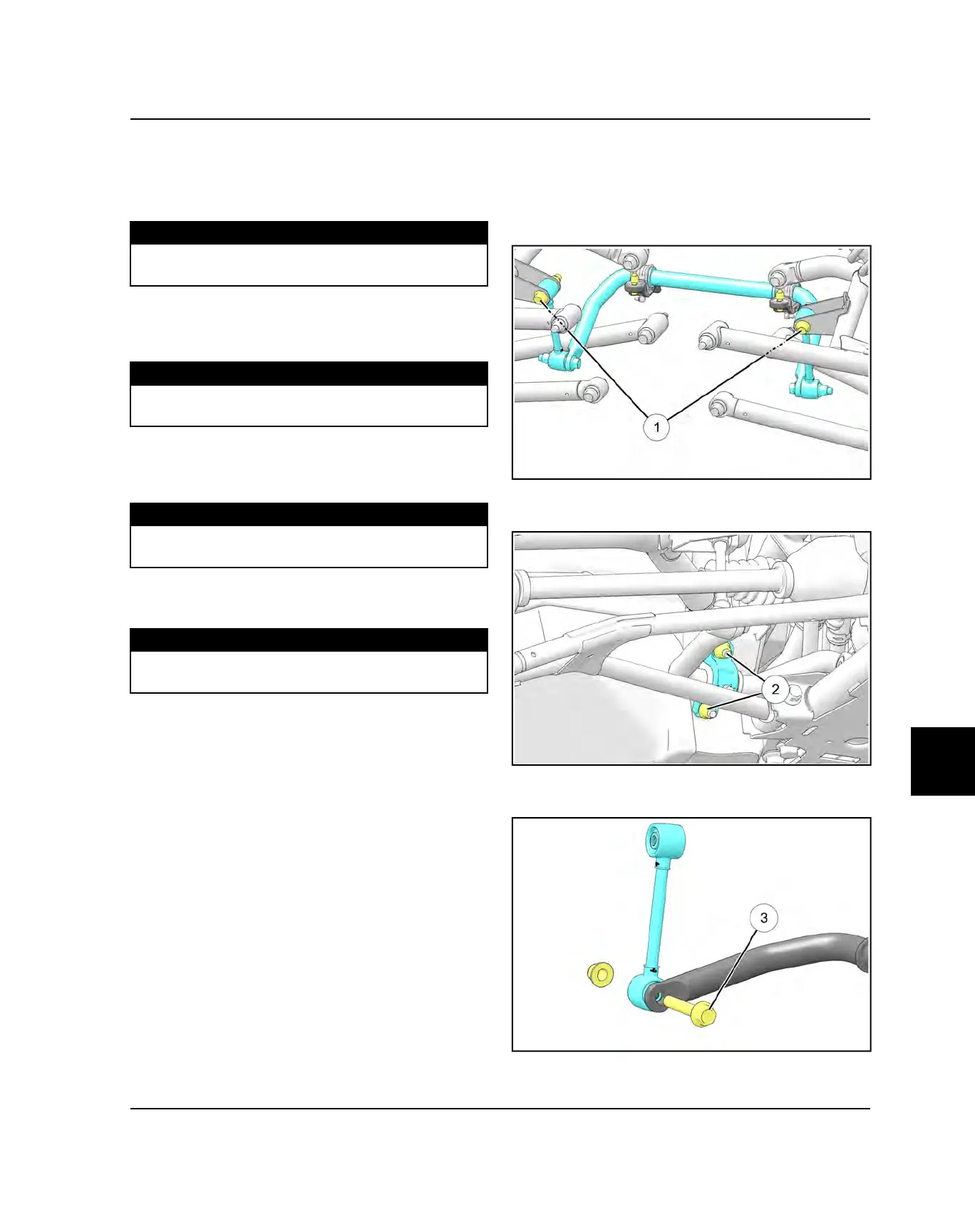

FRONT STABILIZER BAR
REPLACEMENT
REMOVAL
1. Remove the fasteners
q
retaining the front stabilizer
bar link to the upper control arm.
2. Remove the Fasteners
w
retaining the stabilizer bar
mount to the frame.
3. Remove the fasteners
e
retaining the stabilizer bar
link to the stabilizer bar.
