9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual
© Copyright Polaris Industries Inc.
10.3
BRAKE SYSTEM OVERVIEW

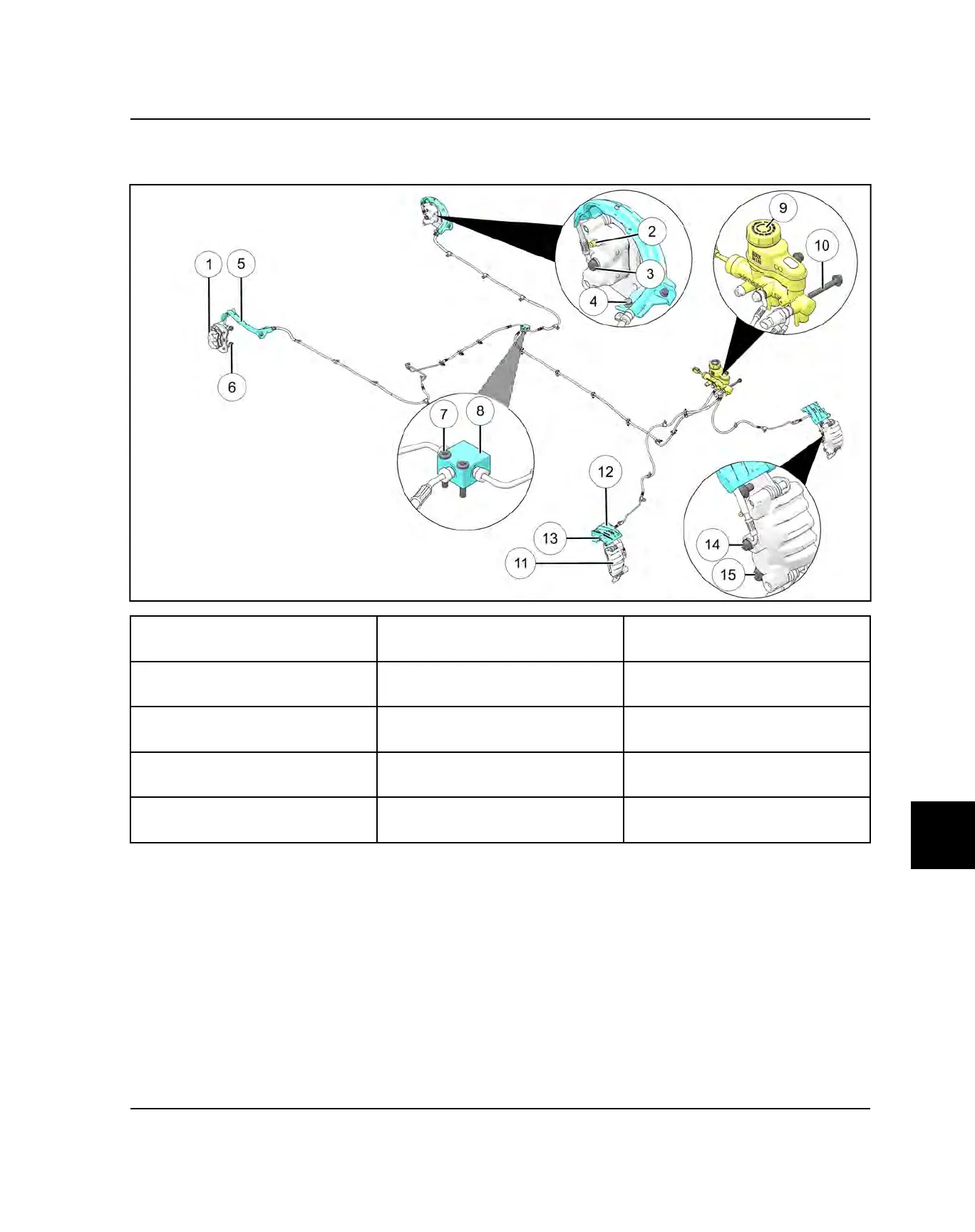

BRAKE SYSTEM VIEW
q
Rear Brake Caliper
y
Rear Brake Caliper Fasteners
33 ft-lbs (45 Nm)
s
Front Brake Caliper
w
Bleeder Screw
48 in-lb (5 Nm)
u
Junction Block Fasteners
35 in-lb (4 Nm)
d
Brake Scraper
e
Brake Banjo Bolt
15 ft-lbs (20 Nm)
i
Junction Block
f
Brake Scraper Fasteners
7 ft-lbs (10 Nm)
r
Rear Brake Line Guide Fasteners
7 ft-lbs (10 Nm)
o
Master Cylinder
g
Brake Banjo Bolt
15 ft-lbs (20 Nm)
t
Rear Brake Line Guide
a
Master Cylinder Fasteners
18 ft-lbs (25 Nm)
h
Front Brake Caliper Fasteners
33 ft-lbs (45 Nm)
BRAKE SYSTEM
