9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual

SHOCKS / SPRINGS

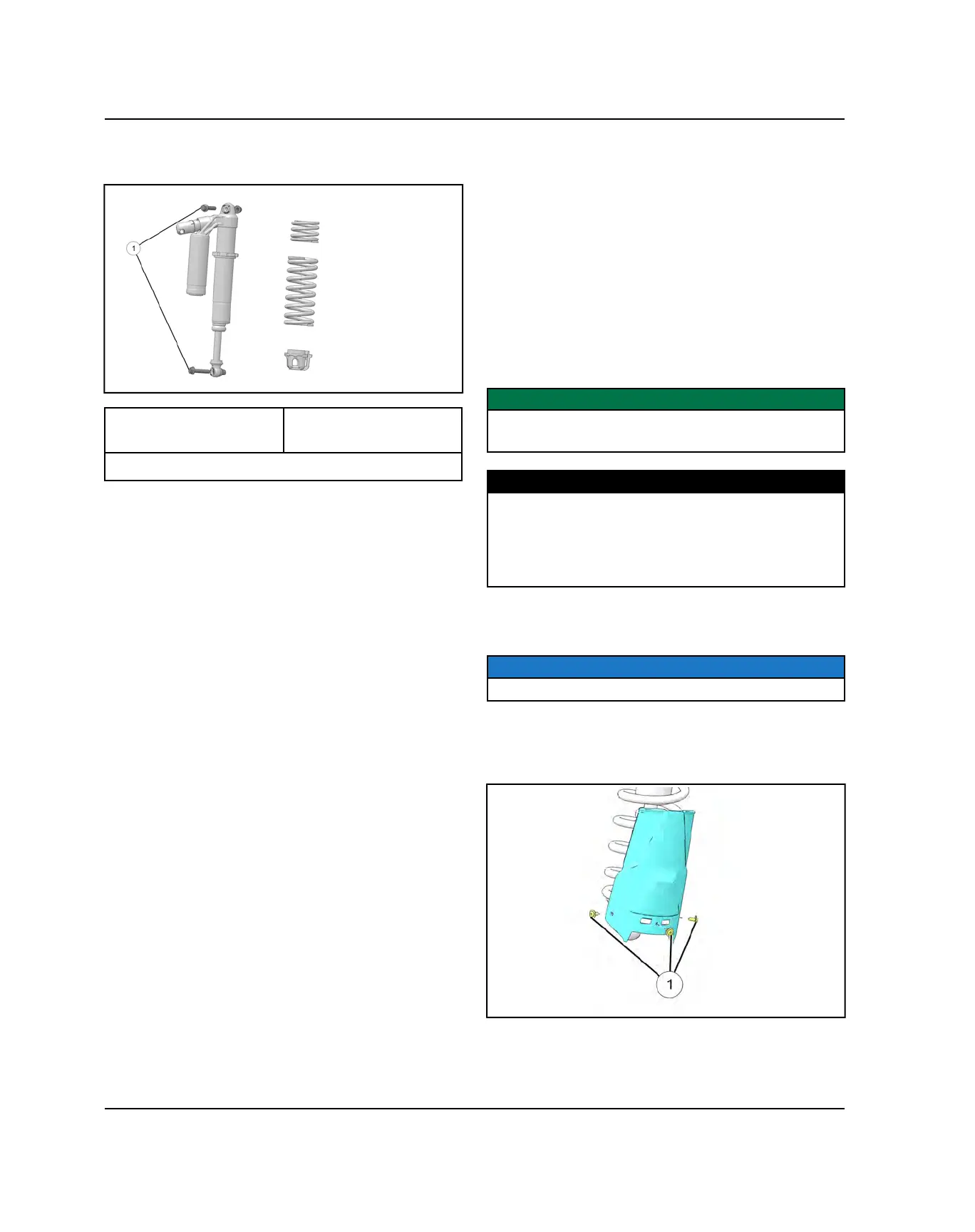

SHOCK ASSEMBLY VIEW

Front Shock

44 ft-lbs (60 Nm)

Rear Shock

74 ft-lbs (100 Nm)

Retainer gap should be 180 degrees from spring end.

SHOCK REMOVAL / INSTALLATION

1. Elevate the vehicle off the ground to relieve the

suspension load.

2. Support under A-arm or trailing arm.

3. If equipped, disconnect Dynamix electrical

connection and cut cable tie retaining harness to the

shock body.

4. Remove the upper and lower fasteners retaining the

shock and remove the shock from the vehicle.

5. Reverse the procedure to reinstall the shock. Torque

fasteners to specification.

IMPORTANT

Ensure Dynamix equipped models have the harness

properly secured to the shock body.

TORQUE

Front Shock Mounting Bolts ( Top and Bottom):

44 ft-lbs (60 Nm)

Rear Shock Mounting Bolts (Top and Bottom):

74 ft-lbs (100 Nm)

SHOCK / SPRING REPLACEMENT

NOTICE

Rear shock shown.

1. Remove the shock. See Shock Removal /

Installation page 9.28.

2. Remove three fasteners

securing mud guard.

3. Use spanner wrench (2878925-329) loosen the jam

nut (if applicable) and adjustment ring until the spring

is loose.
