HELIX AND MOVABLE SHEAVE
BUSHING INSPECTION

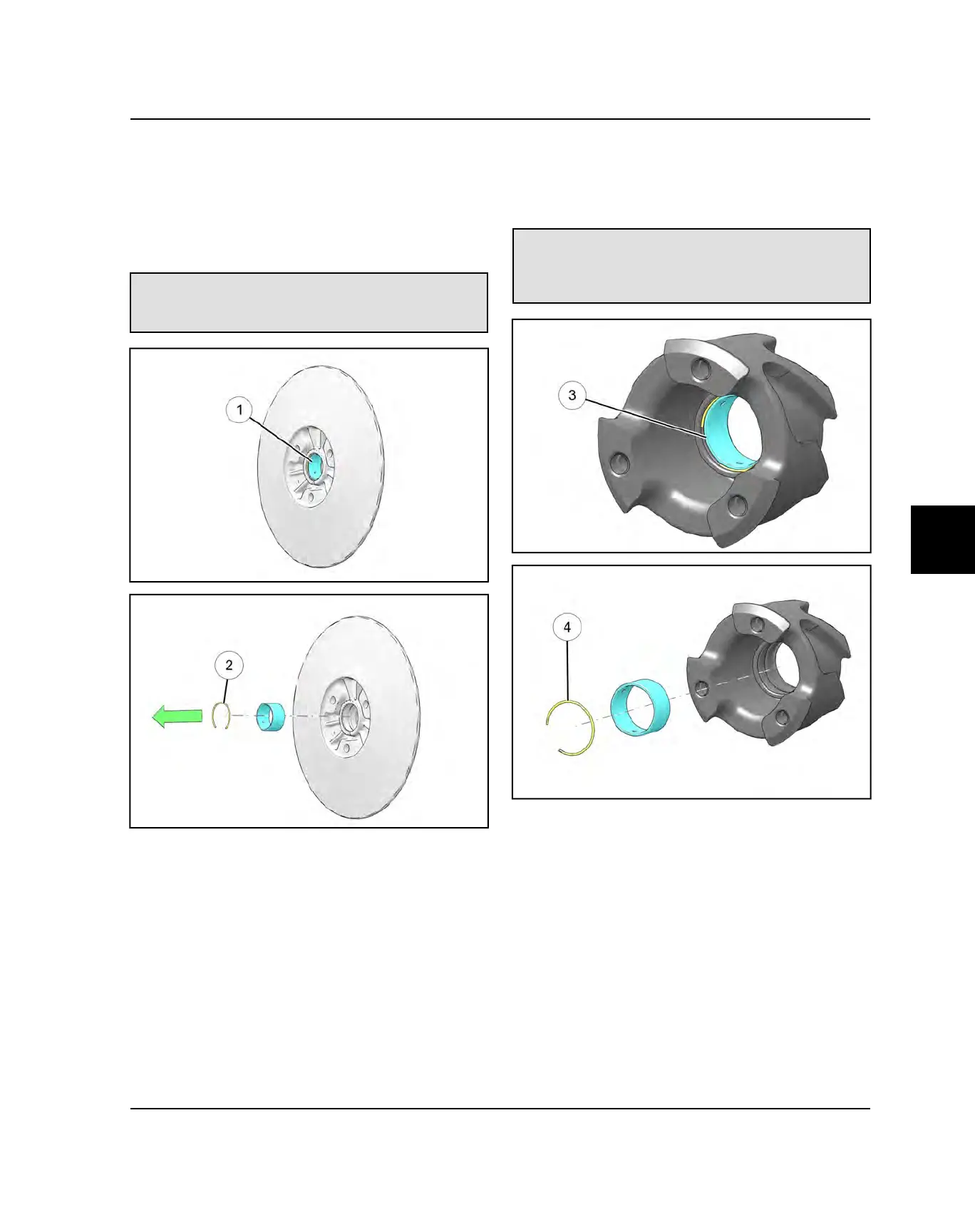

1. Inspect the Teflon® coating
q
on the moveable
sheave bushing. Inspect Sheave for signs of wear,
grooving or cracking. De-glaze sheave surfaces with
a 3M Scotch-Brite™ Pad if needed. Replace if
needed by removing the snap ring
w
.
Moveable Sheave Bushing Inspection:
Replace the movable sheave if more brass than
Teflon® is visible on the bushing.
2. Inspect the Teflon® coating
e
on the Helix bushing.
Inspect Helix for signs of wear, grooving or notching
on ramps. De-glaze surfaces with a 3M Scotch-
Brite™ Pad if needed. Replace if needed by removing
the snap ring
r
.
Helix Bushing Inspection:
Replace the Helix bushing if more brass than Teflon® is
visible on the bushing. Refer to Bushing Service page
6.35procedure.
BUSHING SERVICE
MOVEABLE SHEAVE - BUSHING REMOVAL
1. Remove clutch as outlined previously in this chapter.
PVT SYSTEM
