7
9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual
© Copyright Polaris Industries Inc.
7.11

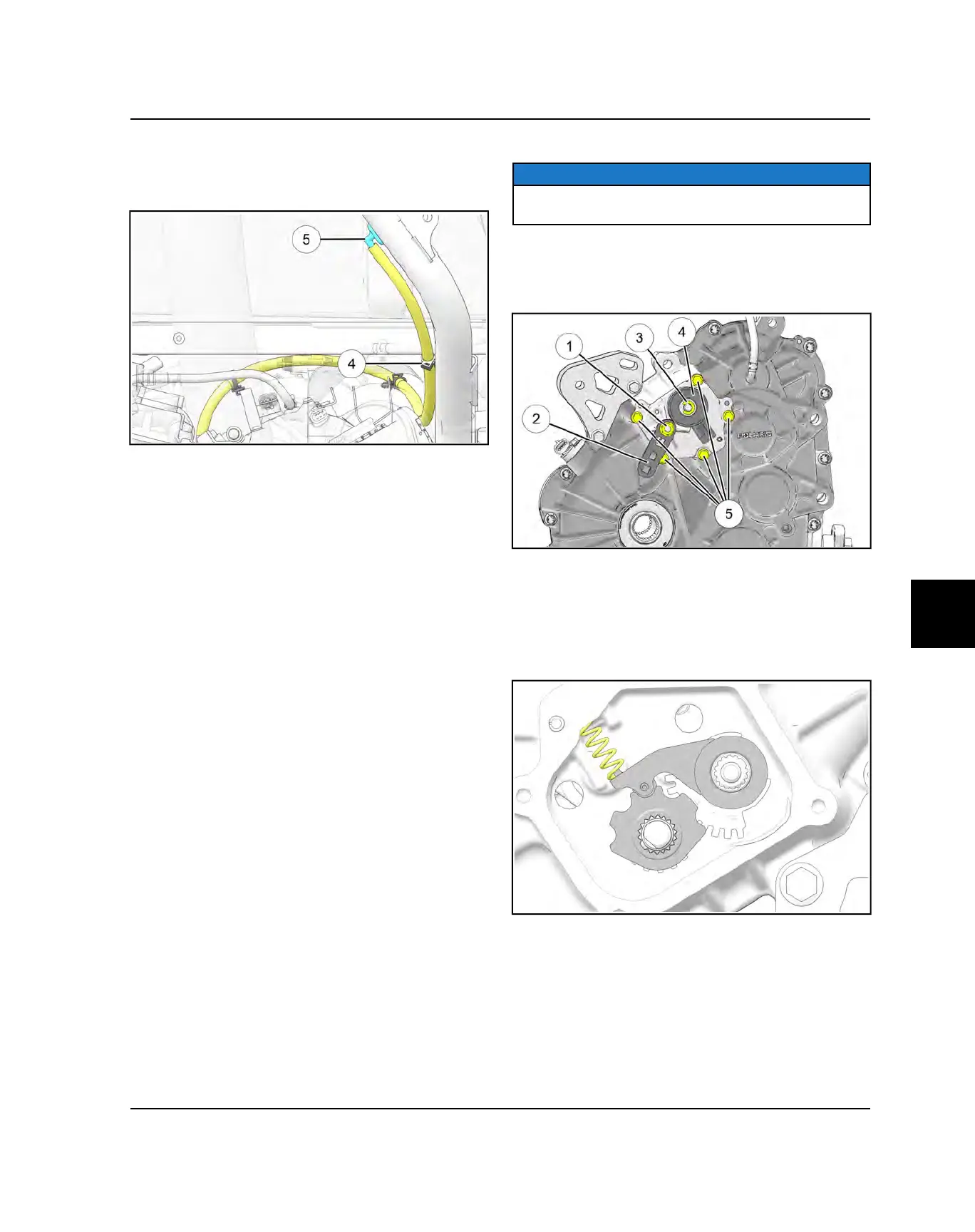

3. The vent line routes toward the driver’s side, attaches
to the rear vertical support tube with a hinge clip
r
and terminates into the support tube using a
termination fitting
t
.
TRANSMISSION DISASSEMBLY
NOTICE
Refer to the exploded view at the end of this chapter as
a reference.
1. Place transmission in high gear.
2. Drain and properly dispose of transmission fluid.
3. Remove bell crank nut
q
and bell crank
w
.
4. Remove E-clip
e
retaining the spring washer, washer
and gear selector switch
r
.
5. Remove sector cover bolts
t
and remove the cover.
6. Remove detent spring, detent pawl and detent star.
Note the master spline on the detent star and the shift
shaft.
TRANSMISSION
