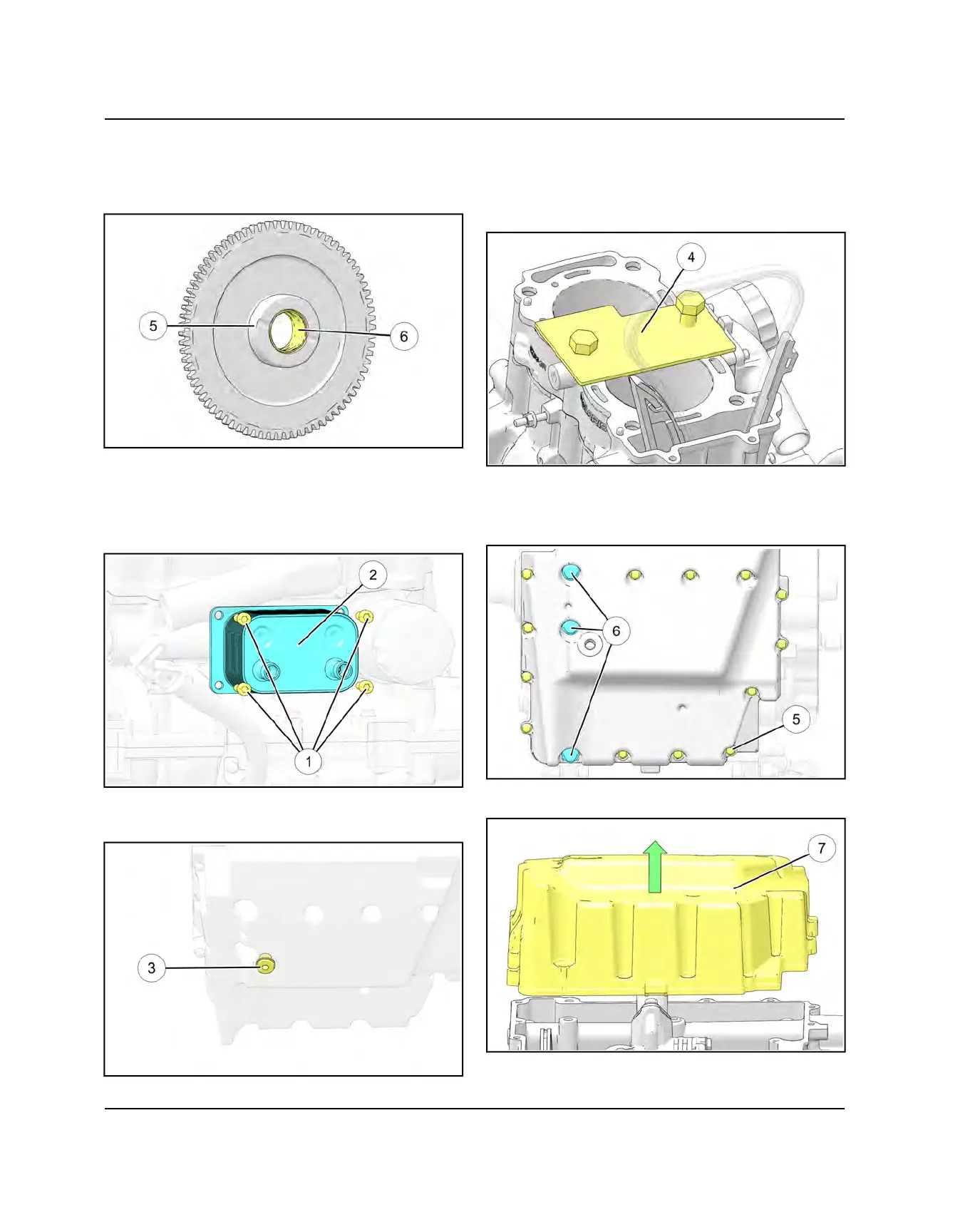

4. Inspect drive surface of starter gear
t
and bushing
y
for wear, damage or uneven surface. If any starter
one-way clutch component is worn or damaged,
replace the clutch and starter gear as an assembly.
CRANKCASE DISASSEMBLY
1. Remove the four fasteners
q
retaining the oil cooler
w
to the crankcase.
2. Remove the crankcase drain plug
e
to drain any oil
remaining in the engine.
3. Remove the oil filter.
4. Install the Cylinder Holding & Camshaft Timing Plate
PU-50563
r
onto the cylinder. The cylinder holding
tool retains the cylinder and pistons when the engine
is rotated.
5. Rotate engine to access the crankcase sump cover.
6. Remove the thirteen M6
t
and three M8
y
bolts
retaining the sump cover to the crankcase.
7. Remove the sump cover
u
from the crankcase.
