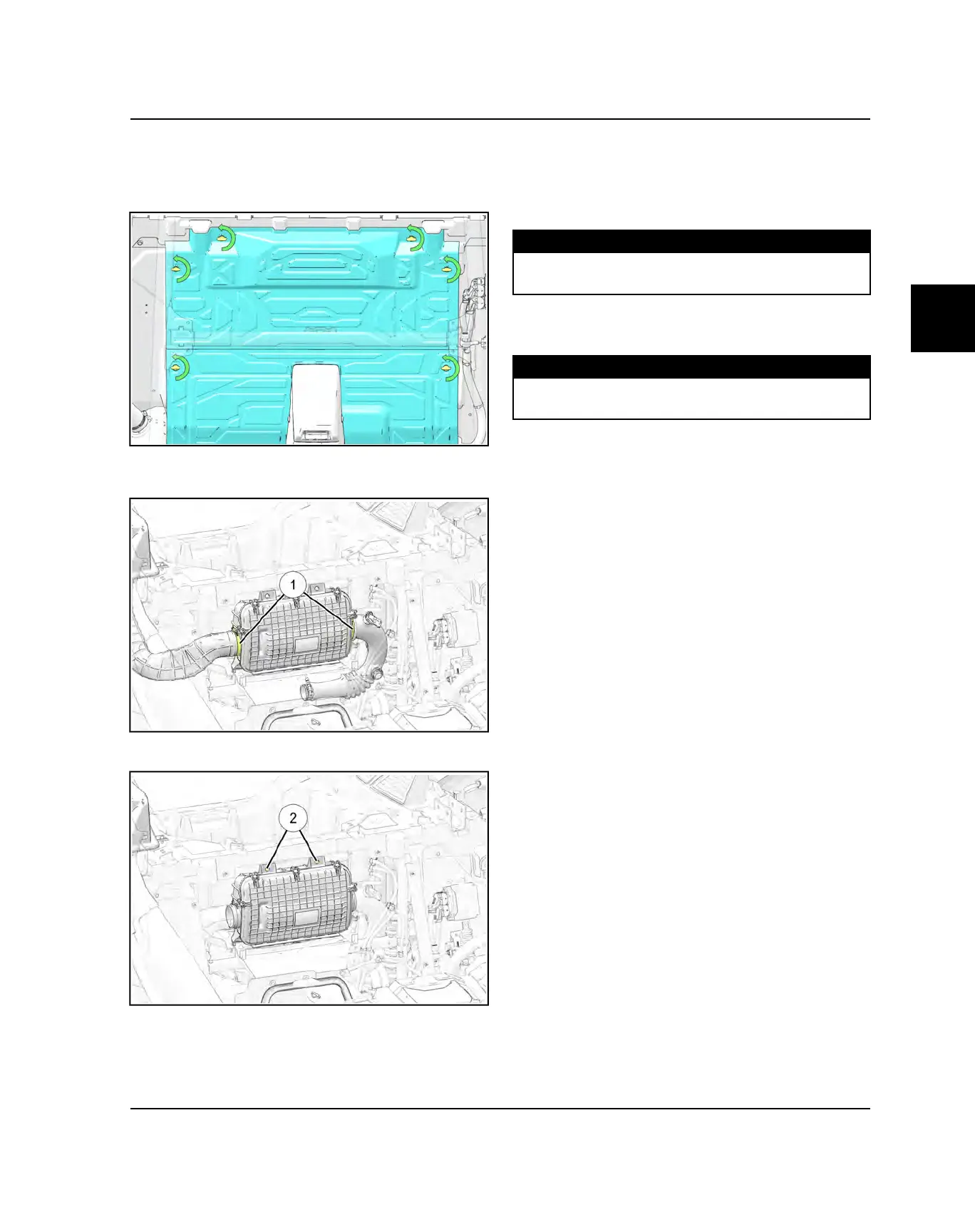

AIR BOX REMOVAL

1. Remove seats.

2. Remove upper and lower rear close off panels.

3. Loosen the band clamps

retaining the intake hoses

to the air box.

4. Remove two fasteners

retaining the air box.

5. Lift air box upward to disengage lower mounting tabs

and remove air box from vehicle.

AIR BOX INSTALLATION

1. Install the air box and re-engage lower mounting tabs.

2. Install the intake hoses onto the air box. Tighten hose

clamps to specification.

TORQUE

Intake Hose Clamps:

35 in-lb (4 Nm)

3. Install two air box mounting fasteners. Torque

fasteners to specification.

TORQUE

Air Box Mounting Fasteners:

8 ft-lb (11 Nm)

4. Install upper and lower rear close off panels.

5. Install both seats.
