17.Install clutch intake duct, and tighten two worm
clamps to specification.
TORQUE
Worm Clamps
35 in-lbs (4 Nm)
18.Connect the battery. Torque fasteners to
specification.
TORQUE
Battery Fasteners:
60 in-lbs (7 Nm)

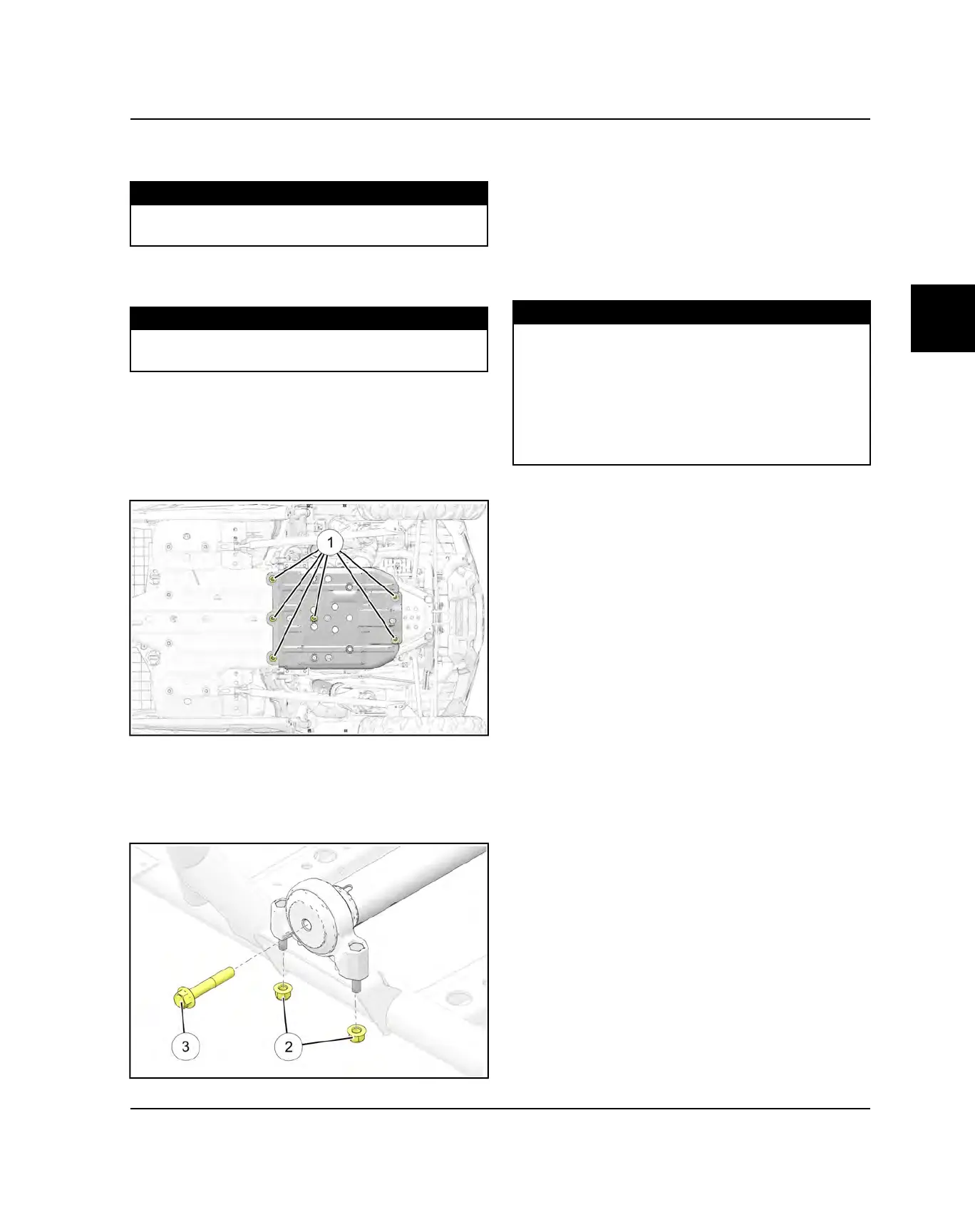

FRONT ENGINE MOUNT ISOLATOR
REPLACEMENT
1. Remove the rear skid plate fasteners
q
and remove
the skid plate from the vehicle.
2. Using a commercially available transmission lift or
pump jack, lift the front engine mount to take the
weight off the isolators.
3. Remove the fasteners
q
retaining the isolator
mounts to the frame.
4. Remove the isolator bolt
w
and remove the isolator.
5. Install new isolator and bolt. Torque fastener to
specification.
6. Lower the lift or jack and align the isolator tang with
the holes in the frame. Install isolator to frame
fasteners. Torque fasteners to specification.
7. Install rear skid pan. Torque fasteners to
specification.
TORQUE
Engine Mount Isolator Bolts:
40 ft-lbs (54 Nm)
Engine Mount Nuts:
22 ft-lb (30 Nm)
Skid Pan Fasteners:
8 ft-lbs (11 Nm)
