2-RF Coax Cable Routing
a) The RF Coax cable should be routed down below the tuner, and out the right bottom side of the
armor. This is easier if you straighten the cable and gently push it through the center of the armor,
in the direction as shown. Use your finger to guide the cable out the bottom right side opening and
feed about 10 inches through.

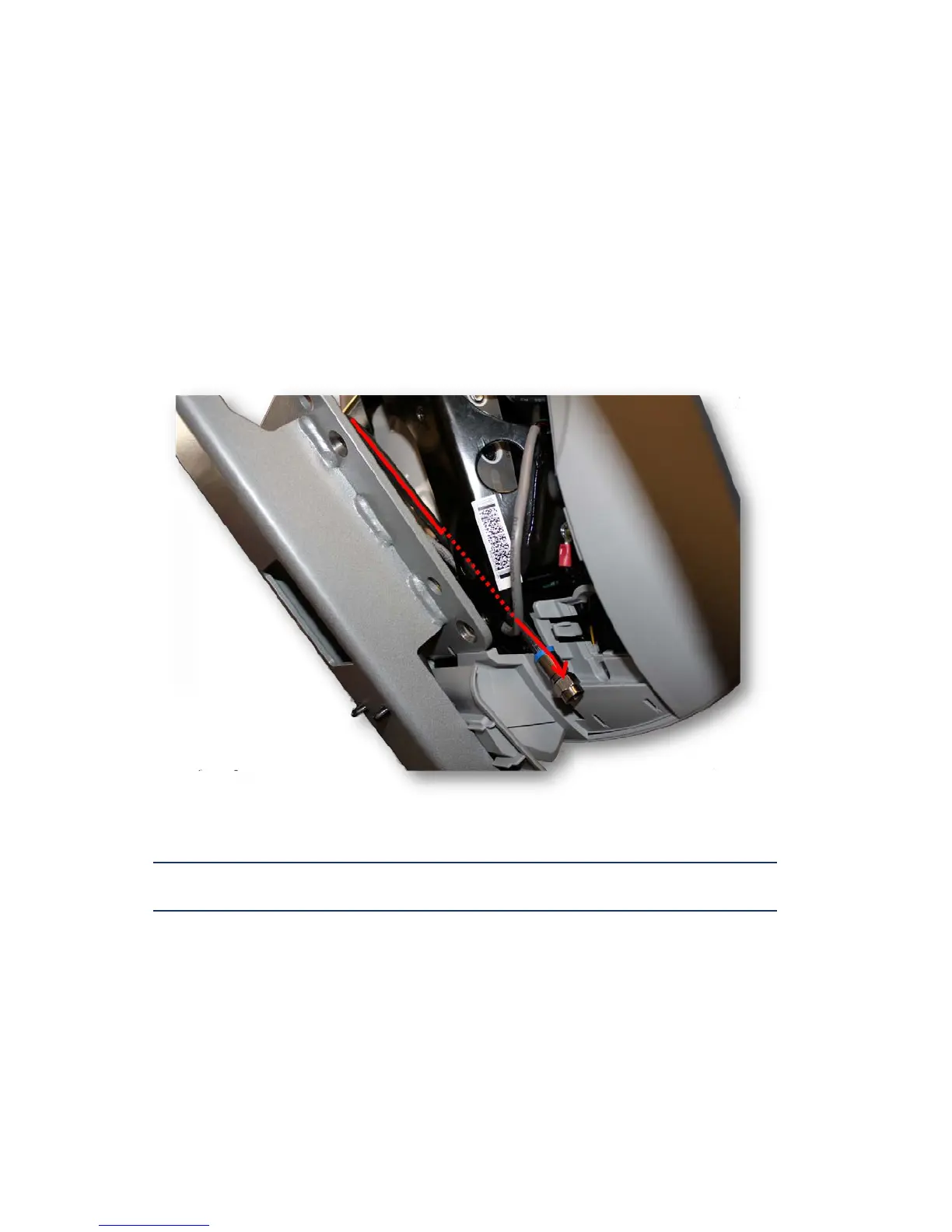

Figure 4: Coax Cable Starting Path
b) The RF Coax cable should reach up and over the top of the armor connecting it to the flexible cable
attached to the tuner.
When connecting to the flexible cable, take care to not damage the cable. Being
flexible, it is also fragile and can become damaged if handled roughly.
To Next Page
