© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 18
Mounting the P80 Console
1 Double check that all cables are fully and securely connected, and that cables are tied back properly.
Make sure any extra cabling is pulled down through the neck.
NOTE:
***For treadmill installations, make sure that the cables from the upright to the
mounting neck are routed along the front of the dash (using the attached flex ties),
making sure the cables are routed through the plastic guides inside the neck. ***

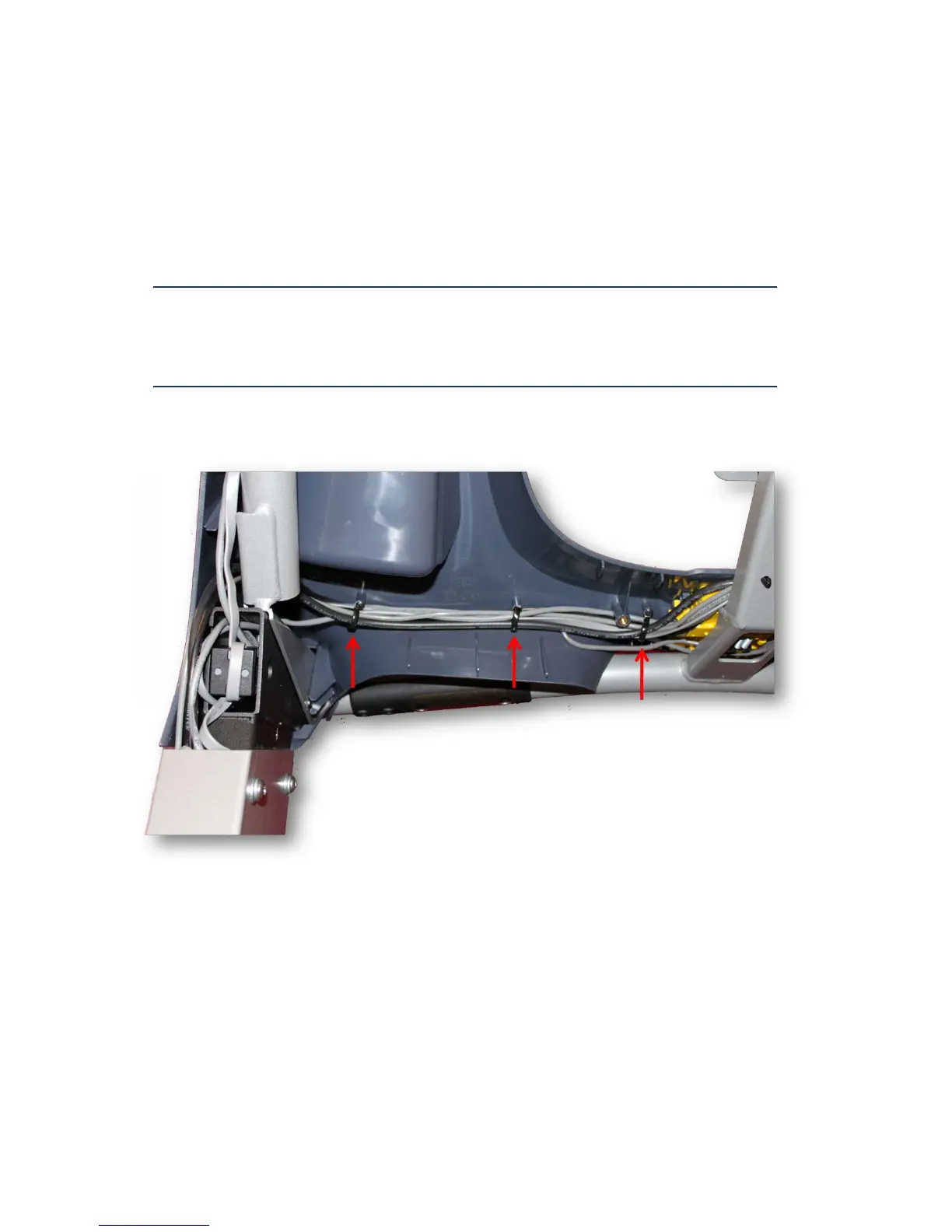

Figure 13: Dash Cable Routing
2 Tilt the control console back onto the mounting plate until the tab on the top edge of the armor slides
along the top edge of the mounting plate and the screw holes align properly.
3 Secure the console to the plate using the four flat head 5/8 inch long screws in the hardware kit. Use
the 5/8 inch long screws that come in the hardware kit, as they are a custom length for this location. If
you need additional screws (part number MCCN025-031) contact Precor. ½ inch screws are too short
to provide the proper grounding required by the P80 and ¾ inch are too long and can damage wires.
