© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 16
6-Power Cable Routing
The Power cable should be routed through the center of the armor, and then through the upper left corner
of the weldment. If the P80 is hardware version 1, It is possible that when you are dressing the cables to
pull this connector back inside the weldment. Leave the connector on the side of the P80 as shown, as it
might be necessary to access it for troubleshooting. Version 1.5 hardware will connect to the power supply
board.

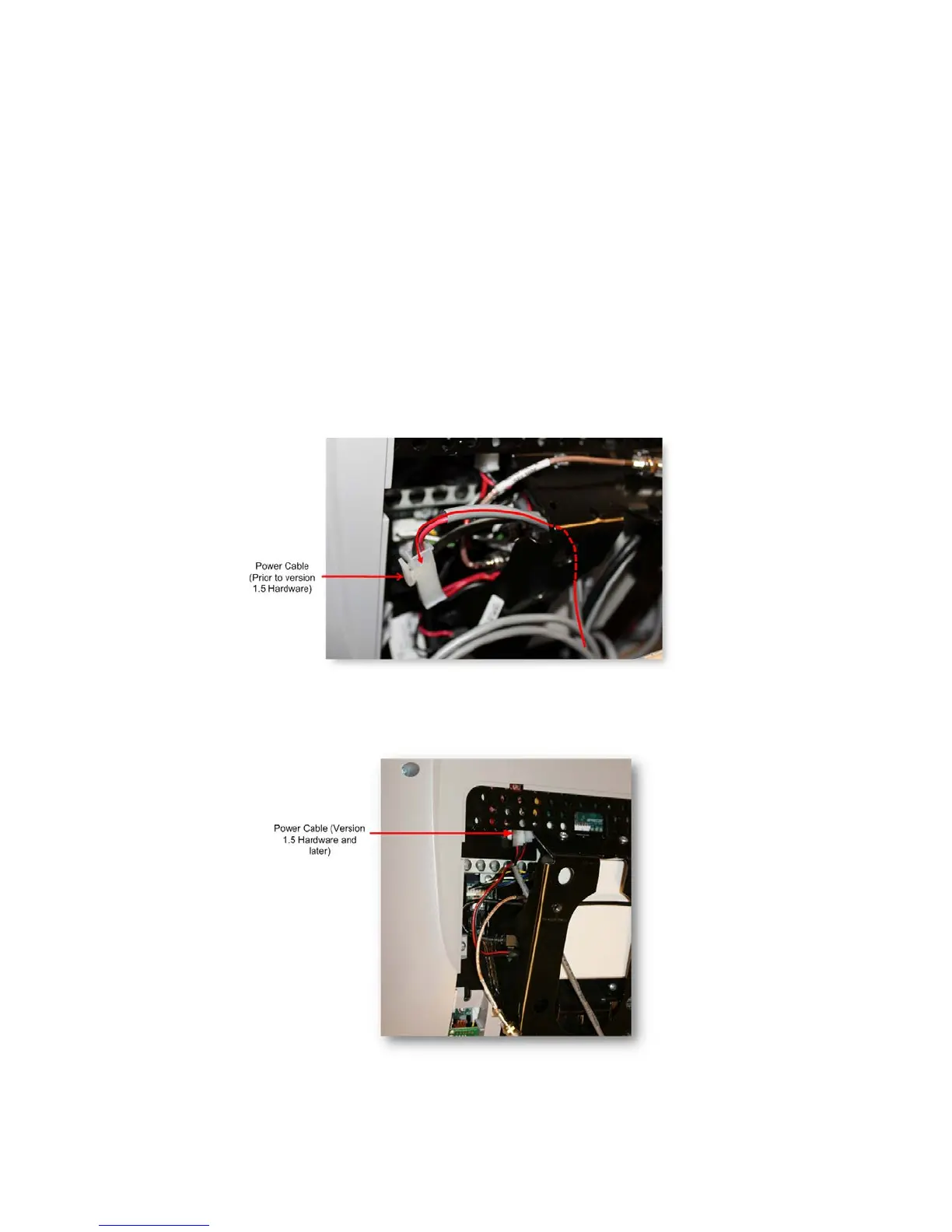

Figure 10: 1_5 Power Cable Routing (Prior to version 1.5 Hardware)
Figure 11: Power Cable (Version 1.5 Hardware or Later)
