Chapter 11 In-service field maintenance for 5Uenclosures 107

12Gb/s

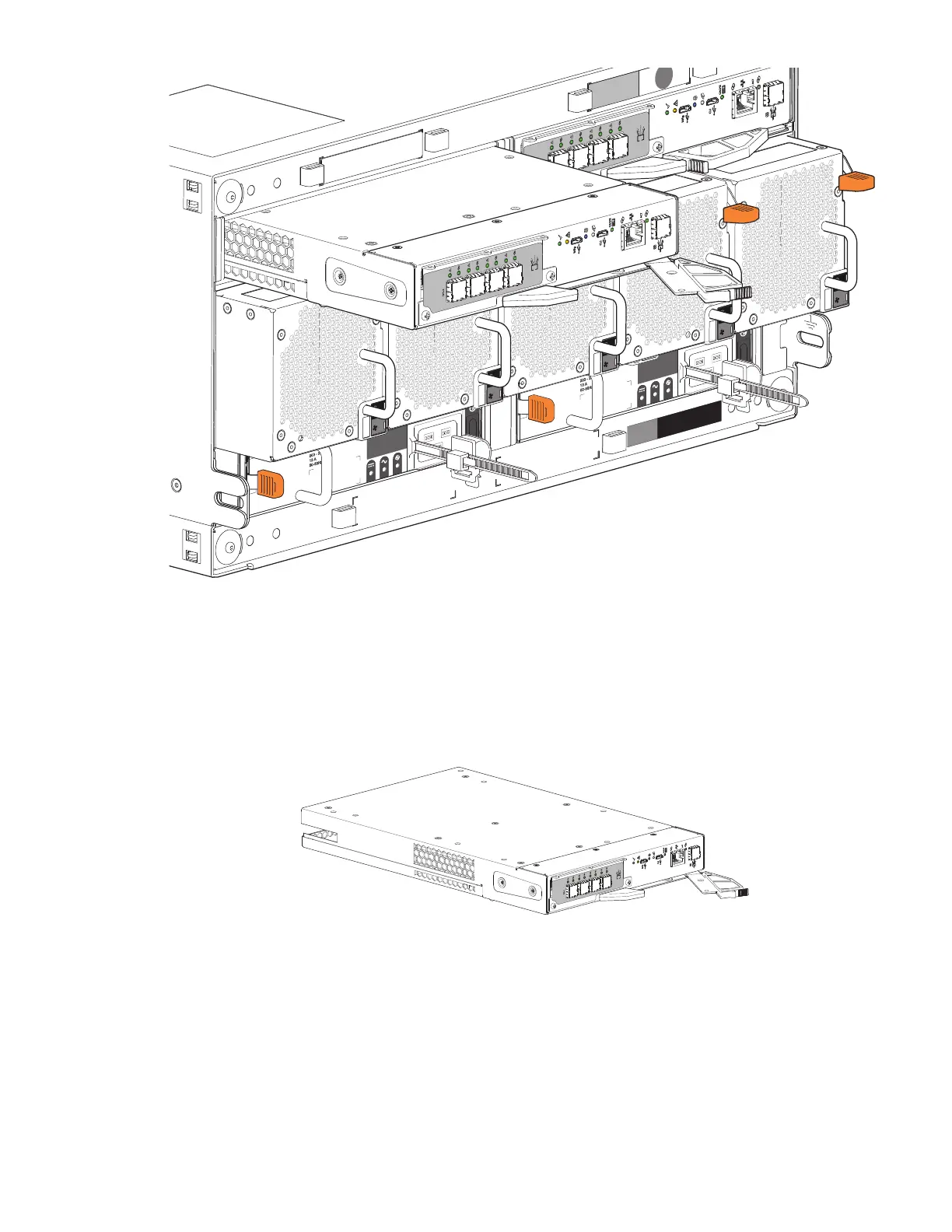

Figure 84 Controller module removal, left (SAS 4-port version)

c. Pull the handle outward to lever the CM away from the midplane.

d. Use one hand to support the weight of the CM and the other to gently withdraw the CM from its slot.

e. Place it in a static-protected location.

2. Complete the following actions to replace it with a tested good CM:

a. Examine the tested good CM to make sure it is undamaged with pins that are straight, not bent.

12Gb/s

Figure 85 Replacement controller module (SAS 4-port version)

b. Facing the rear of the storage enclosure, orient the CM with the open latch identically to the one you

removed.

c. Use one hand to support the weight of the CM and the other to guide it into the empty CM slot.

Table of Contents3
