o password: netwireless

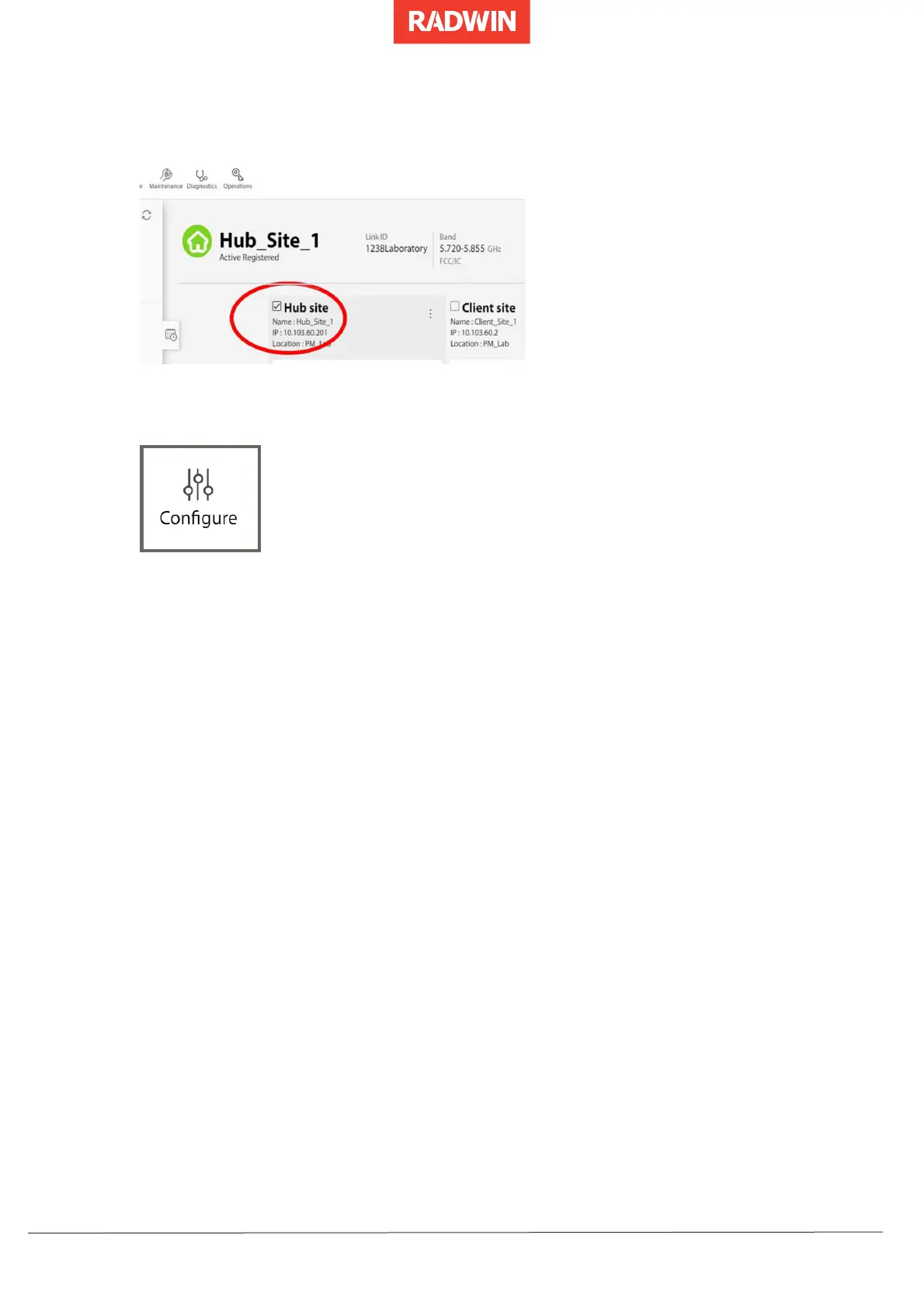

4. Select the checkbox of the ODU you want to update:
5. Click the Configure icon:
6. Select Air Interface ‐> Radio.
7. Enter the Sector ID (equivalent to the Link ID), and if applicable, Channel Bandwidth,
then click Save.
8. Select Management ‐> Network
9. Enter the new IP address, Subnet Mask, and Default Gateway, then click Save.
10. You will be warned that the device will be reset. If all the values are correct, click OK.
11. Using the CLI, ping the ODU using the new IP address to verify the changes.
12. Disconnect the ODU and prepare it for deployment in the field.
3.4.3 Configuring RADWIN 2000 E ODUs for Connectivity
1. If you have not already done so, connect the ODU to power through the POE port,
and connect your PC using ethernet / SFP.
2. In a browser, enter the ODU IP address (default value: 10.0.0.120).
3. In the login page, enter the login credentials. The default credentials are:
o username: admin
o password: netwireless
• If this ODU hasn’t yet been activated, the Quick Setup wizard starts automatically.
Otherwise the Home page appears.
• If the Quick Setup wizard hasn’t started, click Quick Setup.
The wizard for configuring the initial device parameters appears:
