4. Route the CAT‐5e and ground cables down from the ODU to a PoE.
It is recommended to route the CAT‐5e cable via 2 LPUs: one near the ODU and one
near the PoE.
5. Fasten the CAT‐5e cable connections with a gland and add sealant tape.
6. Connect the ground cable to the ground.

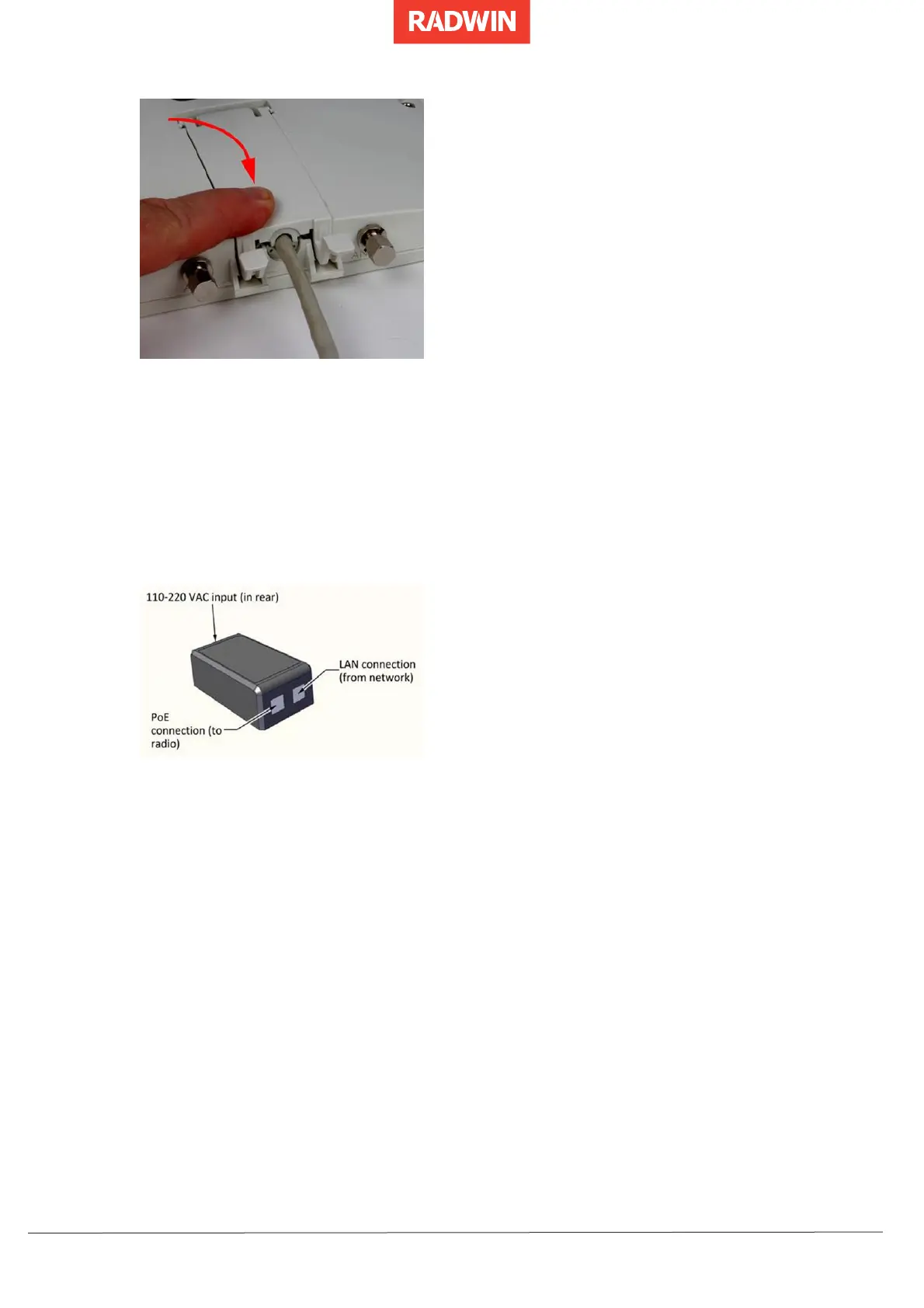

7. Perform the final connections via the RADWIN 2000 Alpha EMB PoE:
8. Connect the CAT‐5e cable from the lower LPU to the "PoE" port.
9. Connect the LAN cable to "LAN" port.
10. Connect the power cable.
3.12.3 Connecting RADWIN 2000 E ODUs
Connect the RADWIN 2000 E ODU as follows:
1. Connect an ethernet cable to the input port of the ODU as follows:
Note: If you are using a FO cable, connect it to the SFP port (labeled “LAN”).
