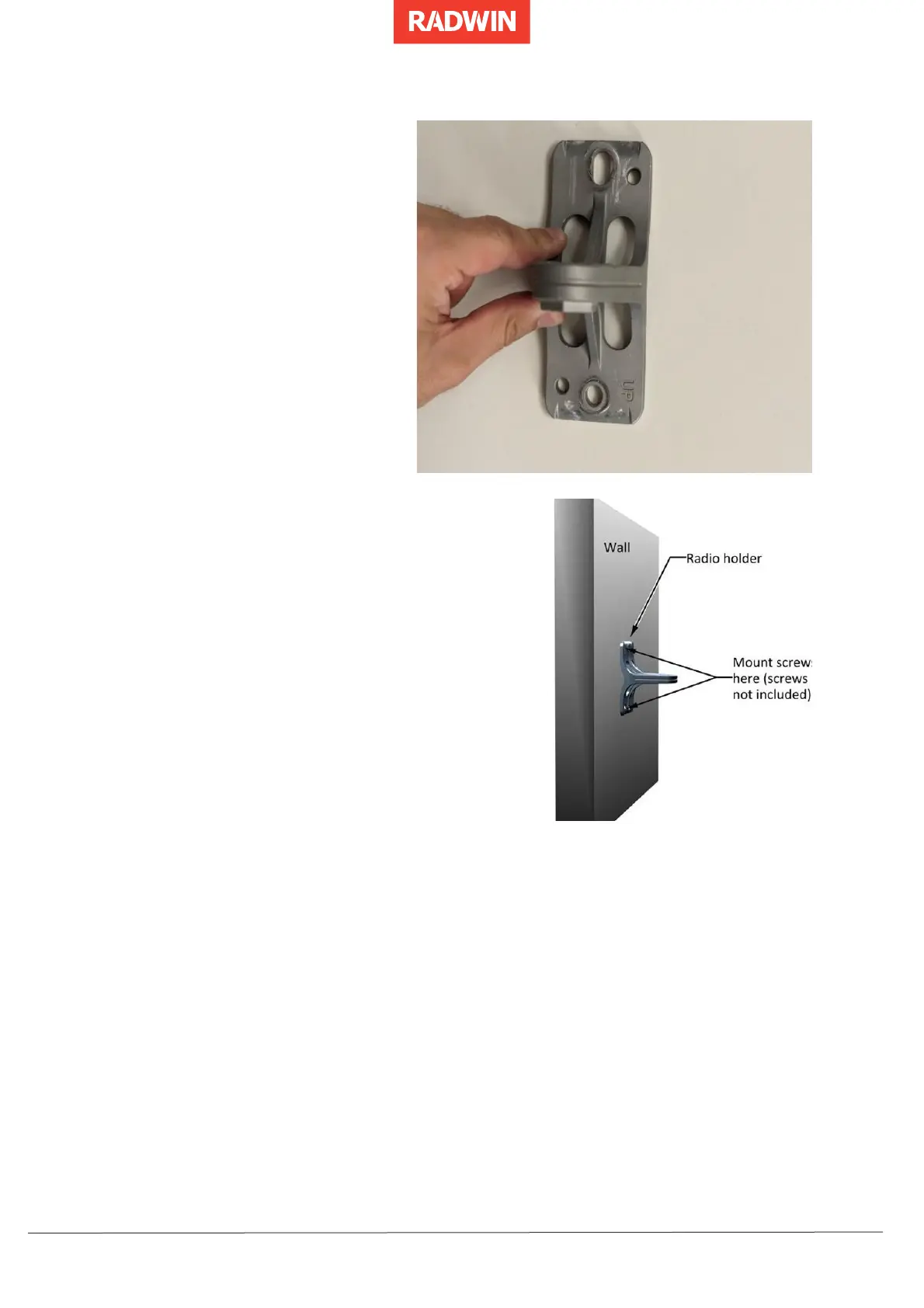

3. Install the mounting kit on a wall using two mounting screws (not included)
appropriate for the type of wall.
Make sure you use the
indicated holes.
3.7.4 Various ODUs Mounting Options on a Standard Mounting Kit
LFF (large form‐factor) ODUs, SFF (small form‐factor) ODUs, RADWIN 2000 Alpha INT
ODUs, RADWIN 2000 E ODUs, as well as external PoEs, RADWIN GSUs, and external
antennas can use the mounting kit as shown in the following figures.
If you are mounting a flat‐panel antenna, see Flat Panel Antenna below.
