Rain Bird ESP-SMT User Manual

ESP-SMT Smart Modular Control System
16
Set Allowed Watering Windows
You must set specic time periods
in which irrigation can occur on the
previously set Allowed Watering Days.
A
When the SET ALLOWED WATER
TIME (screen is displayed the
06:00AM is blinking under the
1st Watering Window text that is
displayed on the screen
b. Press the - or + button(s) to set
the time in which the irrigation
schedule will begin if irrigation is
needed on that particular Allowed
Watering Day. Once the desired
time is reached, press the NEXT
button.
c. The text under the 1st Watering
Window representing an ending
time of 6:00PM will begin to blink.
Press the - or + button(s) to set the
time in which the irrigation schedule
must end. Once the desired end
time is reached, press the NEXT
button.
d. If a 2nd Watering Window is desired,
Press the ON button and a second
watering time will be displayed.
Press the NEXT button and the start
time of the 2nd watering window
will begin to blink.
e. Press the - or + button(s) to set the
2nd Watering Window in which
the irrigation schedule will begin
if irrigation is needed on that
particular Allowed Watering Day.
Once the desired time is reached,
press the NEXT button.
a.
d.
A
c.
A
b.
A
e.
A
a.
A

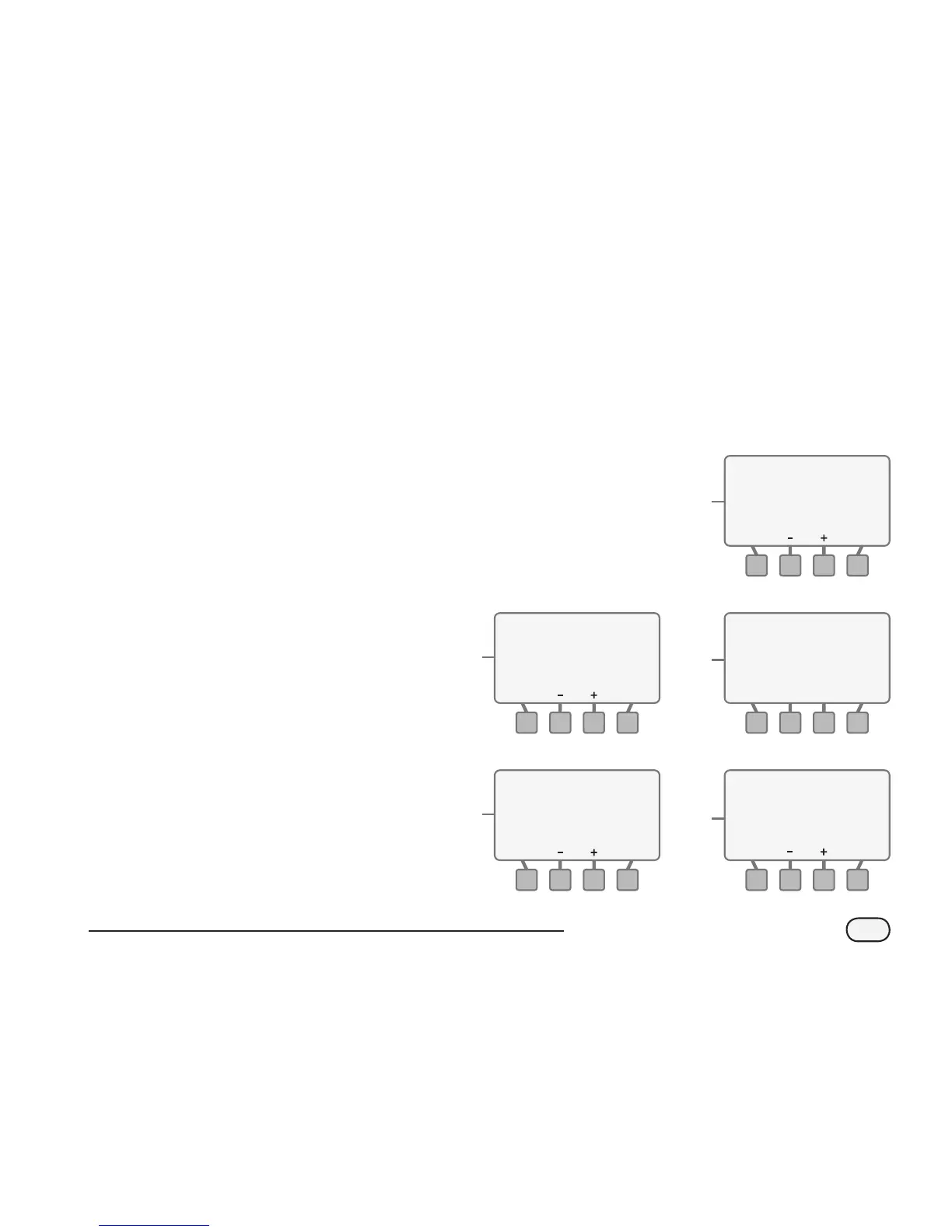

SET ALLOWED WATER TIME
1st Watering Window
AM To 06:0005:00 PM
NEXTBACK
2nd Watering Window
OFF
SET ALLOWED WATER TIME
1st Watering Window
AM To 09:0005:00 AM
NEXTBACK
2nd Watering Window
OFF
SET ALLOWED WATER TIME
1st Watering Window
AM To 09:0005:00 AM
AM To 11:4506:15 PM
NEXTONOFFBACK
2nd Watering Window
ON
SET ALLOWED WATER TIME
1st Watering Window
AM To 09:0005:00 AM
PM To 11:4506:00 PM
NEXTBACK
2nd Watering Window
ON
SET ALLOWED WATER TIME
1st Watering Window
AM To 06:0006:00 PM
2nd Watering Window
OFF
NEXTBACK
