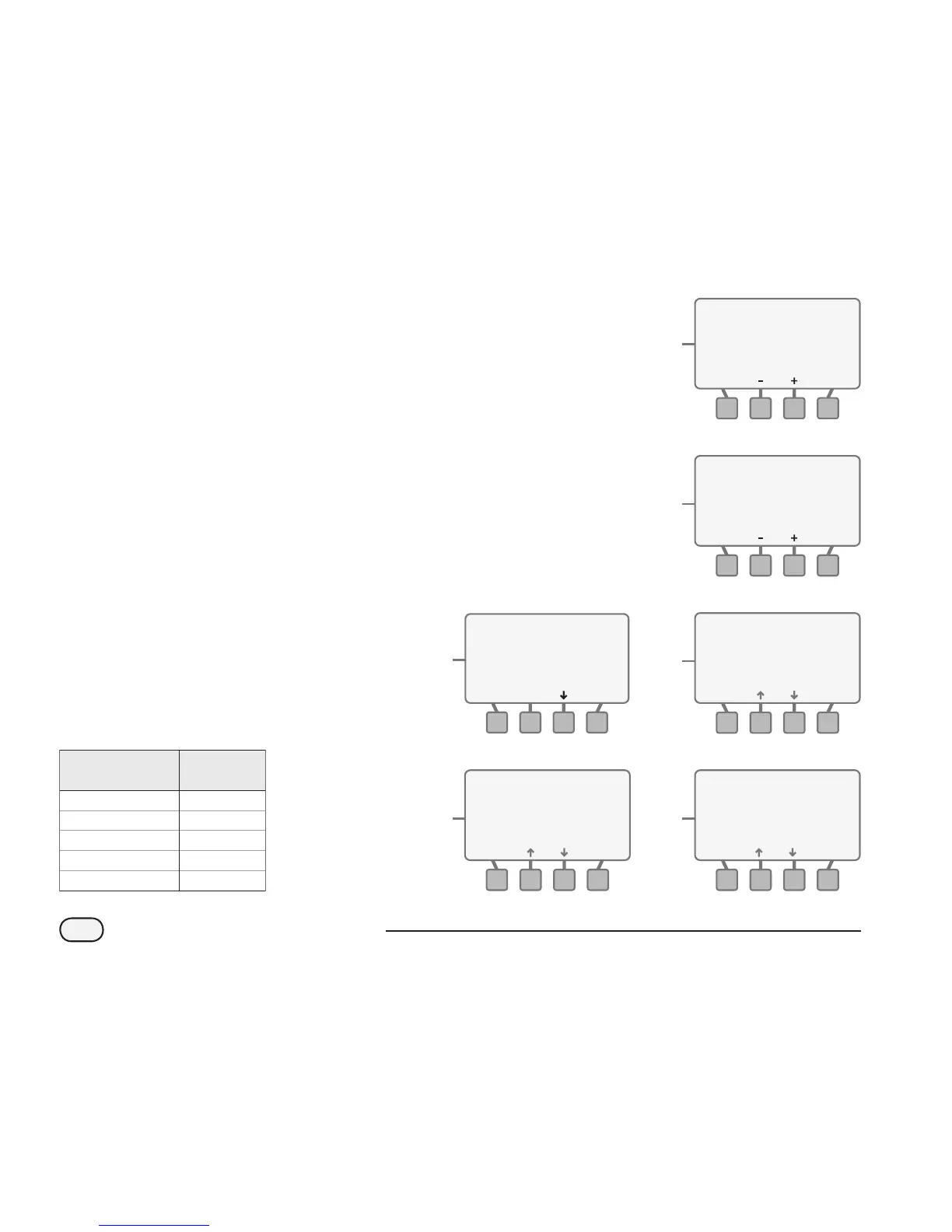

Once you’ve identied the correct
soil type for the site; press the down
arrow button until the desired soil
type is blinking; press the SELECT
button.
Select Sprinkler Type Method
I
The SPRINKLER TYPE screen will
appear;
Press the up or down arrow button(s)
to navigate to the dominant sprinkler
type for that zone; then press the
SELECT button.
!
NOTE: It is recommended that
the Default Net Application rate be
adjusted to match the actual zone
conditions. See pages 81-83 for
different methods to determine
the correct value.
J
The screen will display the default
Net Application Rate for the
sprinkler type selected.
K
If you need to change this value to
better match the actual application
rate, press the - or + button(s) until
the desired value is shown.
L
If choosing Drip as the sprinkler
type, you will be given two types of
drip to select from.
a. When Drip is blinking on the display,
press the SELECT button.
b. Select Point Source or Inline Grid.
J
ROTOR Zone 2
Net Application Rate:
NEXTBACK
0.45 in/hr
K
ROTOR Zone 2
Net Application Rate:
NEXTBACK
0.25 in/hr
8
SOIL TYPE
SELECTBACK
Zone 2
Sand Loamy Sand
Sandy Loam Loam
Clay Loam Silty Clay
Clay
Help
9
SPRINKLER TYPE Zone 2
Sprays Rotors
Bubblers
Rotary Nozzle
Drip
- OR -
Time-Based
SELECT
BACK
Sprinkler Type - Default Net
Application Rates
Net Application
Sprinkler Type
Rate (in/hr)
Sprays
Rotors
Bubblers
Point Source Drip
Rotary Nozzle
1.60
0.45
2.50
0.80
0.50
L
SPRINKLER TYPE Zone 2
Sprays Rotors
Bubblers
Rotary Nozzle
Drip
- OR -
Time-Based
SELECT
BACK
a.
L
DRIP Zone 2
Point Source
Inline Grid
SELECTBACK
b.
