Rain Bird ESP-SMT User Manual

ESP-SMT Smart Modular Control System
35

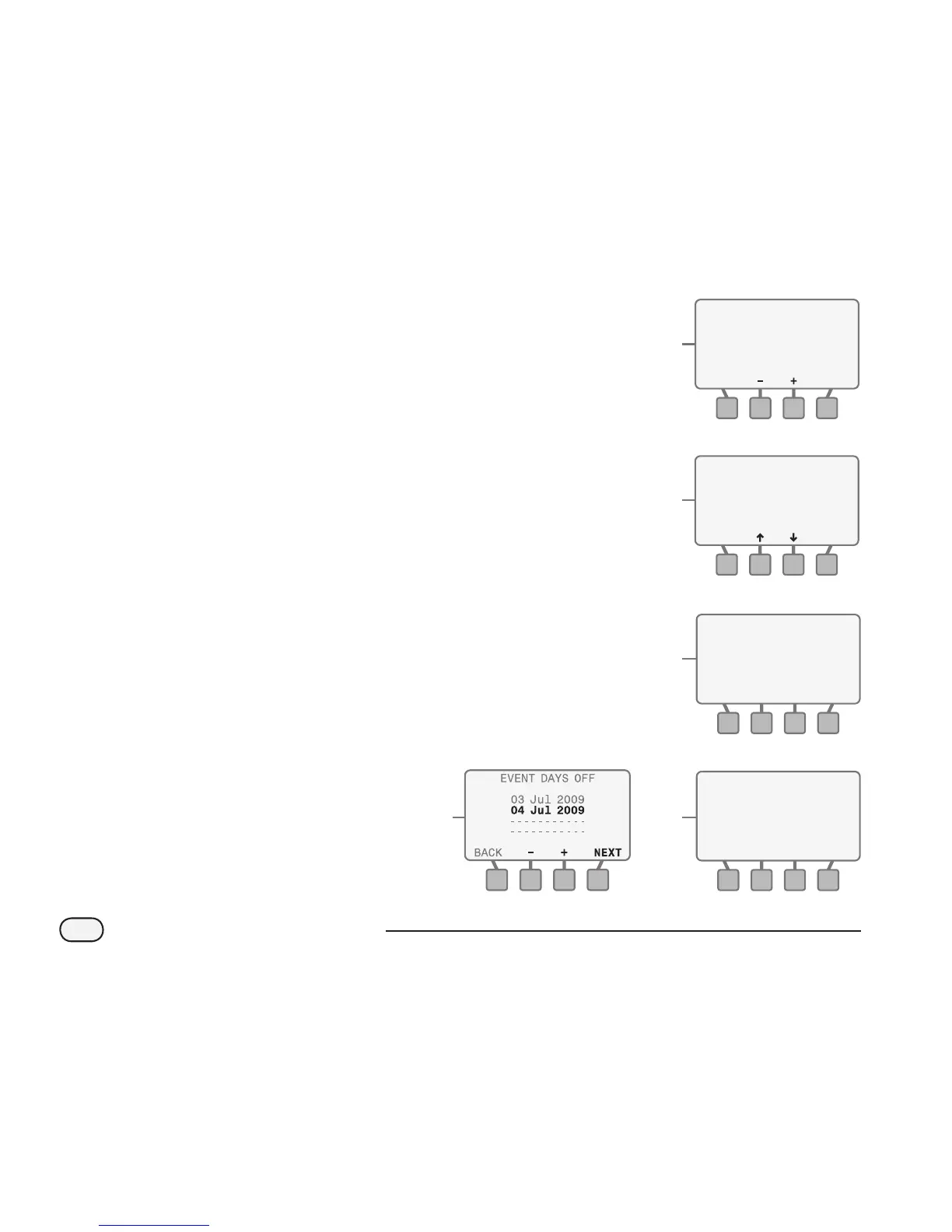

c. The second entry line will begin to
blink. Press the + button and the
current date appears and begins
to blink. Press either - or + button(s)
to change to the date that you
would like to prevent irrigation from
occurring; then press the NEXT
button.
d. Continue this process until all
desired Event Days O are displayed
(maximum of 4 dates). In the screen
example, irrigation will be blocked
from occurring on July 3rd & 4th, as
well as Dec 24th and 25th as there
are parties planned in the yard on
those specic dates.
!
NOTE: Event Day Off dates can
be entered in any order. The ESP-
SMT controller will block irrigation
based on the chronological order
of the dates listed on the screen
independent of the Allowed
Watering Days entered in the
Configure Controller Section.
!
NOTE: Do not press the - button
when the current date appears
on the screen as this date will
be canceled and dashes will re-
appear on the screen.
Short Circuit Test
Allows you to run a test to validate that
the wiring is working properly.
D
If you would like to conduct a Short
Circuit Test to validate the wiring
integrity on a zone by zone basis:
Press the UP and Down arrow
button(s) until Short Circuit Test is
blinking on the display; then press
the SELECT button.
E
The SHORT CIRCUIT TEST screen will
appear and a Short Circuit Test will
be initiated;
a. The short circuit test identies on
a zone by zone basis, the electrical
integrity of each zone as “Good”,
“Short” or “Not Present”.
b. If you want to run the short circuit
test again after you’ve identied and
xed a problem, press the RETEST
button.
d.

c.

b.
5
a.
E
D
EVENT DAYS OFF
03 Jul 2009
04 Jul 2009
24 Dec 2009
25 Dec 2009
NEXTBACK
SPECIAL FEATURES
Event Days Off
Adv. Controller Setup
Advanced Zone Setup
SELECT
Save Contractor Dflts
Set Units
Short Circuit Test
SHORT CIRCUIT TEST
MV-G 4-G 8-N 12-N
1–G 5-G 9-N 13-N
2-G 6-G 10-N
3-G 7-S 11-N
S-Shorted G-No Short
N-Not Present
RETESTBACK
MV-G 4-G 8-N 12-N
1–G 5-G 9-N 13-N
2-G 6-G 10-N
3-G 7-G 11-N
N-Not Present
RETESTBACK
SHORT CIRCUIT TEST
S-Shorted G-No Short
