ESP-SMT Smart Modular Control System
57

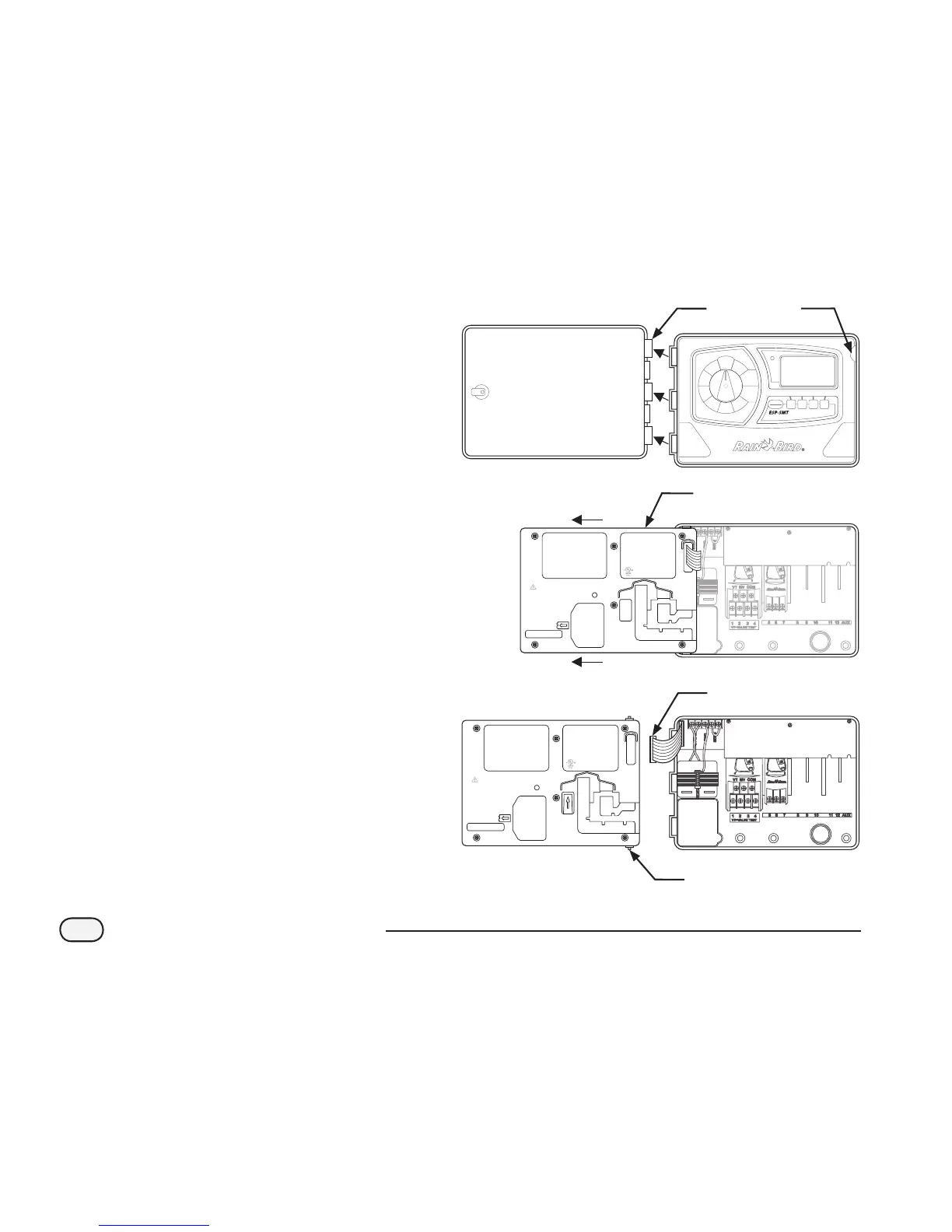

Mounting the Controller
Before you mount the controller, we recommend you
remove the door and face panel. Although these steps are
not absolutely necessary, they will make installation easier.
A
If necessary, unlock the door with the supplied key.
Open the door of the cabinet and swing it to the left.
B
Remove the door from the hinges.
C
Open the face panel by grasping the crescent shaped
nger hold on the top right side of the cabinet. Swing
the face panel to the left.
D
Disconnect the ribbon cable from the panel by gently
pulling the connector up and away from the socket.
Avoid pulling directly on the ribbon cable.
E
Slip the front panel hinge pins out of the cabinet
sockets. Remove the bottom of the panel rst.
F
CAUTION: When re-assembling the connector,
observe the keyed orientation of the connector. If
correctly connected, the red line on the cable will be
on the top side.
