3.5 Tools

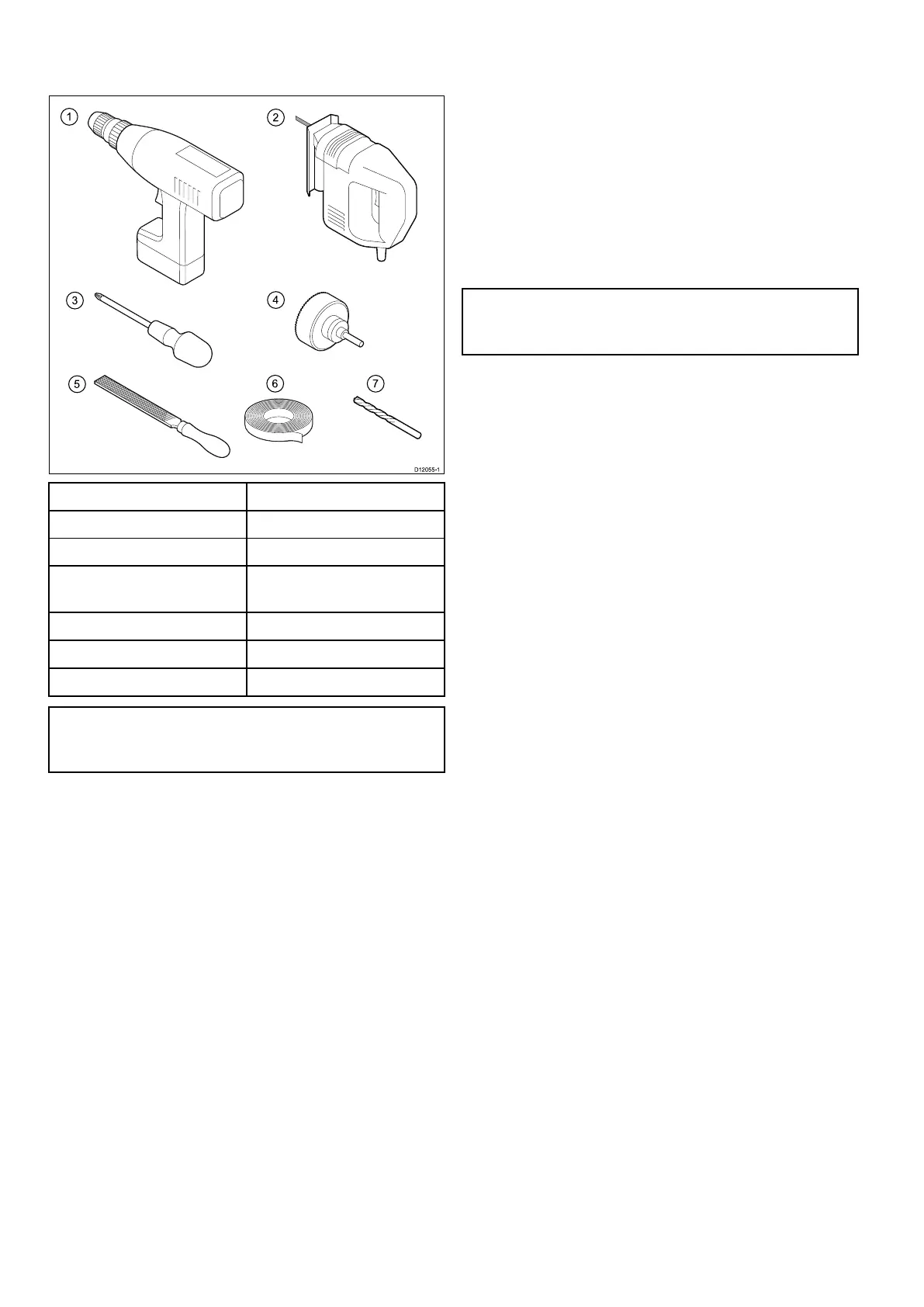

Tools required for installation
1
2
3
4
5
6
7
D12 055 -1
1. Power drill
2. Jig saw
3.
Screwdriver
4.
Suitable size (10 mm to 30
mm) hole cutter
5.
File
6. Adhesive tape
7.
Drill bit of appropriate size
(1)
Note: (1) Drill bit size is dependent on the
thickness and type of material that the unit is to
be mounted on.
3.6 System protocols
Your product can be connected to various products
and systems to share information and so improve
the functionality of the overall system. These
connections may be made using a number of
different protocols. Fast and accurate data collection
and transfer is achieved by using a combination of
the following data protocols:
• SeaTalk
ng®
• NMEA 2000
• SeaTalk
Note: You may nd that your system does not
use all of the connection types or instrumentation
described in this section.
Seatalk
ng®
SeaTalk
ng
(Next Generation) is an enhanced
protocol for connection of compatible marine
instruments and equipment. It replaces the older
SeaTalk and SeaTalk
2
protocols.
SeaTalk
ng
utilizes a single backbone to which
compatible instruments connect using a spur. Data
and power are carried within the backbone. Devices
that have a low draw can be powered from the
network, although high current equipment will need
to have a separate power connection.
SeaTalk
ng
is a proprietary extension to NMEA 2000
and the proven CAN bus technology. Compatible
NMEA 2000 and SeaTalk / SeaTalk
2
devices can
also be connected using the appropriate interfaces
or adaptor cables as required.
NMEA 2000
NMEA 2000 offers signicant improvements over
NMEA 0183, most notably in speed and connectivity.
Up to 50 units can simultaneously transmit and
receive on a single physical bus at any one time,
with each node being physically addressable. The
standard was specically intended to allow for
a whole network of marine electronics from any
manufacturer to communicate on a common bus via
standardized message types and formats.
SeaTalk
SeaTalk is a protocol which enables compatible
instruments to connect to each other and share data.
The SeaTalk cable system is used to connect
compatible instruments and equipment. The cable
carries power and data and enables connection
without the need for a central processor.
Additional instruments and functions can be added to
a SeaTalk system, simply by plugging them into the
network. SeaTalk equipment can also communicate
with other non-SeaTalk equipment via the NMEA
0183 standard, provided a suitable interface is used.
