10.3 Large view

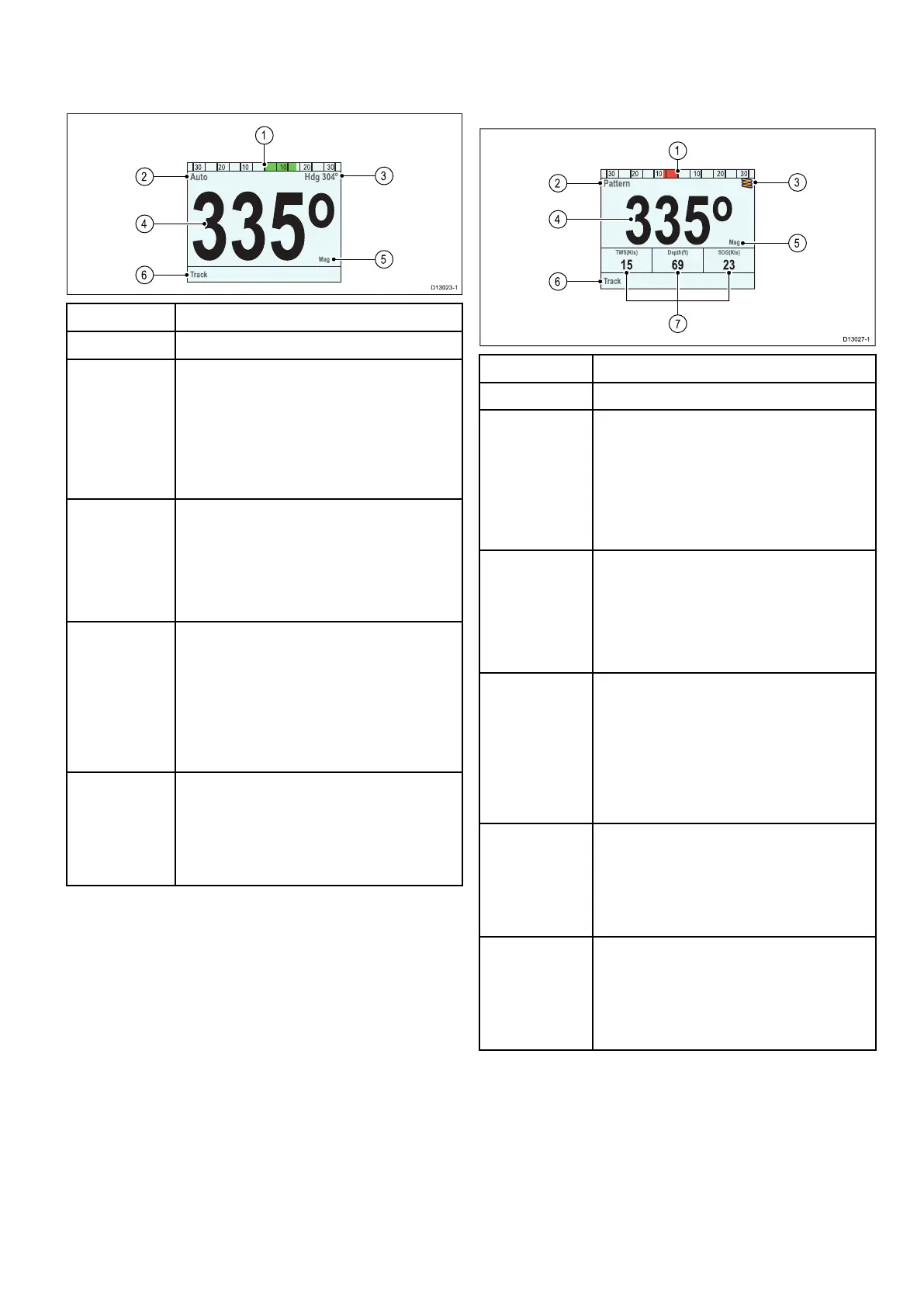

The Large view has been optimized to provide the
largest possible sized text for heading data.
335
o
Track
30 20 10 10 20 30
Auto Hdg 304
o
Mag
D13023-1
2
4
6
3
5
1
1 Rudder position
2 Pilot Mode
3
• Current Heading — Auto
• Destination waypoint name — Track
• Locked wind angle — Wind Vane
• Pattern symbol — Pattern
• Power Steer symbol — Power Steer
4 Heading
• Current Heading — Standby and Power
Steer
• Locked Heading — Auto, Track, Wind
Vane and Pattern
5
Heading
• Magnetic
• True
The type of heading is determined by the
language selection during the start up
wizard.
6
Shortcut key — Left Soft button
• Track (default)
• Pattern
• Wind Vane
10.4 Standard view
The Standard view provides large sized heading
data combined with data boxes which provide further
information.
335
o
Track
15 69 23
30 20 10 10 20 30
Mag
TWS(Kts ) Depth(ft) SOG(Kts)
Pattern
D13027-1
2
4
6
3
5
1
7
1 Rudder position
2 Pilot Mode
3
• Current Heading — Auto
• Destination waypoint name — Track
• Locked wind angle — Wind Vane
• Pattern symbol — Pattern
• Power Steer symbol — Power Steer
4 Heading
• Current Heading — Standby and Power
Steer
• Locked Heading — Auto, Track, Wind
Vane and Pattern
5
Heading
• Magnetic
• True
The type of heading is determined by the
language selection during the start up
wizard.
6
Shortcut key — Left Soft button
• Track (default)
• Pattern
• Wind Vane
7
Data Boxes x 3
• TWS (default)
• Depth (default)
• SOG (default)
