6.1 Pilot controls

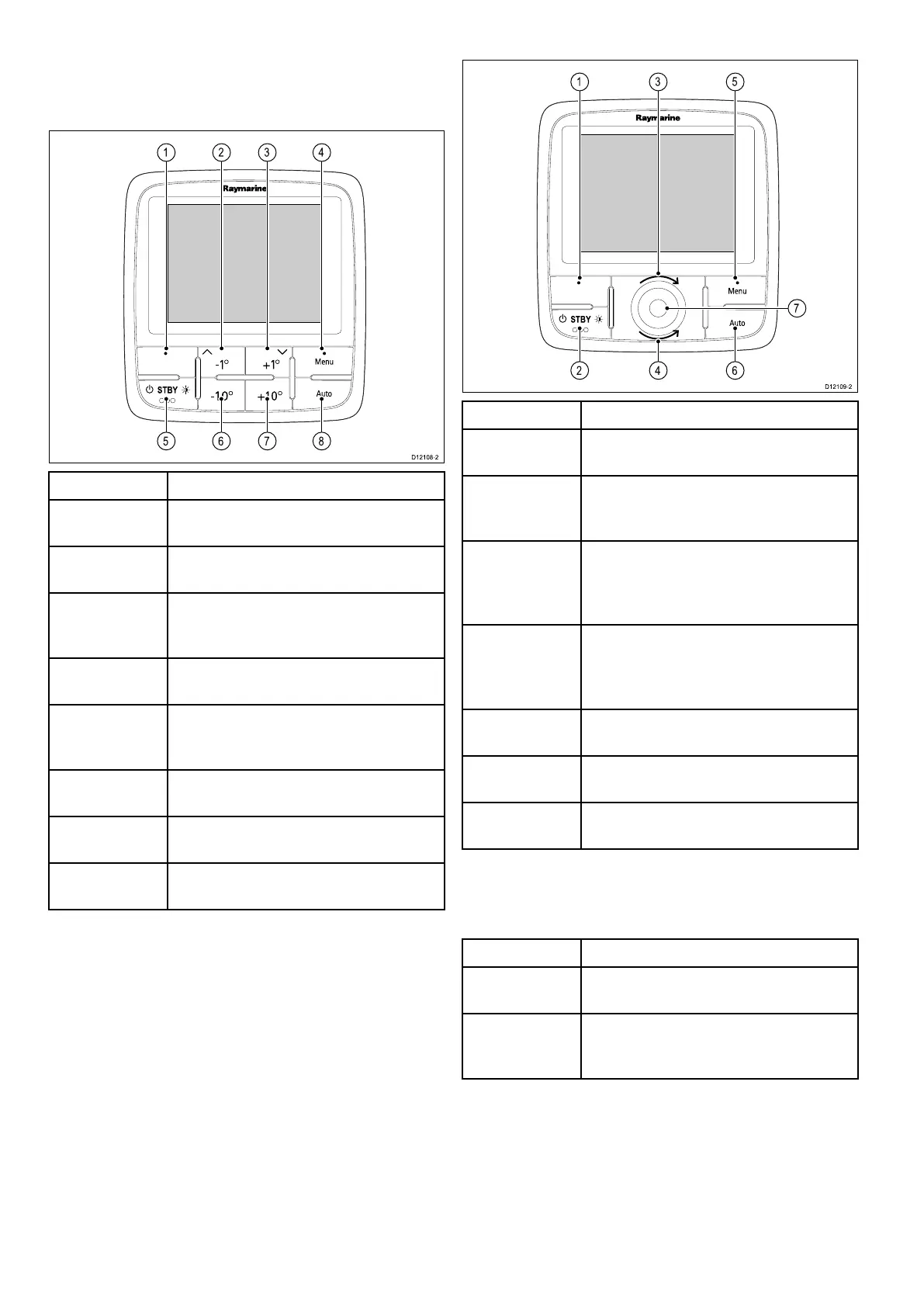

Control layout and functions.
p70 – 8 button pilot controller
D12108-2
STBY
5 6 7 8
1 2 3 4
Item Description
1.
LEFT SOFT BUTTON
Cancel, Back, mode selection.
2.
UP BUTTON / -1
Up navigation, Adjust Up, Decrease angle.
3.
DOWN BUTTON / +1
Down navigation, Adjust Down, Increase
angle.
4.
RIGHT SOFT BUTTON
Menu, Select, OK, Save.
5.
STANDBY BUTTON
Disengage pilot, Manual control, Power,
Brightness.
6.
–10 BUTTON
Decrease angle.
7.
+10 BUTTON
Increase angle.
8.
AUTO BUTTON
Engage Auto pilot.
p70r — rotary pilot controller
STBY
D12109-2
2 4 6
1 3 5
7
Item Description
1.
LEFT SOFT BUTTON
Cancel, Back, mode selection.
2.
STANDBY BUTTON
Disengage pilot, Manual control, Power,
Brightness.
3.
ROTARY CLOCKWISE
Down navigation in list, Adjust Up,
Increase angle (locked heading), adjust
numerical values, power steer.
4.
ROTARY ANTI-CLOCKWISE
Up navigation in list, Adjust Down,
Decrease angle (locked heading), adjust
numerical values, power steer.
5.
RIGHT SOFT BUTTON
Menu, Select, OK, Save.
6.
AUTO BUTTON
Engage Auto pilot.
7.
ROTARY END PUSH BUTTON
Menu, Select, OK, Save.
The pilot controller supports the following
combination button presses:
Combination button press
Buttons Action
STANDBY and
AUTO.
Puts pilot in to Wind Vane mode.
–1 and –10
or
+1 and +10.
AutoTack (in wind vane mode), AutoTurn
32
p70 / p70R
