9.2 Mode menu
Pilot modes are accessed from the Mode menu. The
available modes are determined by the autopilot
system and the selected Vessel Hull Type.
The modes available are shown below.
Evolution SPX SmartPilot
Pattern Power vessel Motor and Fishing
vessels
Track all all
Wind vane
(2)
Sailing vessel only Sailing vessel only
Power Steer
(1)
p70Rs and joystick
only
p70Rs and joystick
only
Note:
•
(1)
Power steer mode is only available on vessels
tted with a rudder reference transducer.
•
(2)
Wind vane mode is only available if there is
a connect source of wind data.
The mode menu also provides a shortcut key option
that enables a mode to be assigned to the Left Soft
button (The default option is Track).
9.3 Patterns
Fishing patterns are available, that can be used
with their default settings or adjusted to your own
preference. Fishing patterns require GPS data to be
available on your system.

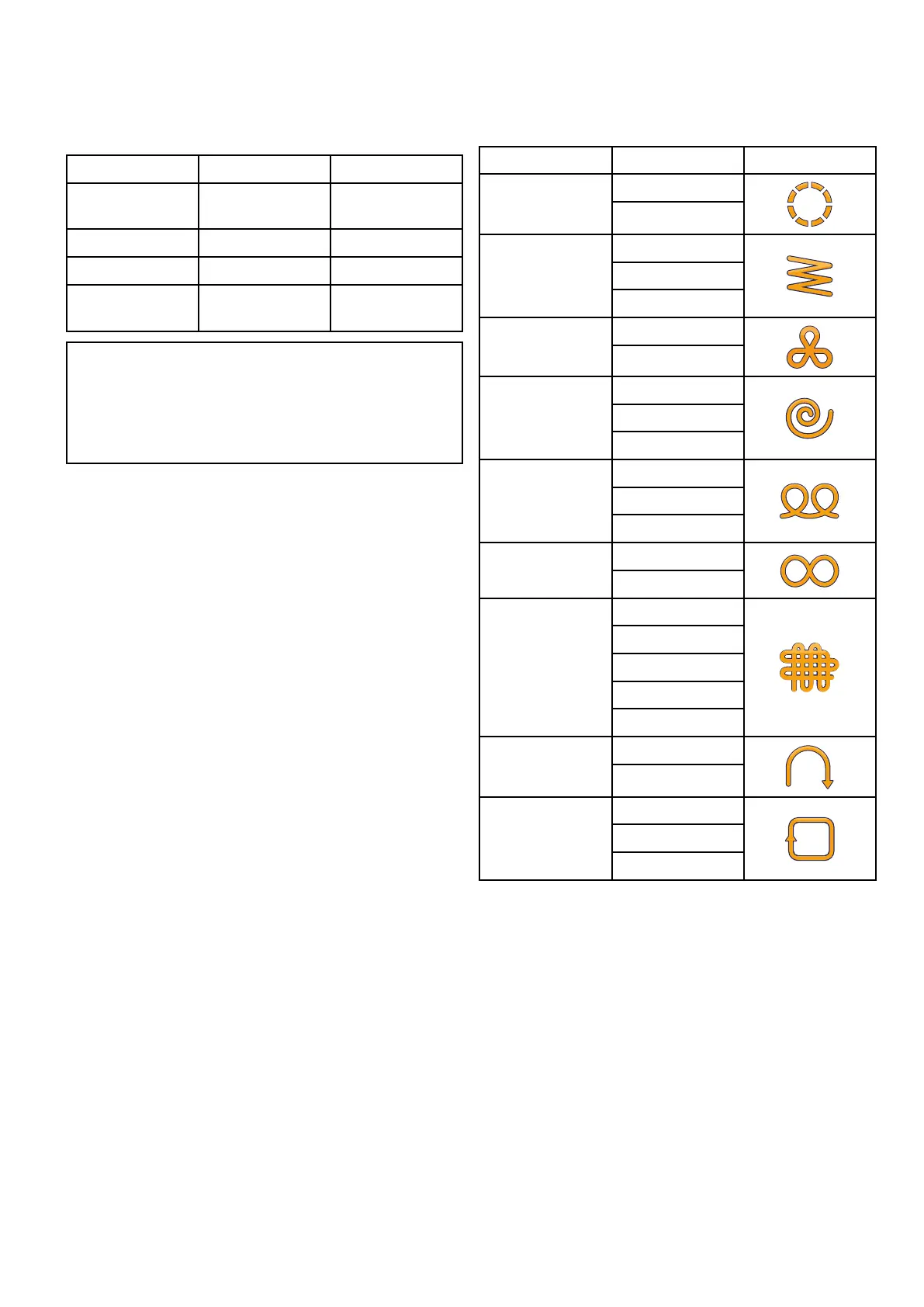

Pattern Adjustment Icon
Direction
Circle
Radius
Direction
Angle
Zig Zag
Length
Direction
Cloverleaf
Radius
Direction
Radius
Spiral
Increment
Direction
Radius
Circle against
Distance
DirectionFigure 8
Radius
Direction
Width
Height
Width increment
Pattern search
Height increment
Direction180 turn
Radius
Direction
Width
Box search
Height
Using a shing pattern
1. Press the RIGHT SOFT button to open the menu.
2. Using the UP and DOWN buttons highlight Mode
and press SELECT.
3. Using the UP and DOWN buttons highlight
Pattern and press SELECT.
4. Using the UP and DOWN buttons highlight the
shing pattern you wish you use and press
SELECT.
5. The pattern settings screen shall be displayed,
showing the parameters currently set for the
selected pattern. If you want to change any of
the parameters:
i. Select the parameter you want to change,
then press EDIT.
ii. Use the UP and DOWN buttons to set the
value you want, then press SAVE to save
Pilot modes 61
