Raymarine p70r User Manual

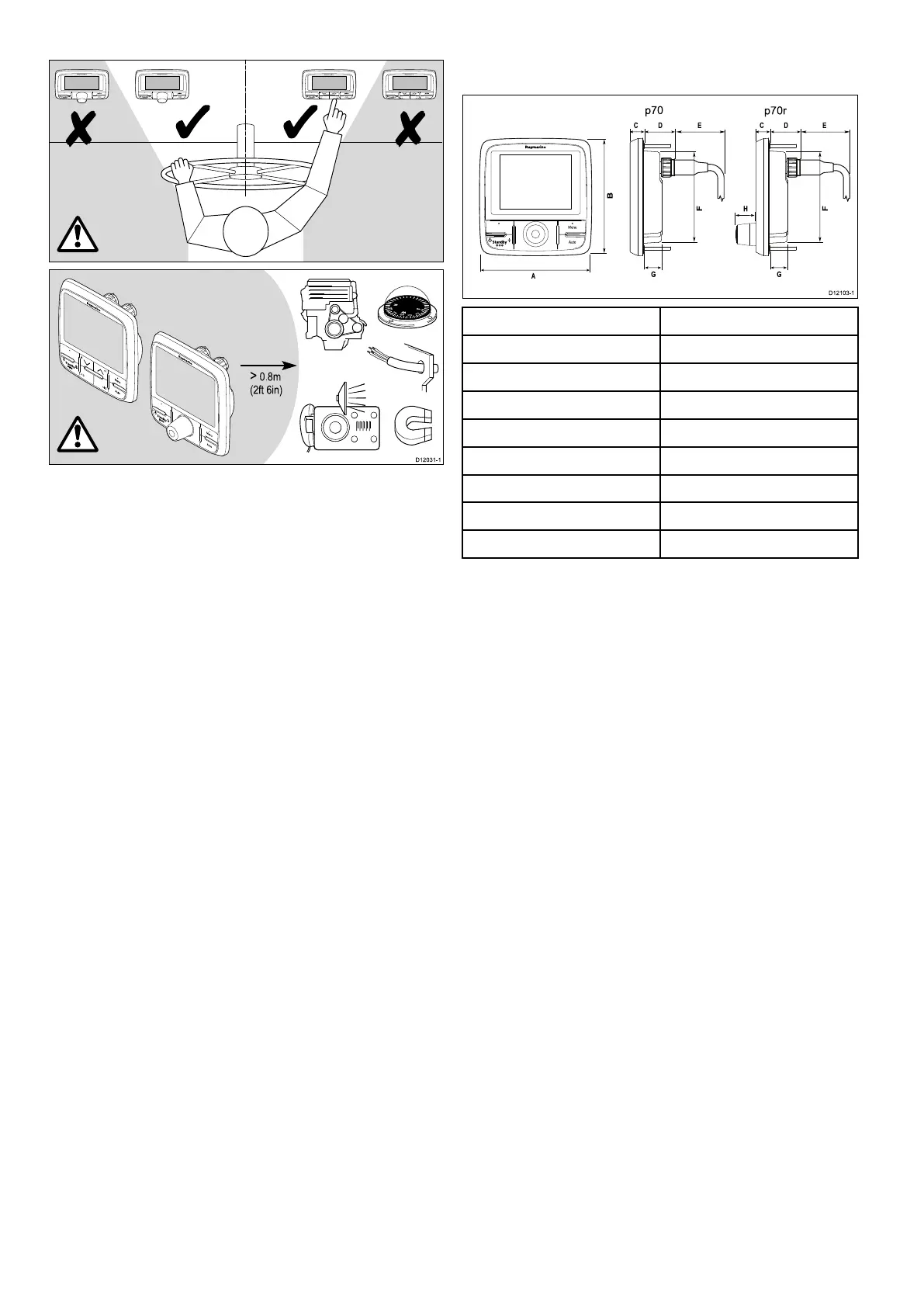

Site Requirements
>
0.8m
(2ft 6in)
D12 031 -1
Site requirements for the p70 / p70r Pilot controller
are as follows:
• There should be no obstacle between the user
and the pilot controller.
• The pilot controller should be situated at least 0.8
m from an engine, compass, high current power
cables, or any magnetic device.
Viewing angle considerations
As display contrast, color and night mode
performance are all affected by the viewing angle,
Raymarine recommends you temporarily power up
the display when planning the installation, to enable
you to best judge which location gives the optimum
viewing angle.
3.9 Unit dimensions
p70 and p70r dimensions
A
B
H
p70
p70r
C
F
D
G
C
F
D
G
E E
D12 103 -1
Item Description
A.
110 mm (4.33”)
B.
115 mm (4.52”)
C. 14 mm (0.55”)
D.
30 mm (1.18”)
E.
35 mm (1.38”)
F.
90 mm (3.54”)
G. 17 mm (0.67”)
H.
20.6 mm (0.81”)
20
p70 / p70R
