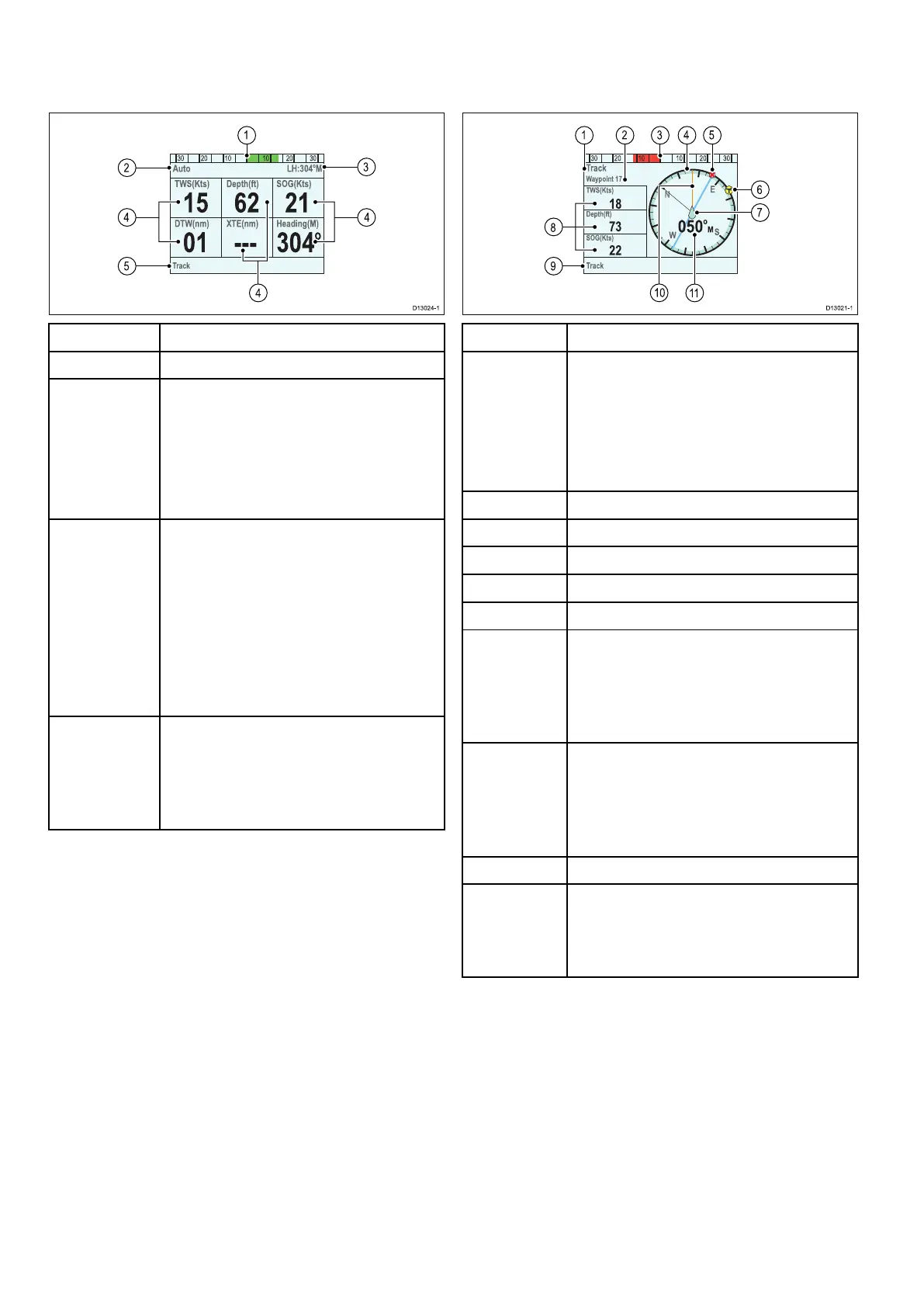

10.5 Multiple view
The Multiple view includes multiple data boxes for
displaying information.
Track
30 20 10 10 20 30
Auto LH:304
o
M
TWS(Kts)
DTW(nm)
Depth(ft)
XTE(nm)
SOG(Kts)
Heading(M)
15
01
62
---
21
304
o
D13024-1
2
5
3
1
4
4
4
1 Rudder position
2 Pilot Mode
3
• Current Heading — Auto
• Destination waypoint name — Track
• Locked wind angle — Wind Vane
• Pattern symbol — Pattern
• Power Steer symbol — Power Steer
4 Data Boxes x 6
• TWS (default)
• Depth (default)
• SOG (default)
• DTW (default)
• XTE (default)
• Heading (default)
5
Shortcut key — Left Soft button
• Track (default)
• Pattern
• Wind Vane
10.6 2D View
The 2D view includes a full compass dial and data
boxes for displaying information.
Track
30 20 10 10 20 30
Track
Waypoint 17
TWS(Kts)
Depth(ft)
SOG(Kts)
N
E
W
S
050
o
M
18
73
22
D13021-1
9
3 4 51 2
8
6
7
10
11
1 Pilot Mode
2
• Current Heading — Auto
• Destination waypoint name — Track
• Locked wind angle — Wind Vane
• Pattern symbol — Pattern
• Power Steer symbol — Power Steer
3 Rudder position
4 Full compass
5
Destination waypoint
6 Wind direction indicator
7
Vessel position
8 Data Boxes x 3
• TWS (default)
• Depth (default)
• SOG (default)
9
Shortcut key — Left Soft button
• Track (default)
• Pattern
• Wind Vane
10 Track line
11
• Current heading — Standby and Power
Steer
• Locked heading — Auto, Wind Vane,
Track and Pattern
72
p70 / p70R
