4-4
FlexPak 3000 DC Drive OIM User’s Guide
4.2.3 Accessing the Parameters
Parameters are accessed through the menus. The menu paths to get to parameters
are provided:
•
In appendix A of this manual.
•
As part of the parameter descriptions in the software manual.
Some parameters and parameter options are only available if the appropriate option is
installed. For example, the
ANALOG
IN
1 option for
TRIM
REFERENCE
SELECT
(P.108) is
only displayed if an I/O Expansion kit is installed. The cursor changes to a lock (
)
for
parameters or options that are not available.
If you exit program mode from a parameter entry screen, you are returned to that
screen when you come back to program mode.
Basics of Accessing a Parameter
Step 1. Select the menu that contains the parameter.
Step 2. Press . The next menu or parameter list is displayed. Repeat steps 1
and 2 for each menu until the parameter list you want is displayed.
Step 3. Move the cursor to the parameter you want to change. Press .
The parameter value entry screen is displayed. It allows you to look at or change
parameter values.
Example of Accessing the
METER
OUT
1
SELECT
Parameter
Step 1. At the Main Menu, press to move the cursor ( ) to Input/Output as
shown in figure 4.5.
Step 2. Press . The Input/Output menu is displayed, as shown in figure 4.6.

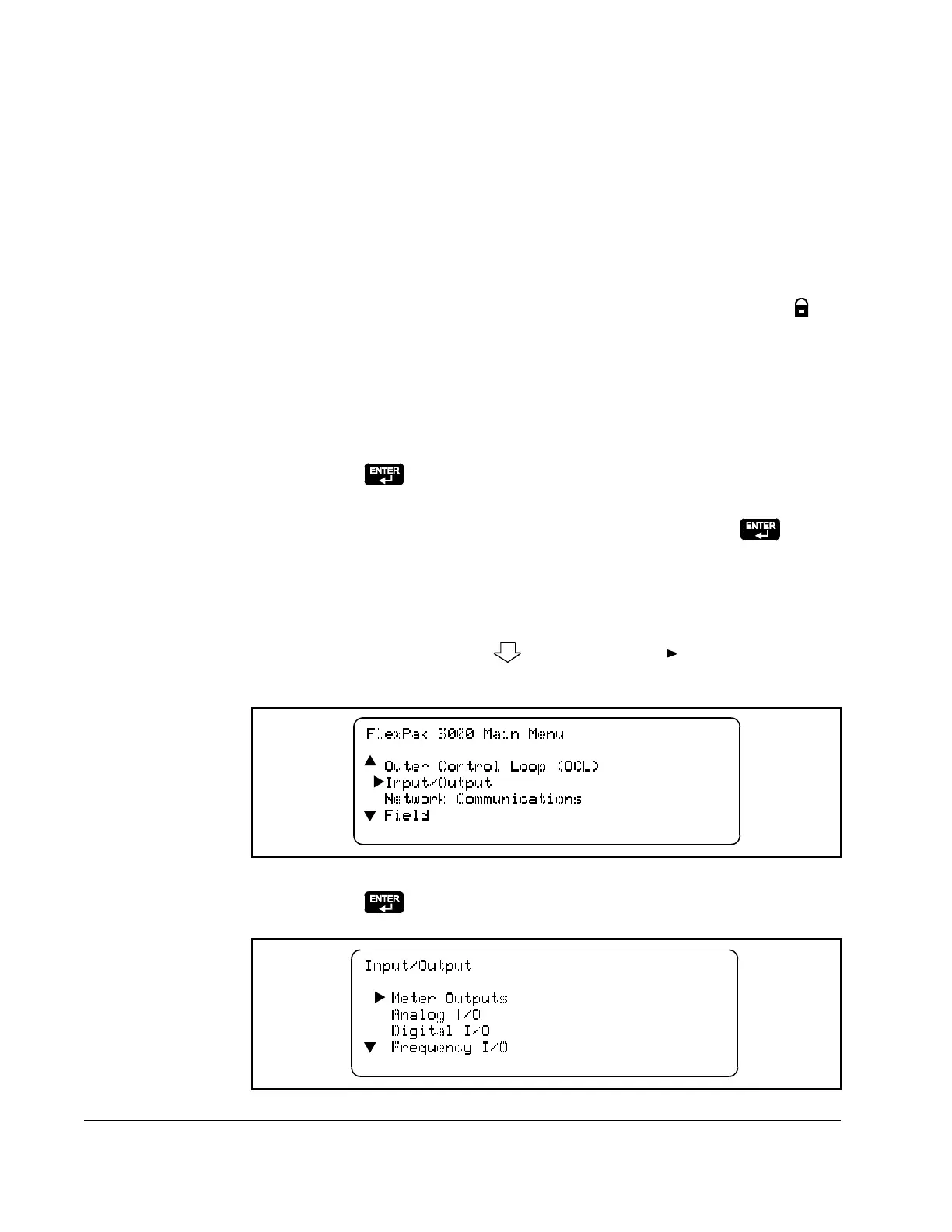

Figure 4.5 – Selecting the Input/Output Menu
Figure 4.6 – Input/Output Menu
