Basics of Configuring the Drive Using the OIM
4-5
Step 3. Make sure the cursor is pointing at Meter Outputs. Press . The Meter
Outputs menu is displayed, as shown in figure 4.7.
At this point, you can view or change parameter values. See the next sections.
4.2.4 Viewing Parameter Values
In the parameter lists, parameter values are shown to the right of the parameter name,
as shown in figure 4.7. After looking at the parameter values, press to return to
the previous menu.
Output parameters are updated from the drive approximately twice per second.
4.2.5 Changing Parameter Values
You can change the values of input parameters in parameter value entry screens. You
cannot change the value of output parameters. Figure 4.8 shows an example of the
parameter entry screen for
ACCELERATION
TIME
(P.001).

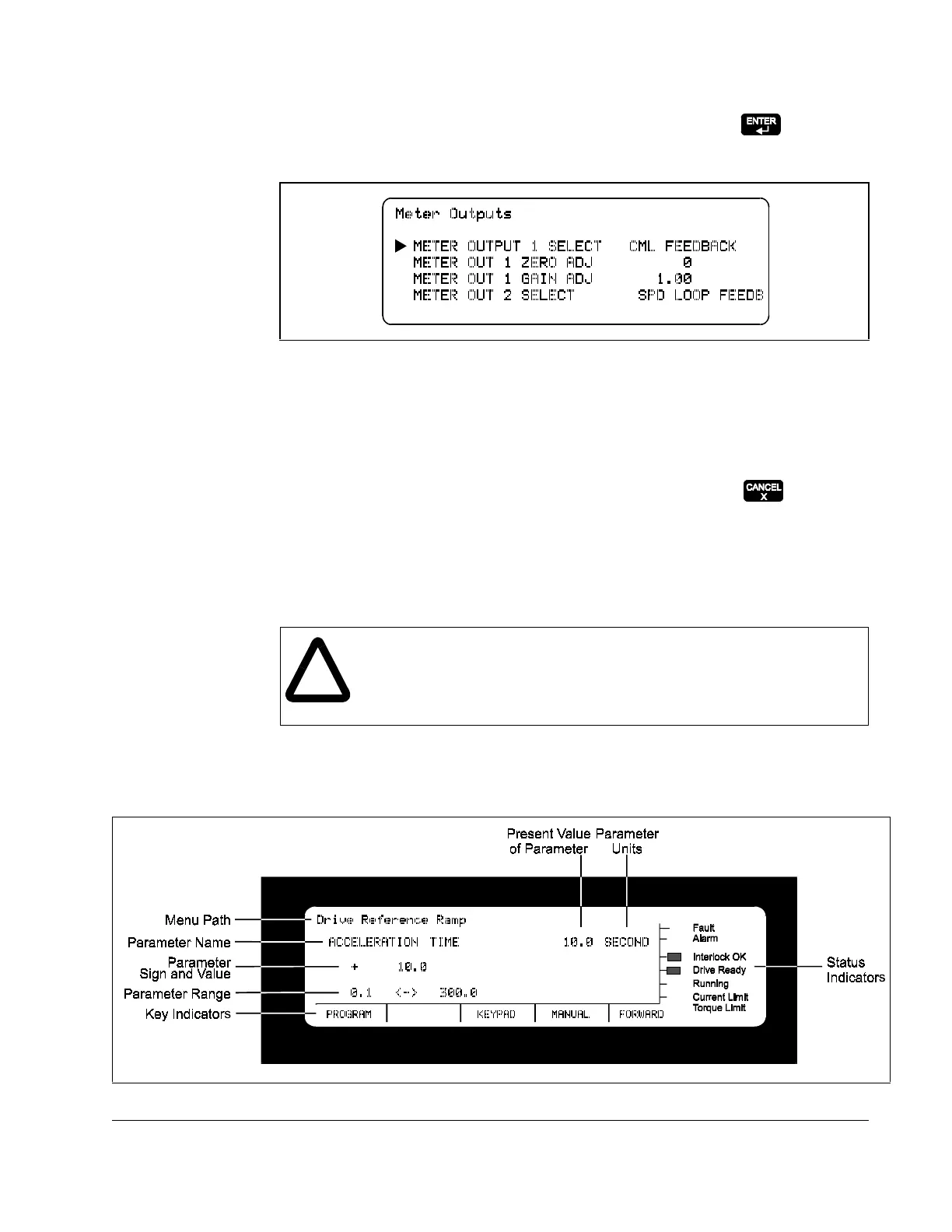

Figure 4.7 – Meter Outputs Menu
!
ATTENTION:
Only qualified electrical personnel familiar with the
construction and operation of this equipment and the hazards involved
should install, adjust, operate, or service this equipment. Read and
understand this section in its entirety before proceeding. Failure to
observe this precaution could result in severe bodily injury or loss of life.
Figure 4.8 – Example of a Parameter Entry Screen
