1-10. Air Flow Distance Chart
4-Way Air Discharge Semi-Concealed Type
If an ultra long-life  lter or high performance  lter (65% by colorimetric method) is installed, the vertical air  ow
distance for heating and cooling will be approximately 0.2 m less than the values shown in the graph below.
If a high performance  lter (90% by colorimetric method) or electronic  lter is installed, the vertical air  ow
distance for heating and cooling will be approximately 0.5 m less than the values shown in the graph below.
•
•
0
54321012345
1
2
3
0
1
2
3
0
54321012345
1
2
3
0
1
2
3
1.5m/s
1.0m/s
0.5m/s
0.3m/s
33
27
24
30
0
54321012345
1
2
3
0
1
2
3
0
54321012345
1
2
3
0
1
2
3
1.5m/s
1.0m/s
0.5m/s
0.3m/s
20
24
26
22

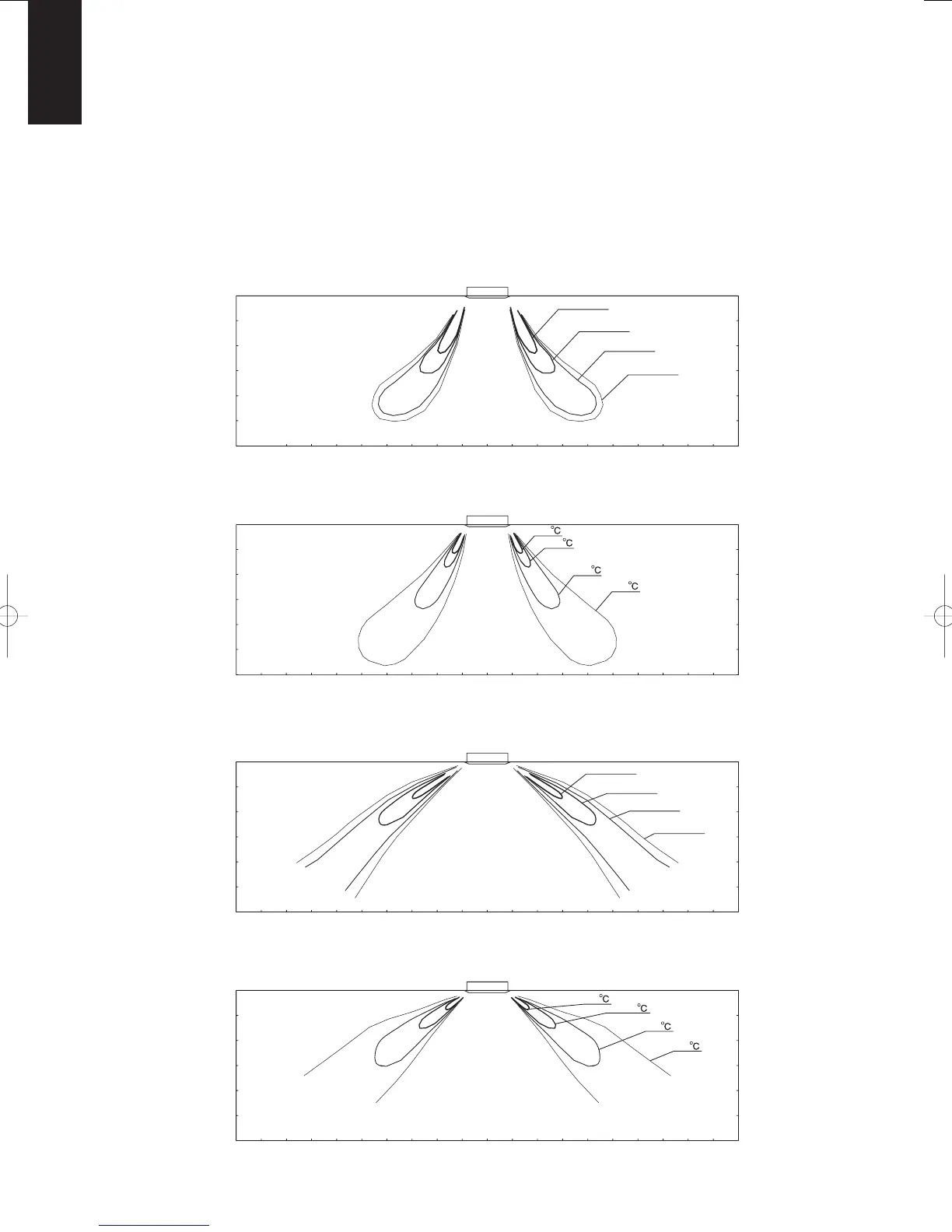

SPW-XDR124/164/184GH56(A/B), X125/165/185H
Heating : Distribution of wind velocity
(Strong wind : Discharge angle approx.65°) (Room temperature approx.20°C)
Vertical air  ow distance (m)
Horizontal air  ow distance (m)
Heating : Distribution of temperature
Cooling : Distribution of wind velocity
Cooling : Distribution of temperature
(Strong wind : Discharge angle approx.65°) (Room temperature approx.20°C)
Vertical air  ow distance (m)
Horizontal air  ow distance (m)
(Strong wind : Discharge angle approx.30°) (Room temperature approx.27°C)
Vertical air  ow distance (m)
Horizontal air  ow distance (m)
(Strong wind : Discharge angle approx.30°) (Room temperature approx.27°C)
Vertical air  ow distance (m)
Horizontal air  ow distance (m)
