8
Optional Controller (Remote Controller)
Wireless Remote Controller / RCS-SH80BG.WL / RCS-TRP80BG.WL / RCS-SS80BG.WL / RCS-BH80BG.WL
/ RCS-XM18BG.WL
One remote control can control a group of up to eight indoor units.

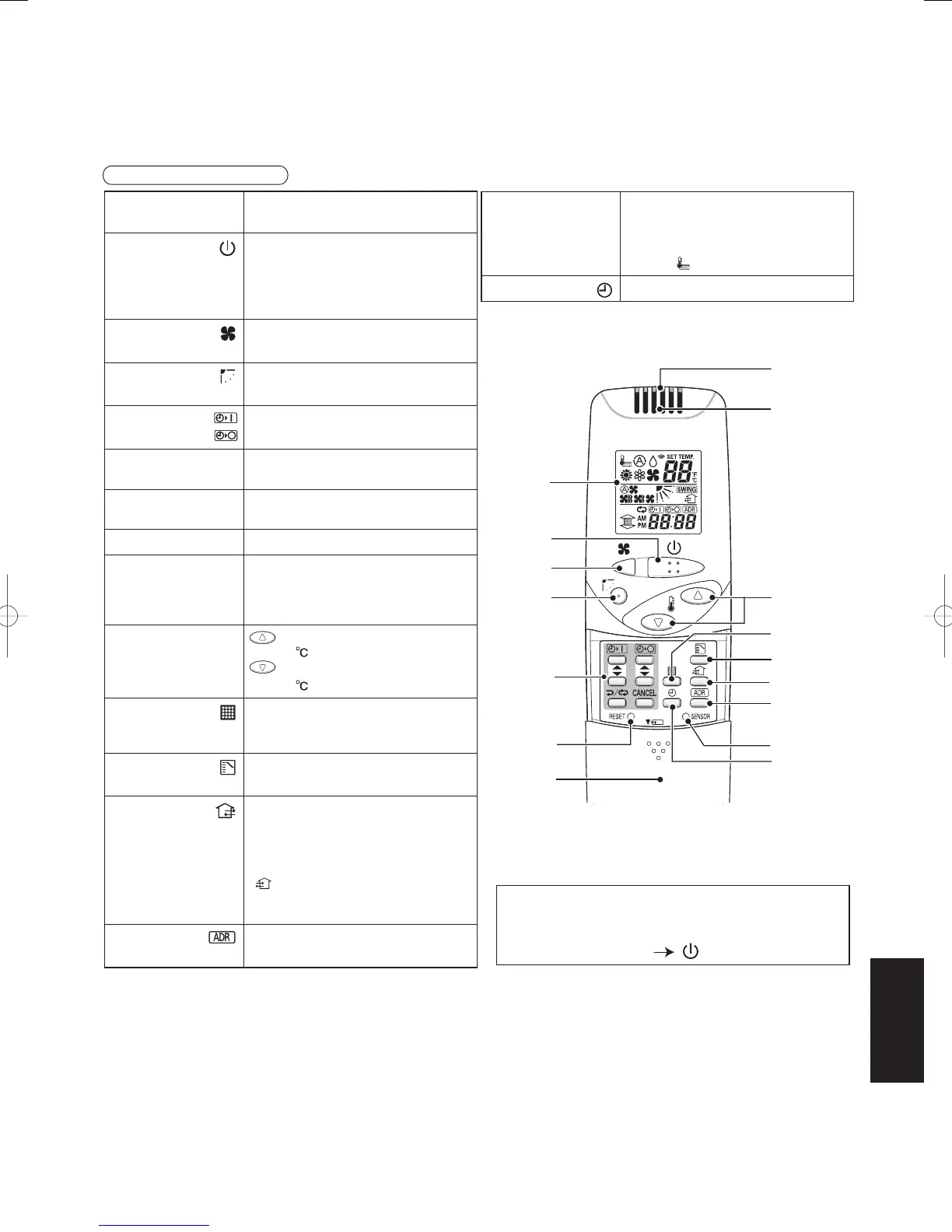

8-3. Names and Functions
1. Operation Display Displays the operation status.
(The gure shows all the statuses.)
2. Start/Stop
button
Pressing this button once starts and
pressing again stops the operation.
The auto- ap display may be
different, depending on the installed
unit.
3. Fan speed
button
4. Swing/Wind
Direction button
5. Timer setting
button
Use for operating with a timer.
6. Reset button Use this button after changing the
batteries.
7. Cover Press at the top center and then slide
down.
8. Transmitter
9. Remote control
sensor
Detects the temperature at the remote
controller when detection has been
switched to the remote control by the
sensor button.
10. Temperature
setting buttons
raises the temperature setting
1
at a time.
lowers the temperature setting
1 at a time.
11. Filter button RCS-BH80BG.WL
Press to turn off the lter lamp on the
receiver.
12. Mode Select
button
Press to switch the operation mode.
13. Ventilation
button
Use this when connected to an
aftermarket fan. Pressing this button
starts and stops the fan. When the air
conditioner is started or stopped, the
fan starts or stops at the same time.
(
appears on the display of the
remote control when the fan is
operating.)
14. Address
button
REMOTE CONTROLLER
15. Sensor button Use this when switching to detect the
temperature at the remote control. At
shipping the default setting is set to
detect the temperature at the unit. At
this time
is shown on the display.
16. Clock button Use this when setting the clock.
From this page on the names of remote control
buttons will be abbreviated as the illustration of the
“button”.
E.g.: Start/Stop button
8-3
SM830160-03ClassicPAC-iA4.ind33SM830160-03ClassicPAC-iA4.ind33 2010/02/1610:31:142010/02/1610:31:14
