2
2-11
Varistor (black)
VA002
Fuse (0.5A)
CHK (2P plug)
SW103
2P connector (brown)
2P connector (blue)
ON
OFF
TEST
2 HP
TEST
ON
OFF
3 HP
Fuse (0.5A)
2P connector (blue)
2P connector (brown)
SW103
Varistor (black)
VA002
CHK (2P plug)
Up side
HIC
Temperature
sensor
AUTO ADD (CN041)
System address
Rotary switch (S002)
TERMINAL (S010)
JP007
System address
DIP switch (S003)
RC-P (CN032,RED)
LED1
LED2
PUMP DOWN (CN042)
EEPROM (IC006)
TO (CN022, WHT)
Bottom
side
C2 (CN020, WHT)
MOV (CN25, WHT)
C1 (CN021, BLK)
TD, TS (CN023, WHT)
EXCT (CN026, RED)
SILENT (CN028, WHT)
RC-P (CN032, RED)
FAN (CN030, WHT)
ROM (CN012, WHT)
OC (CN013, BLU)
EMG (CN014, BRN)
20S (CN09, WHT)
FUSE (25A, F003)
SPW-C486VH
F101
MOV
(CN025, WHT)
TD (CN024, BLK)
TO (CN023, BLK)
TS (CN022, RED)
Varistor (VA002)
JP007
Varistor (VA001)
Terminal plug (CN015, BLK)
EMG (CN014, BRN)
OC (CN013, BLU)
ROM (CN012, WHT)
EEPROM (IC007)
PRY (CN110, YEL)
C2 (CN020, WHT)
C1 (CN021, WHT)
SPW-C256/366VH
System address rotary switch
Terminal plug (CN015, BLK)
OC (CN013, BLU)
EMG (CN014, BRN)
JP007
ROM (CN012, WHT)
EEPROM (IC007)
TD (CN024, BLK)
TO (CN023, BLK)
MOV(CN025, WHT)
SPW-C256/366VH8
SPW-C486/606VH8
System address 10s digit and 20s digit
DIP switch
Automatic address
button (black)
Terminal plug (black)
C2 (CN020, WHT)
C1 (CN021, WHT)
TS (CN022, RED)
OPERATION
TIMER STANDBY
ON
OFF
TEST

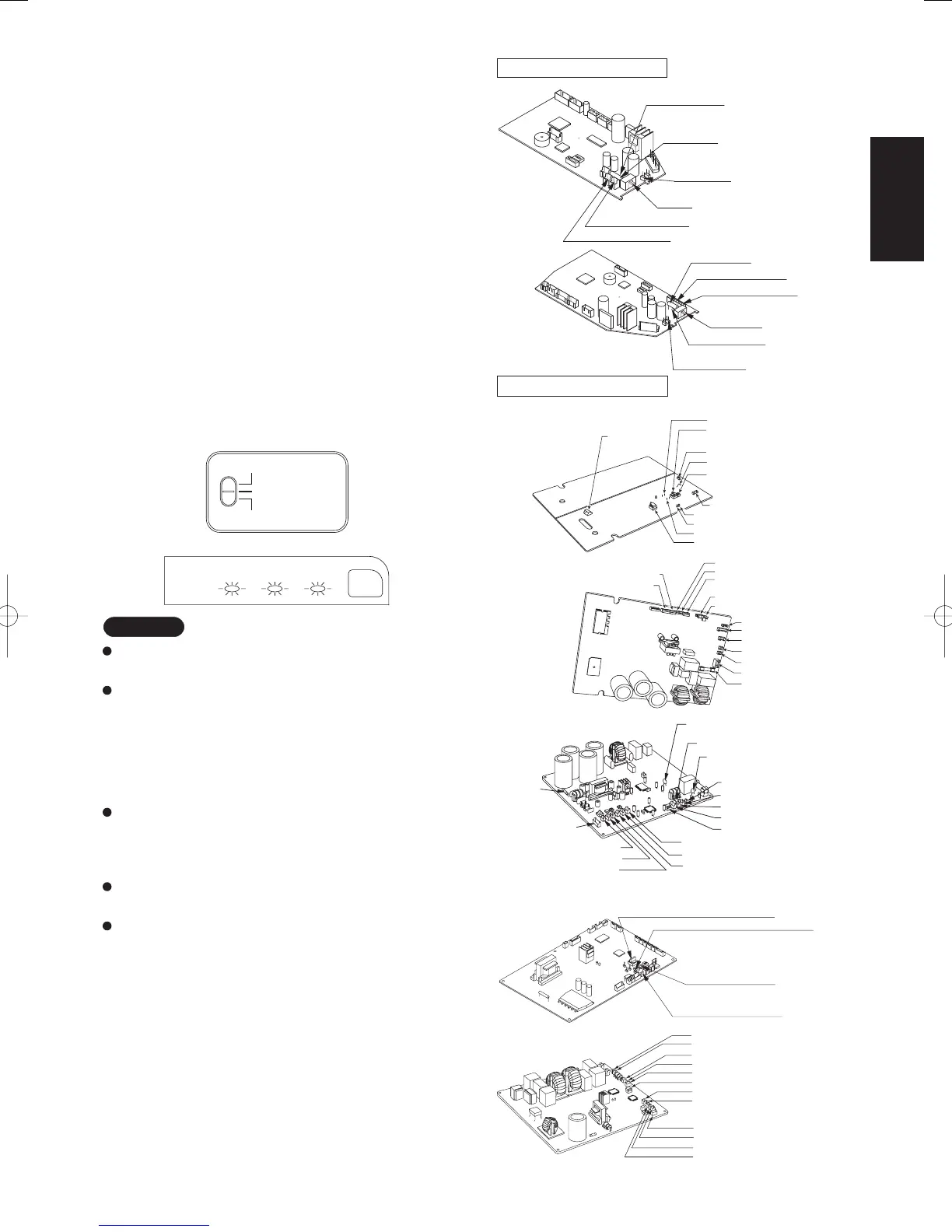

2-13. Test Run
Using the control unit
(1) Change the indoor control unit switch from
“ON”
J
“TEST”.
(The outdoor unit will not operate for 3 minutes
after the power is turned ON and after operation is
stopped.)
(2) All the indicator lamps blink while the test run is in
progress.
(3) Temperature control is not possible during the test
run.
(4) If correct operation is not possible, the trouble will
be indicated by the indicator lamps. Refer to “Table
of Self Diagnostic Functions and Corrections” and
correct the problem.
(5) After the test is completed, change the control
unit switch from “TEST”
J
“ON”. Confirm that the
indicator lamps have stopped blinking. (A function is
included which cancels the test run after a 60-minute
timer has elapsed, in order to prevent continuous
test run operation.)
Indoor control unit switch
Indicator lamps
This mode places a large load on the devices. Use it
only for performing test runs.
A test run is not possible if the power is turned ON with
the switch in the TEST position.
After the power has been turned ON, change the
switch once to ON or OFF, then switch it back to the
TEST position.
2-14. Precautions
Request that the customer be present when the test
run is performed. At this time, explain the operation
manual and have the customer perform the actual
steps.
Be sure to pass the manuals and warranty certificate to
the customer.
Check that the 220 – 240 V AC wiring is not connected
to the inter-unit control wiring connector terminal.
* If 220 – 240 V AC is accidentally applied, the
indoor or outdoor unit control PCB fuse (0.5 A for
both indoor and outdoor units) will blow in order to
protect the PCB. Correct the wiring connections,
then disconnect the 2P connectors (indoor: blue)
(outdoor: blue, serial 1) that are connected to the
PCB, and replace them with 2P connectors (indoor:
brown) (outdoor: brown, serial 2).
If operation is still not possible after changing the
brown connectors, try cutting the varistor (black)
(both indoor and outdoor).
(Be sure to turn the power OFF before performing
this work.) (Fig. 2-10)
Indoor unit control PCB
Outdoor unit control PCB
Fig. 2-10
NOTE
