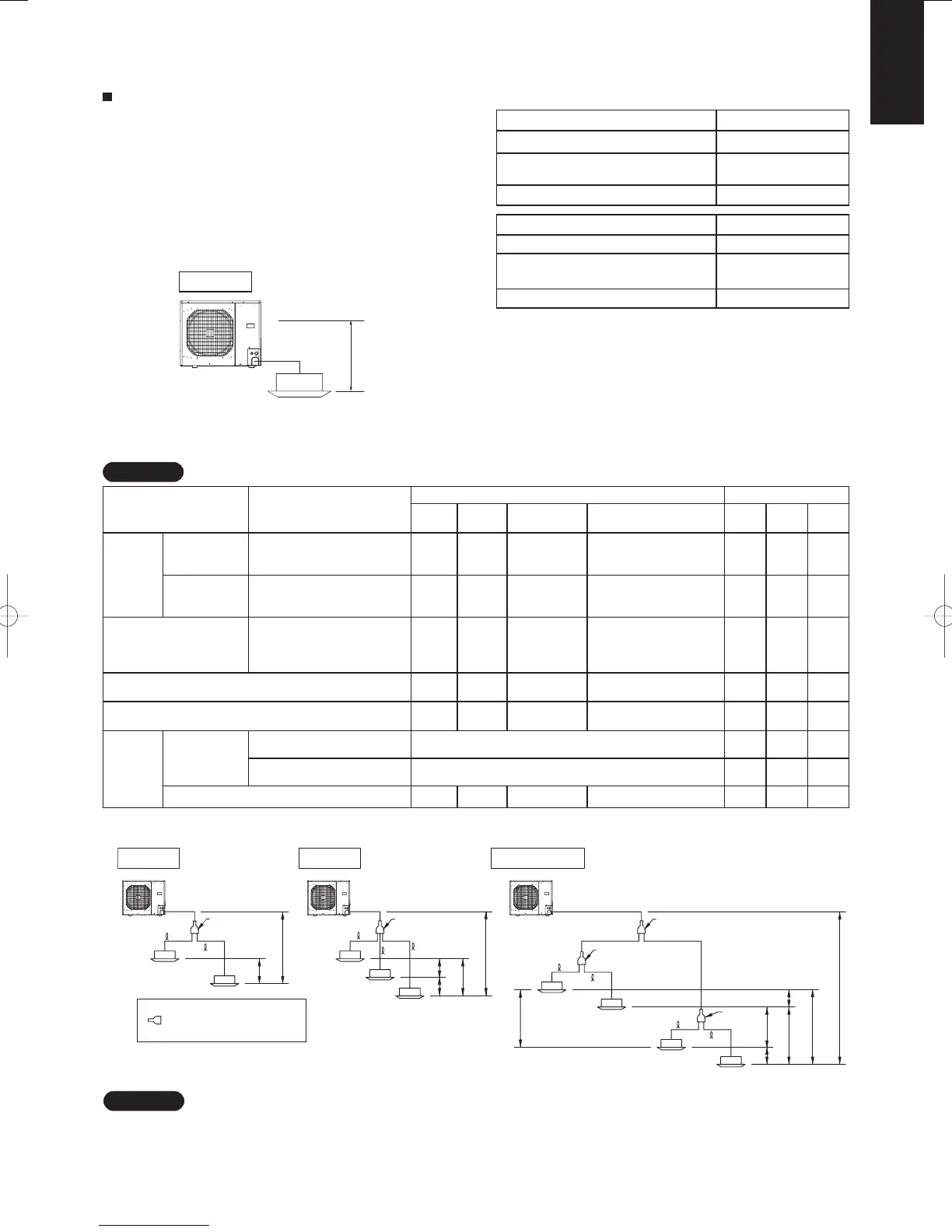

1-12. Installation Instructions
Tubing Length
(A) Single type
z
Keep refrigerant tubing between the indoor and outdoor
units as short as possible.
z
The length of the refrigerant tubes between the indoor
and outdoor units are limited by the elevation difference
between the 2 units. During tubing work, try to make
both the tubing length (L) and the difference in elevation
(H1) as short as possible.
Main tubing L
Single
Table 1-1
Outdoor unit type 25 type
Maximum allowable tubing length 50 m
Charge-less tubing length
(actual length)
3 - 20 (30 : VH8) m
Additional charge per 1 m 40 g
Outdoor unit type 36, 48, 60 types
Maximum allowable tubing length 50 m
Charge-less tubing length
(actual length)
5 - 30 m
Additional charge per 1 m 40 g
(B) Simultaneous operation multi (Twin, Triple, Double-Twin)
NOTE
Because the indoor units run simultaneously, install them within the same room.
NOTE
Item Contents
Symbol Actual length (m)
Single Twin Triple Double-Twin
25
single
25
twin
36,
48,60
Allowable
tubing
lengths
Maximum
allowable
tubing length
One-way length of tubing
from outdoor unit to the most
distant indoor unit
L
L + ℓ1
L + ℓ2
L + ℓ1, L + ℓ2
L + ℓ3
L + L1 + ℓ1, L + L1 + ℓ2
L + L2 + ℓ3, L + L2 + ℓ4
≤ 50 ≤ 40 ≤ 50
Maximum
distribution
tubing length
Maximum length following
the  rst branch point (No. 1
distribution)
- ℓ1, ℓ2 ℓ1, ℓ2, ℓ3
L1 + ℓ1, L1 + ℓ2
L2 + ℓ3, L2 + ℓ4
- ≤ 15 ≤ 15
Maximum branch tubing
length
Difference between the
maximum length and minimum
length in tubing following the
 rst branch point
-
ℓ1>ℓ2
ℓ1 - ℓ2
ℓ1>ℓ2>ℓ3
ℓ1 - ℓ2
ℓ1 - ℓ3
ℓ2 - ℓ3
Max.: L2 + ℓ2
Min.: L1 + ℓ1
(L2 + ℓ4) - (L1 + ℓ4)
- ≤ 10 ≤ 10
Maximum difference between lengths of No. 1 distribution
tubing (double twin)
-- -
L2 > L1
L2 - L1
- - ≤ 10
Maximum difference between lengths of No. 2 distribution
tubing (double twin)
-- -
ℓ2 > ℓ1, ℓ4 > ℓ3
ℓ2 - ℓ1, ℓ4 - ℓ3
- - ≤ 10
Maximum
allowable
height
difference
Maximum
indoor-
outdoor height
difference
If outdoor unit is higher H1 ≤ 30 ≤ 30 ≤ 30
If outdoor unit is lower H1 ≤ 15 ≤ 15 ≤ 15
Maximum height difference between indoor units - H2 H2, H3, H4 H2, H3, H4, H5, H6, H7 - ≤ 0.5 ≤ 0.5
Twin
Triple
* For connection tubing sizes, refer to the table above.
Double-Twin
Distribution joint No. 1
Distribution tubing
Distribution joint
No. 2
Distribution joint
(purchase separately)
Main
tubing L
Main
tubing L
Main
tubing L
For refrigerant tube branches, use the optional distribution joints.
For cautions on the use of the optional distribution joints, be sure to refer to the provided instruction sheet. Also,
be careful to install them in the correct direction (orientation).
z
z
Distribution joint
SM830160-03ClassicPAC-iA4.ind321321SM830160-03ClassicPAC-iA4.ind321321 2010/02/1610:26:482010/02/1610:26:48
