8

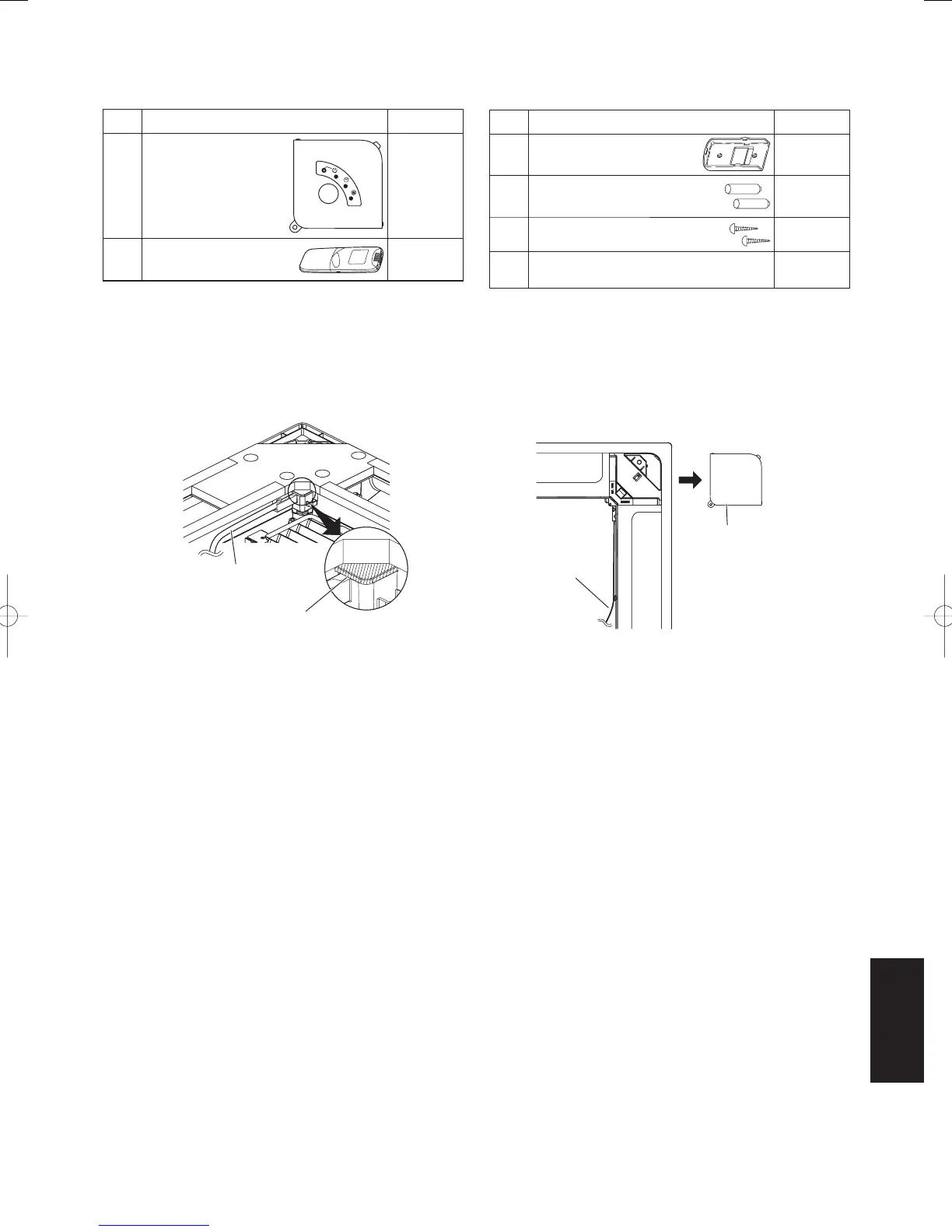

8-21. RCS-XM18BG.WL
1.Accessories
No. Accessories Quantity
1 Receiver
1
2 Remote controller 1
No. Accessories Quantity
3
Remote controller's holder
1
4 AAA alkaline batteries
2
5 Tapping screw 4x16
2
6 Clamper 1
2.Installing the Receiver Unit
As the receiver can only be installed in the corner where the panel wire comes out, as shown in Fig. 8-32,
consideration should be given to orientation when tting the panel to the indoor unit.
1. Twist off the circled area shown in Fig. 8-32 with pliers or similar.
2. Remove the suction grille and corner cover. (Fig. 8-33)
Panel wire
Break off
Panel wire
Corner cover
Fig. 8-32 Fig. 8-33
8-23
