8
1. Receiver Receives the signal sent from the
remote control.
2. Emergency
operation
button
Display lamps
When an error occurs, one of the
lamps  ashes. When a display
lamp is blinking, refer to " Before
Requesting Service ".
3. Operating lamp This lamp is lit when the unit is
operating.
4. Timer lamp This lamp is lit when the timer is
set.
5. Standby lamp • When the heater is working,
the lamp lights at the following
times. When the thermostat has
operated during defrosting at the
time of the startup.
• The lamp  ashes when an error
occurs.
6. Filter lamp This lamp is for notifying you when
the  lter needs to be cleaned.
7. Swing button
8. Normal/Stop
All switch
Use in the Normal position. It
does not operate in the Stop All
position.
Remote control, main / remote
control, secondary, switch
In normal use this should be on
remote control, main. It is also
possible to use both in conjunction
with a wired remote control (sold
separately). (Consult with the
dealer where the product was
purchased about making the
settings.)
Test/On switch
This is used during service. It is
not for normal use.
Test Run/On switch
This is used during service. It is
not for normal use.
9. Address switch Differentiate between incoming
and outgoing signals.
NOTE
• If a heat pump model is being used, it will beep twice and the operating lamp will light up on the display; if the
timer and standby lamps blink alternately, a con ict between the heating and cooling exists, so the unit cannot
operate in the desired mode.
(On models that do not have an Auto function, even if Auto is selected, it works in the same way.)
• When the local operation is disabled by such as the centralized control, and if the Start, Stop, Mode or
Temperature setting buttons are pressed, the unit will beep  ve times and the change will not be made.

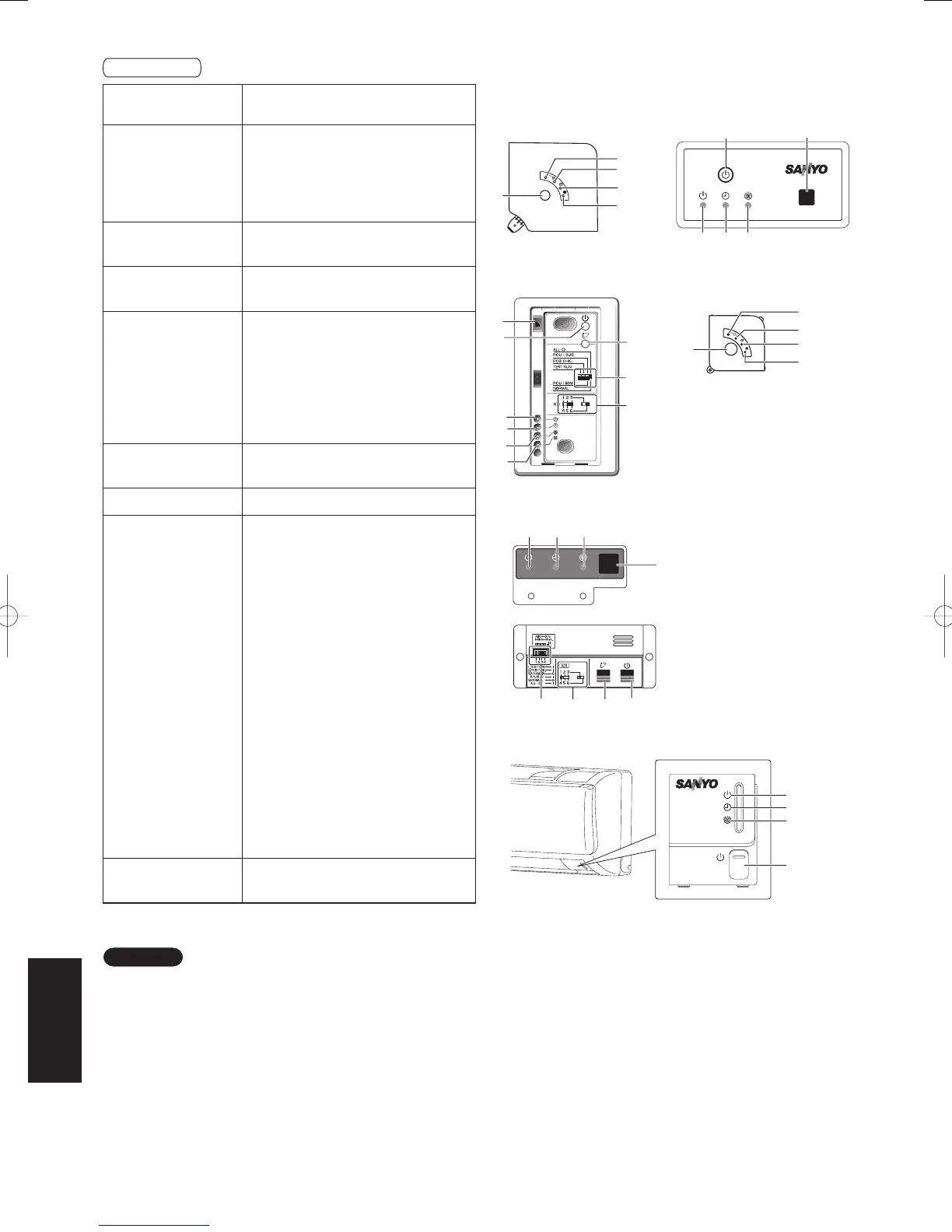

RECEIVER
RCS-SH80BG.WL
2
3
4
5
1
1
2
3
4
5
6
7
8
9
RCS-BH80BG.WL
21
345
RCS-TRP80BG.WL
RCS-SS80BG.WL
345
1
2
7
8
9
3
4
5
2
2
3
4
5
1
RCS-XM18BG.WL
Operation Panel
Display
Indoor Unit (K type)
8-4
SM830160-03ClassicPAC-iA4.ind44SM830160-03ClassicPAC-iA4.ind44 2010/02/1610:31:142010/02/1610:31:14
