4-14
4

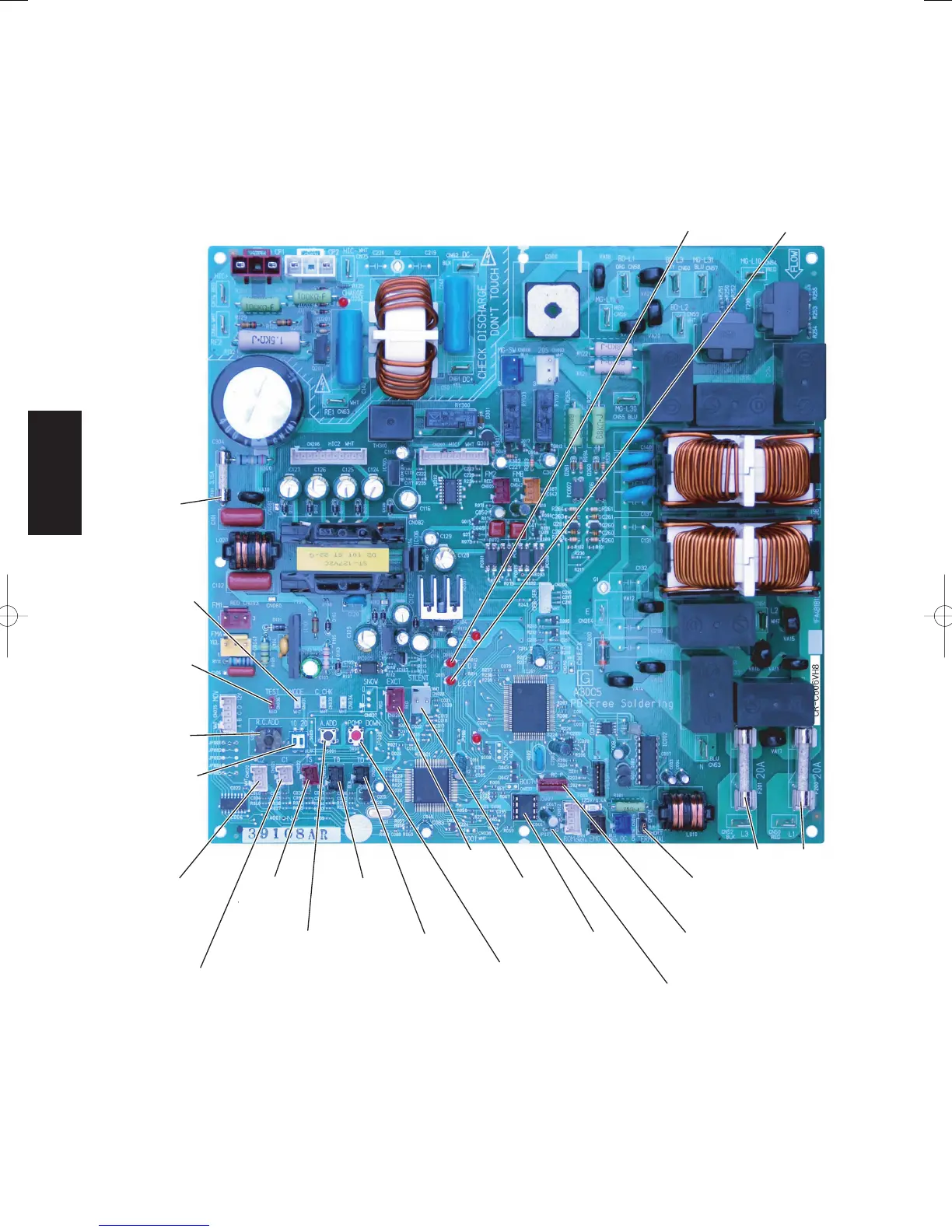

4-2. Outdoor Unit Control PCB
(5) Layout Diagram (CR-C606VH8)
Fuse
(F101)
MODE
(CN031)
TEST
(CN036)
AUTO ADD
(S001)
RC ADD
(S003)
RC ADD
(S002)
Comp discharge
temp. (TD)
Outdoor air
temp. (TO)
Suction
temp. (TS)
Sensor at lower
side of heat
exchanger (C1)
Sensor at upper
side of heat
exchanger
(C2)
EEPROM
(IC007)
JP007
EXCT
(CN026)
SILENT
(CN028)
PUMP DOWN
(S005)
LED2
RC-P
(CN032)
LED1
Termina
l
(CN015)
Fuse
(F200)
Fuse
(F201)
EXCT
Terminal
Fuse
EEPROM
Sensor at upper
side of heat
exchanger
(C2)
Sensor at lower
side
of heat
exchanger (C1)
Suction
temp.(TS)
Outdoor air
temp. (TO)
TEST
MODE
Fuse
AUTO ADD
Comp discharge
temp. (TD)
PUMP DOWN
SILENT
Fuse
