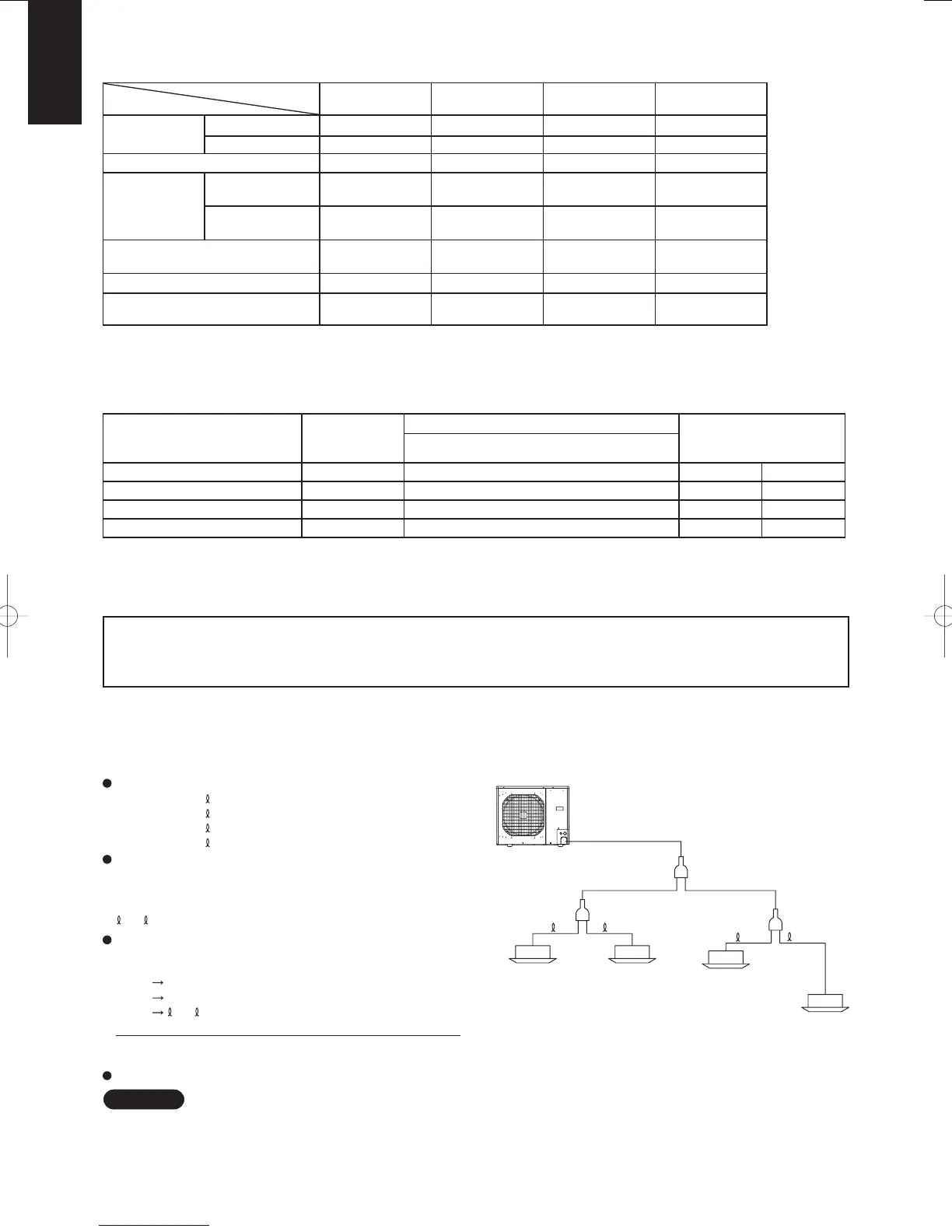

Table 1-2 Tubing Data for Models (Single)
Models
Tubing Data
SPW-C256VH
SPW-C256VH8
SPW-C366VH
SPW-C366VH8
SPW-C486VH
SPW-C486VH8
SPW-C606VH8
Tubing size outer
diameter
Liquid tube mm (in.)
9.52 (3/8) 9.52 (3/8) 9.52 (3/8) 9.52 (3/8)
Gas tube mm (in.)
15.88 (5/8) 15.88 (5/8) 15.88 (5/8) 15.88 (5/8)
Limit of tubing length (m)
50
*2
50 50 50
Limit of elevation
difference
between the 2
units
Outdoor unit is
placed higher (m)
30 30 30 30
Outdoor unit is
placed lower (m)
15 15 15 15
Max. allowable tubing length at shipment
(m)
3 – 20
/ 3 – 30 (VH8)
5 – 30 5 – 30 5 – 30
Required additional refrigerant (g/m)
40
*1
40
*1
40
*1
40
*1
Refrigerant charged at shipment (kg)
1.7 / 1.9 (VH8) 2.6 / 2.8 (VH8) 2.75 2.75
No additional charge of compressor oil is necessary.
*1
If total tubing length becomes 30 to 50 m, charge additional refrigerant by 40 g/m.
*2
In case of single connection, limit of tubing length is 50 m.
In case of twin connection, limit of tubing length is 40 m.
Table 1-3 Connection Tube Sizes
Main tubing (L)
Double-Twin distribution tube (L1, L2)
Indoor unit connection tube
(ℓ1, ℓ2, ℓ3, ℓ4)
Total type capacity of indoor unit connected after
the branch
Type capacity of indoor unit 25 - 60 25 25 - 60 12 - 18
Gas tube ø 15.88 ø 15.88 ø 15.88 ø 12.7
Liquid tube ø 9.52 ø 9.52 ø 9.52 ø 6.35
Amount of Additional change per 1 m 40 g 40 g 40 g 20 g
Change with the amount of additional refrigerant calculated using the formula below, based on the values in Table 1-3 and the
size and length of the liquid tubing
Amount of additional refrigerant charge (g) (Twin, Triple, Double-Twin)
Do not remove refrigerant from the system, even if the result of the calculation is negative.
(Use with the current refrigerant charge.)
(a) Actual length (m) of main tubing (ø9.52)
(b) Total length of distribution tubing (ø9.52)
(c) Total length of distribution tubing (ø6.35)
Refrigerant charge per 1 m of actual length = 40 g/m (25 - 60 type)
Refrigerant charge per 1 m of actual length = 40 g/m
Refrigerant charge per 1 m of actual length = 20 g/m
Additional refrigerant amount (g) = Additional refrigerant for main tubing (g) + Additional refrigerant for distribution tubing (g)
– Outdoor unit charge-less refrigerant amount (g)
= 40X (a) + 40X (b) + 20X (c) – 1200
*1
(36, 48, 60 types)
*1
In case of twin connection, 25 type of outdoor unit is 400 g.
L = 35 m
1 = 5 m
L1 = 10 m
2 = 5 m
L2 = 5 m
3 = 5 m
4 = 10 m
L : ø9.52
L1 : ø9.52
L2 : ø9.52
1 – 4 : ø6.35
ø9.52 L : 35 m × 40 g / m = 1400
ø9.52 L1 + L2 : (10 + 5) m × 40 g / m = 600
ø6.35
1 – 4 : (5 + 5 + 5 + 10) m × 20 g / m = 500
–1200
+1300
L
L1
L2
4
3
21
Example
Sample tubing lengths
Find the liquid tube size from Table 1-3.
The amount of additional on-site refrigerant charge is found
by subtracting the outdoor unit charge-less refrigerant
amount from the total charge amount for all tube size.
(48 type)
(Total type capacity of indoor unit 24)
(Total type capacity of indoor unit 24)
The amount of additional on-site refrigerant charge is 1,300 g.
For type 18, the additional refrigerant charge for tubing length (d) of 30 to 40 m is the following:
Additional refrigerant amount (g) = 20X (d) – 600
NOTE
Outdoor unit
Indoor unit (12 type x 4)
Outdoor unit charge-less refrigerant amount
Total
