On-line Confi guration Programming
Use the following procedure to select the on-line confi guration programming.
Please consult your dealer for more details.
Procedure
▼
1.

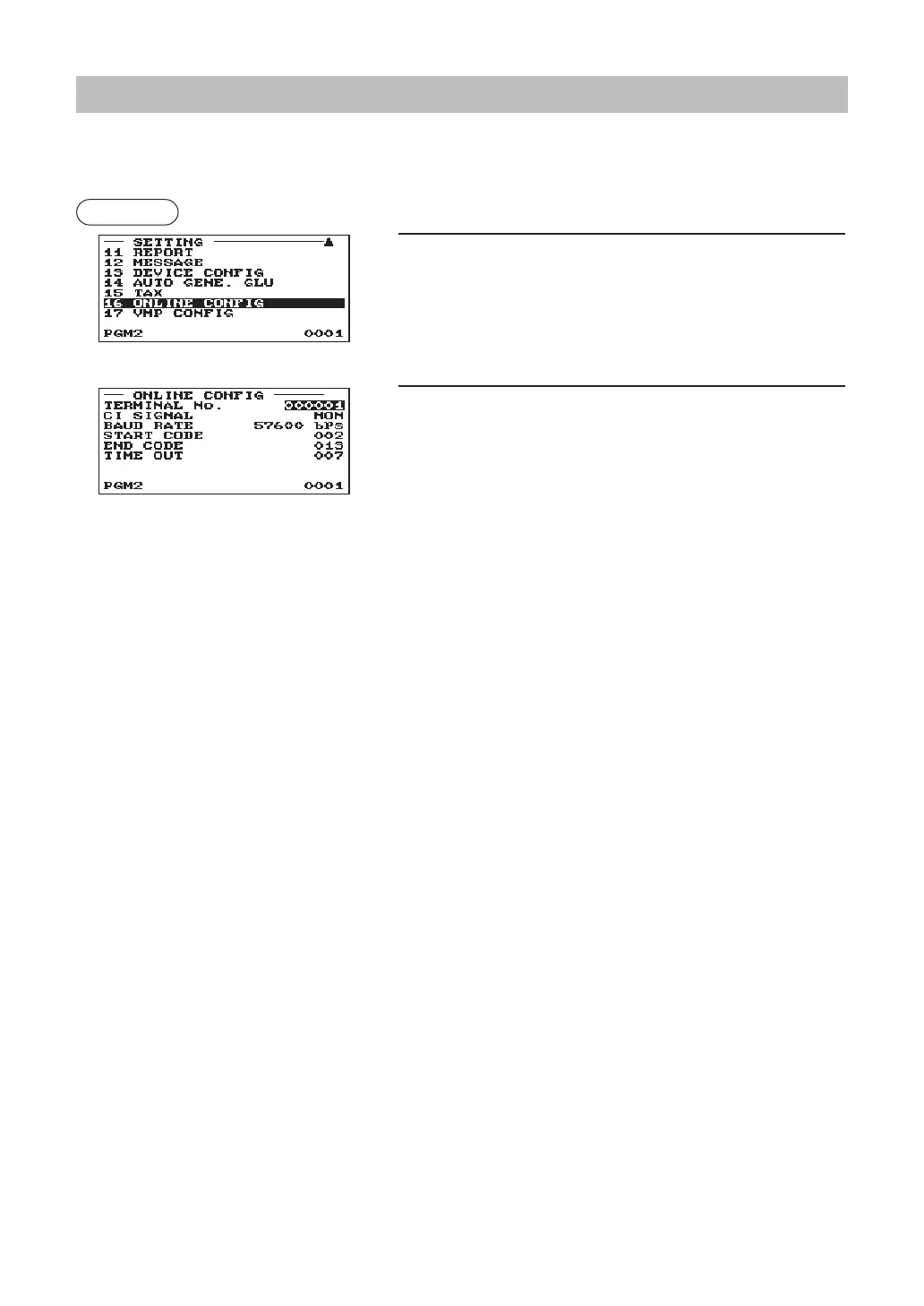

In the SETTING window, select “16 ONLINE CONFIG”.
• The ONLINE CONFIG window will appear.
2.
Program each item as follows:
• TERMINAL NO. (Use the numeric entry)
Terminal number (1 to 999999).
• CI SIGNAL (Use the selective entry)
Sensing of the CI signal
NON
SENSING
• BAUD RATE (Use the selective entry)
Transmission data rate
57600 bps 38400 bps
19200 bps 9600 bps
4800 bps
• START CODE (Use the numeric entry)
Start code (0 to 127)
• END CODE (Use the numeric entry)
End code (0 to 127)
• TIME OUT (Use the numeric entry)
Programming of the time-out time (1 to 255 sec.)
