SICK DME4000 User Manual

Operating Instructions Chapter 4
DME4000
8014584/ZN33/2017-07 © SICK AG • Germany • Subject to change without notice 85
Operation Startup

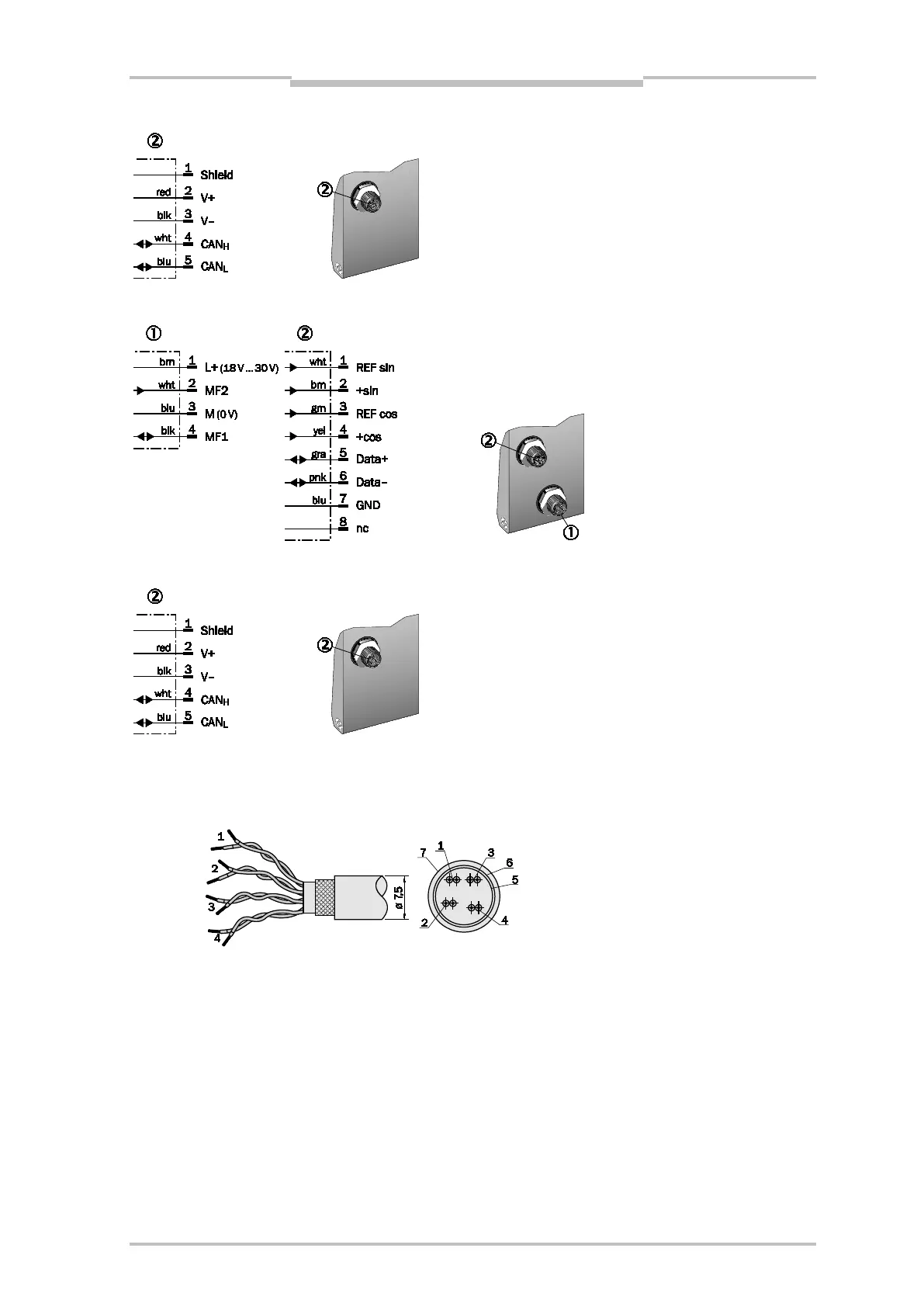

Illustration 4.8 – DME4000-xx5 Connection Diagram (DeviceNet M12 plug)
Illustration 4.9 – DME4000-xx7 Connection Diagram (Hiperface M12 plug)
Illustration 4.10 – DME4000-xx9 Connection Diagram (CANopen M12 plug)
4.2.1 Wiring Notes
Key:
1 = Wire pair blk/wht
2 = Wire pair red/vio
3 = Wire pair pnk/gra
4 = Wire pair brn/blu
5 = Insulating film
6 = Shield
7 = PUR sheathing
Illustration 4.11 – LTG-2308-MW, Part no. 6026292
Stran-
ded to
4 pairs
