PLC S7-300, CPU Specifications CPU 312 IFM to CPU 318-2 DP
A5E00111190-01
Dimensioned Drawings
Introduction
This appendix contains the dimensioned drawings of S7-300 CPUs. The
specifications in these drawings are required of you for dimensioning your S7-300
assembly. The dimensioned drawings of the other S7-300 modules and
components are contained in the Module Specifications Reference Manual.
CPU 312 IFM
Figure B-1 shows the dimensioned drawing of CPU 312IFM.
130
12080
43 23
125
130
9 25
195 with front door open

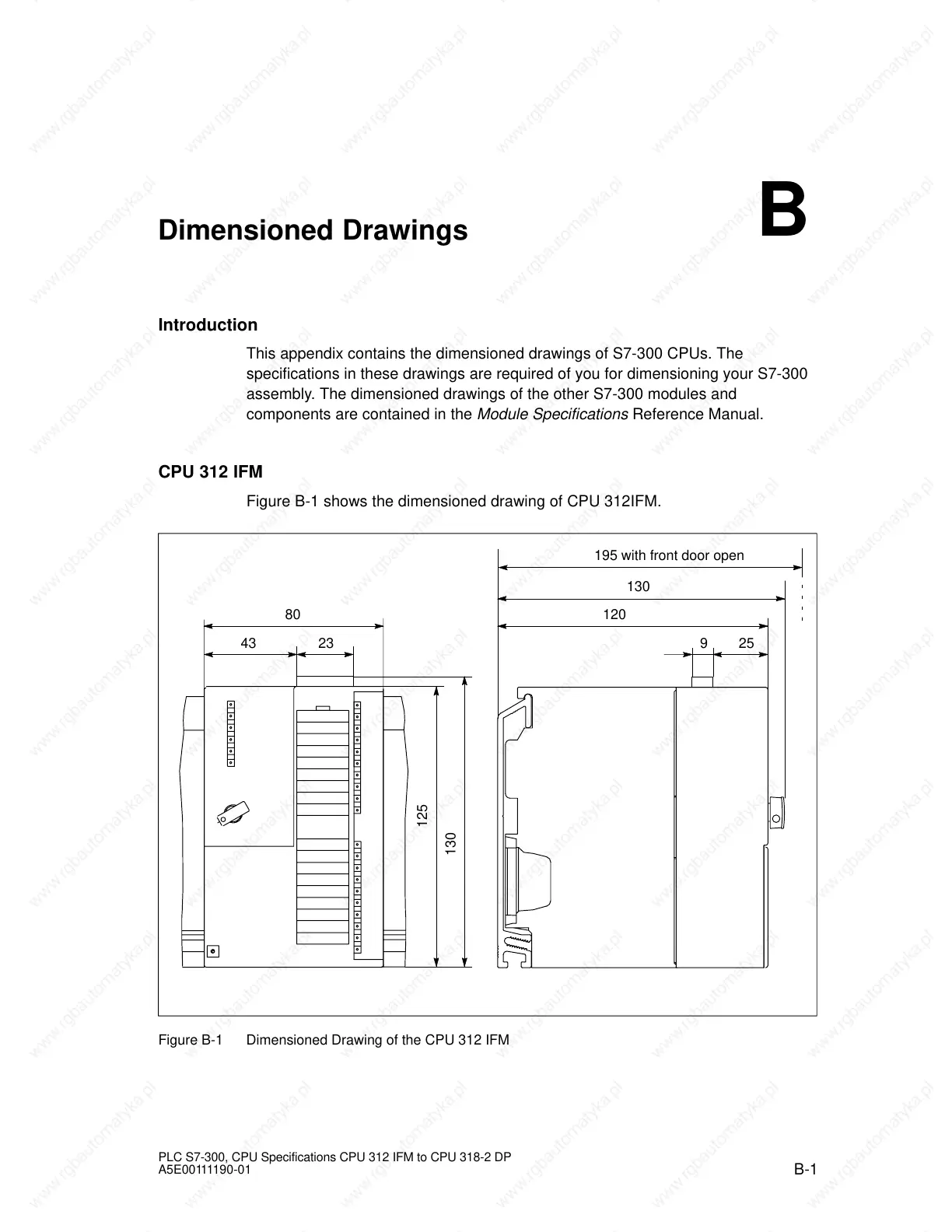

Figure B-1 Dimensioned Drawing of the CPU 312 IFM
