Siemens LMV3 series User Manual

LMV Series Technical Instructions
Document No. LV3-1000
SCC Inc. Page 9 Section 4

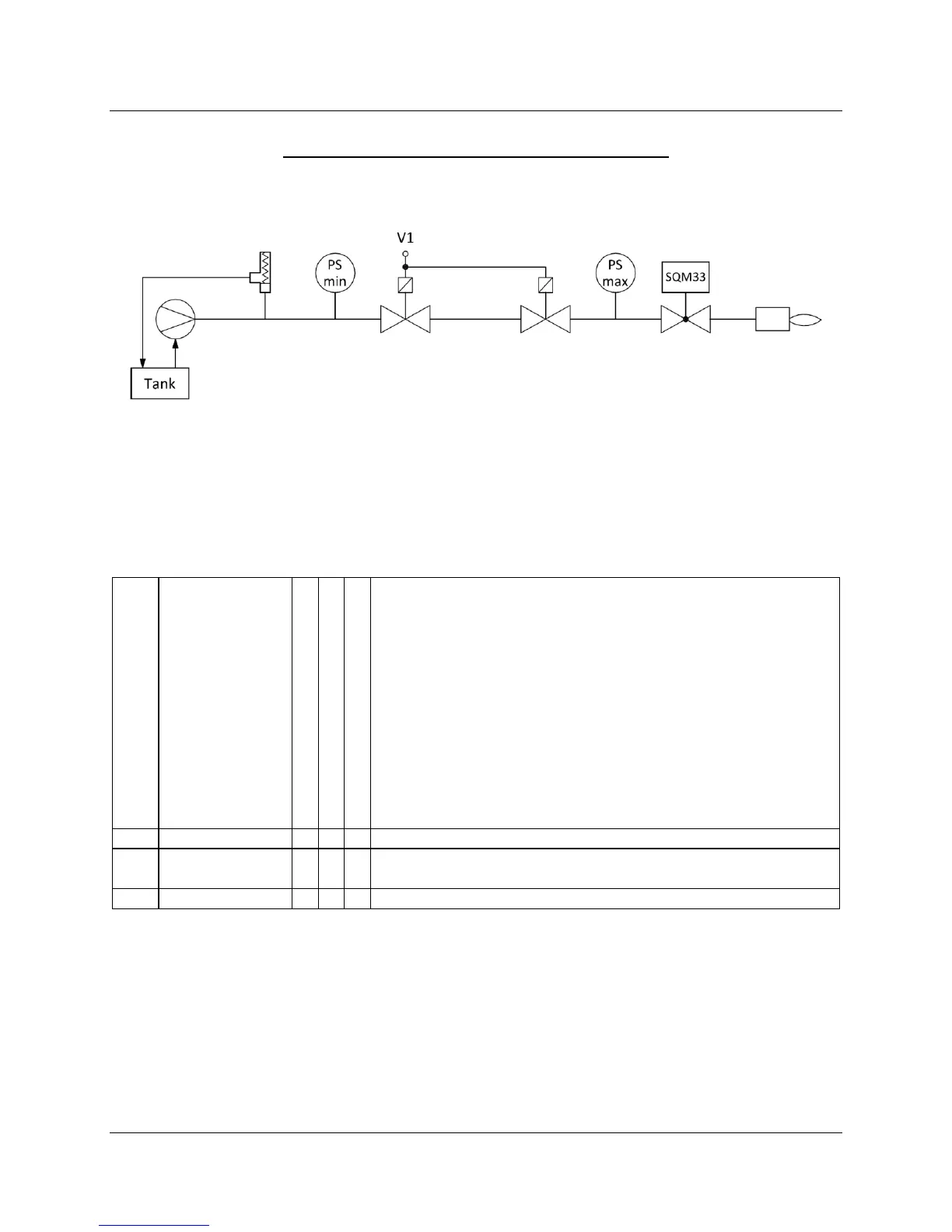

Modulating Light Oil - Direct Spark Ignition
(Fuel Train Options 4, 12, 22)
Legend:
PS
=
Pressure switch
V1
=
Oil valve (main)
V2
=
Stage 2 oil valve
Operating Mode
Parameter 201 (fuel 0) or 301 (fuel 1)
Fuel Train
Fuel Actuator
Air Actuator
VSD Speed Feedback (if activated)
Description
4 Lo mod • • •
Modulating light oil, direct ignition, electronically linked fuel-to-air ratio
12 Lo mod 2V • • •
Modulating light oil, direct ignition, electronically linked fuel-to-air ratio
(OEM specific)
22 Lo mod • •
Modulating light oil, direct ignition, electronically linked fuel-to-air ratio
