Siemens LMV3 series User Manual

Technical Instructions LMV Series
Document No. LV3-1000
Section 1 Page 8 SCC Inc.

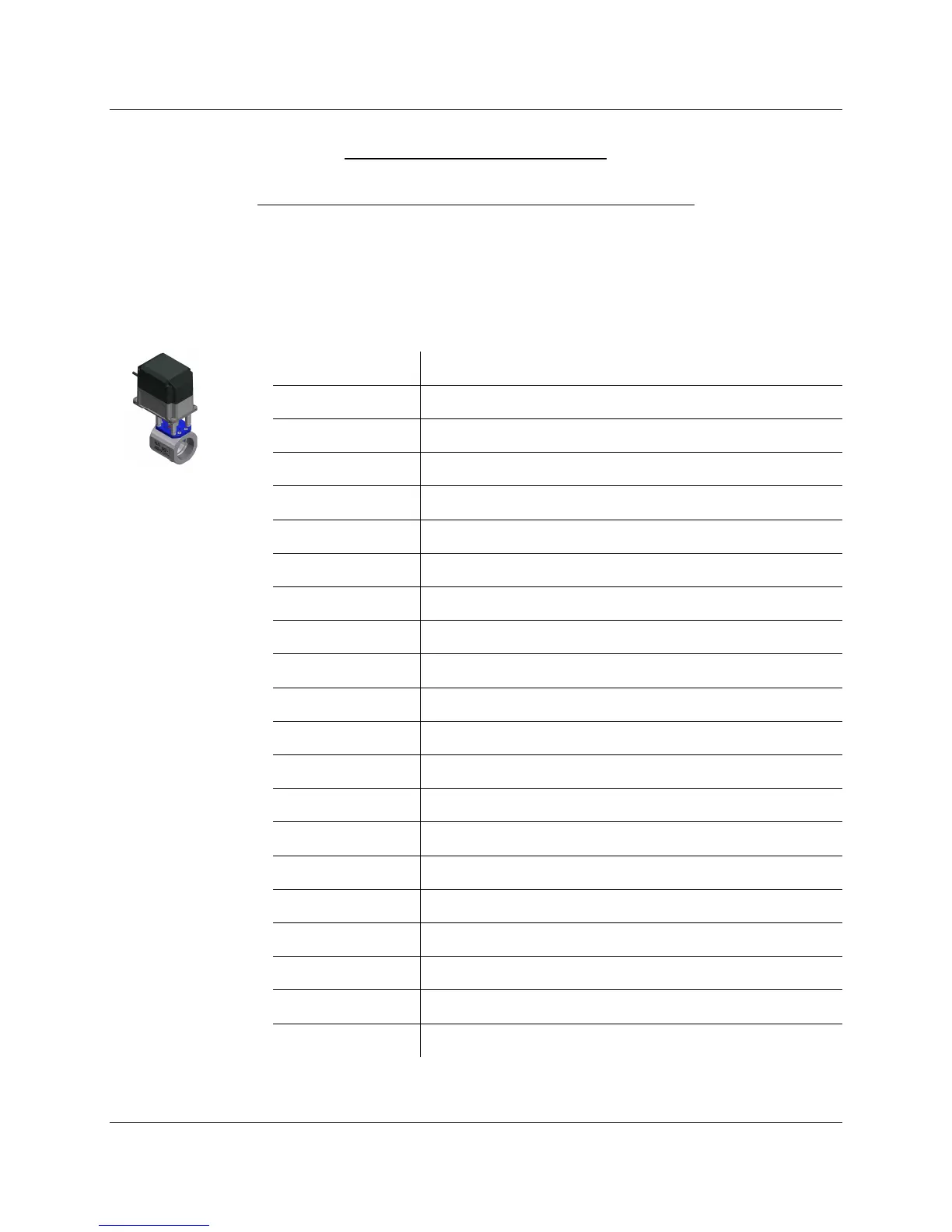

Gas Firing Rate Control Valve
Valve Actuator Assemblies – Qty (1) Required if Firing Gas
Pre-built valve actuator assemblies are available that mount an SQM33… actuator to a VKG…
gas butterfly valve. A variety of VKG… valves are available from 1/2” to 4”. For more
information about VKG… valves, refer to Document No. CVLV-2000. For more information
about valve actuator assemblies using VKG… valves, refer to Document No. VA-1000.
VA33-NF-050
SQM33 to 1/2” full port firing rate valve
VA33-NF-075
SQM33 to 3/4” full port firing rate valve
VA33-NF-100
SQM33 to 1” full port firing rate valve
VA33-NM-100
SQM33 to 1” medium port firing rate valve
VA33-NF-125
SQM33 to 1-1/4” full port firing rate valve
VA33-NM-125
SQM33 to 1-1/4” medium port firing rate valve
VA33-NF-150
SQM33 to 1-1/2” full port firing rate valve
VA33-NM-150
SQM33 to 1-1/2” medium port firing rate valve
VA33-NR-150
SQM33 to 1-1/2” reduced port firing rate valve
VA33-NF-200
SQM33 to 2” full port firing rate valve
VA33-NM-200
SQM33 to 2” medium port firing rate valve
VA33-NR-200
SQM33 to 2” reduced port firing rate valve
VA33-NF-250
SQM33 to 2-1/2” full port firing rate valve
VA33-NM-250
SQM33 to 2-1/2” medium port firing rate valve
VA33-NR-250
SQM33 to 2-1/2” reduced port firing rate valve
VA33-NF-300
SQM33 to 3” full port firing rate valve
VA33-NM-300
SQM33 to 3” medium port firing rate valve
VA33-NR-300
SQM33 to 3” reduced port firing rate valve
VA33-NF-400
SQM33 to 4” full port firing rate valve
VA33-NM-400
SQM33 to 4” medium port firing rate valve
VA33-NR-400
SQM33 to 4” reduced port firing rate valve
