Siemens LMV3 series User Manual

Technical Instructions LMV Series
Document No. LV3-1000
Section 4 Page 10 SCC Inc.

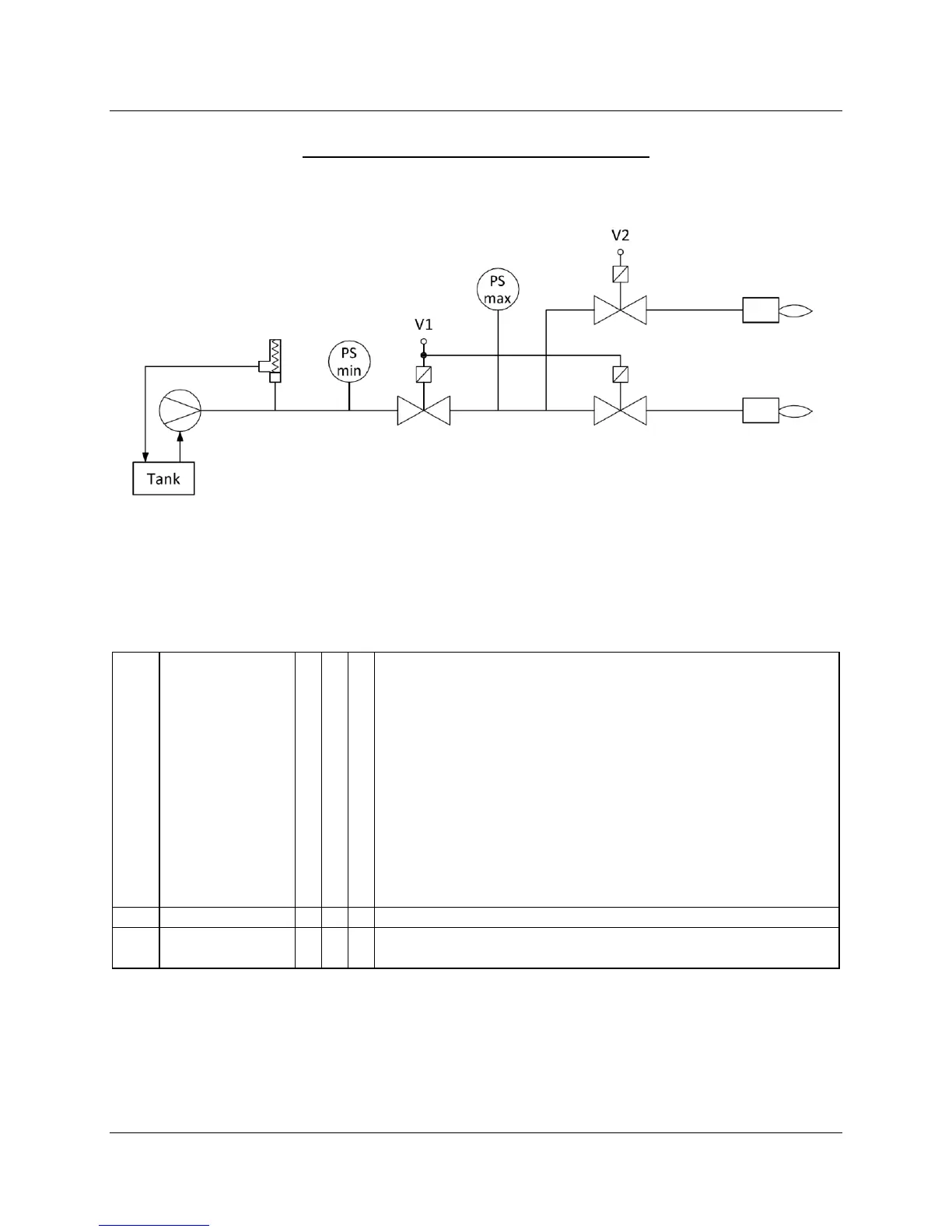

2-stage Light Oil - Direct Spark Ignition
(Fuel Train Options 5, 17)
Legend:
PS
=
Pressure switch
V1
=
Oil valve (main)
V2
=
Stage 2 oil valve
Operating Mode
Parameter 201 (fuel 0) or 301 (fuel 1)
Fuel Train
Fuel Actuator
Air Actuator
VSD Speed Feedback (if activated)
Description
5 Lo 2-stage • •
2-stage light oil, direct ignition, electronically linked fuel-to-air ratio
17 Lo 2-stage •
2-stage light oil, direct ignition, electronically linked fuel-to-air ratio,
without actuators
