Description of the device
4.2 Product groups
SCALANCE X-300
Operating Instructions, 02/2012, A5E01113043-12
59
4.2.2 Product group X-300M
Possible attachments
The SCALANCE X308-2M and X308-2M TS are partly modular devices and each has 8
ports.
● 4 fixed ports in the base device:
4 electrical RJ-45 jacks (with securing collar) for connection of end devices or other
network segments.
● 4 modular ports via module slots:
Two media modules (optical or electrical as required) can be combined using slots (S1-
S2) depending on the application. End devices and other network segments are
connected according to the media modules being used.
Note
Whe
n shipped, the slots for the media modules have a dummy cover fitted.

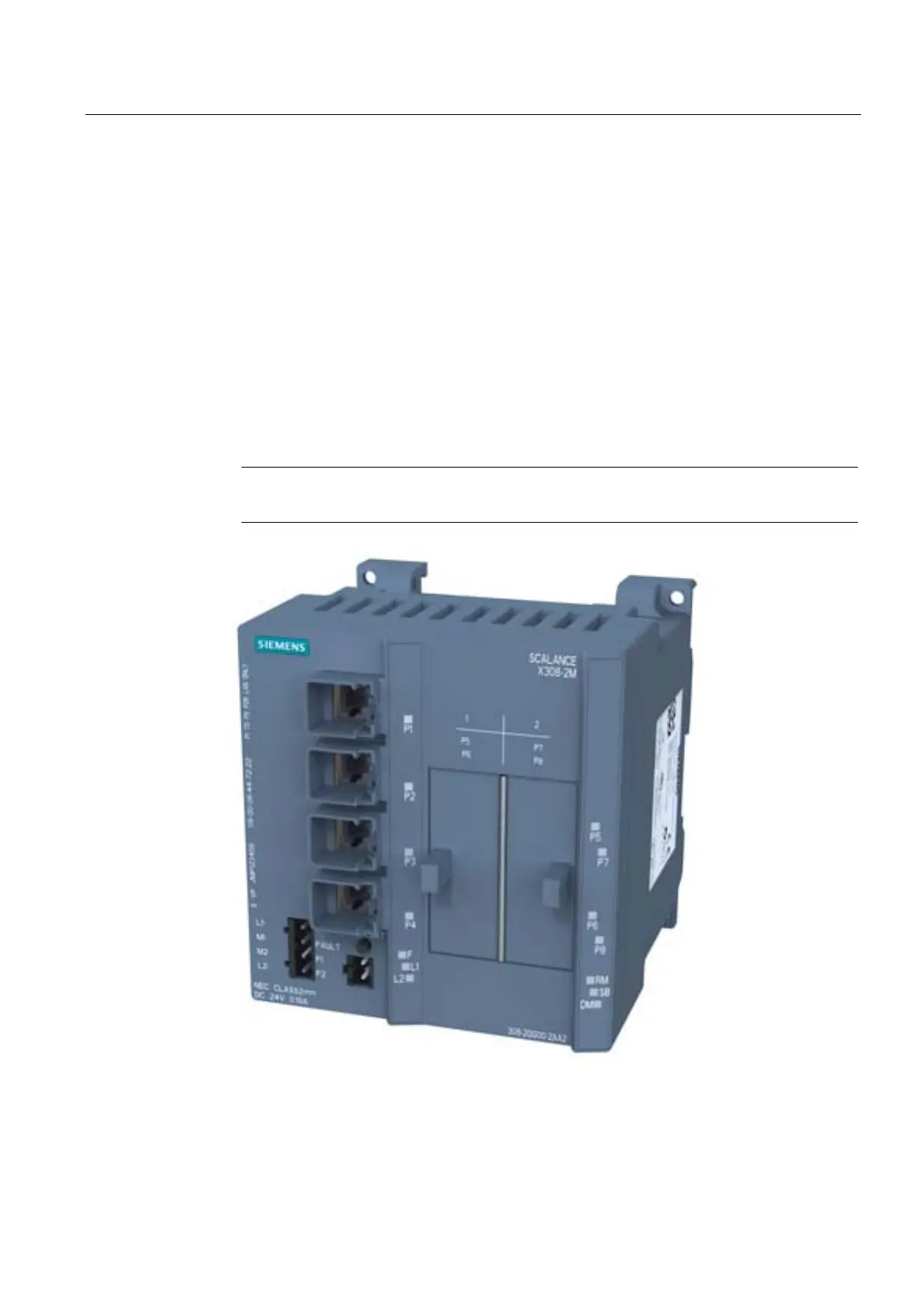

Figure 4-13 SCALANCE X308-2M with dummy covers
